5P - Policinale

Ecran motorizat lăţime 8 / 24 m

Thanks to the motorized unwinding, the 5P - Policinale screens can turn into few second a theater, an auditorium or a hall for conventions in a big hall for projections.
Vezi toate
A 5P - Policinale screen installed in the courtroom of the court of one of the main European capitals.The screen is made with the film PBL - Blackout.The projection area measures 14 x 5 m, in the photo the screen is open at a height of about 3 m.
5P - Policinale - Side engine A - Screen from 6 m to 12 m widthB - Screen from 12,5 m up to 24 m width
5P - Policinale - Central engine A - Top central engine for screens up to 12 m widthB - Central engine inside the truss for screens up to 12 m width
Panou de comanda for 5P - Policinale Standard model with fixed speed 20 cm / second 2QE - T400F_P06 - 3Φ - 400V-50Hz - for 5P - Policinale Standard equipments 1 - on / off switch2 - warning light for electric tension presence4 - safety key for the locking of the board5 - emergency stop button6 - safety key to disable the use of the controls7 / 8 / 9 - open / stop / close buttons I - input for electricity supply of the electric boardO1 - output for the electricity supply of the engine + 15 m cableO2 - output for limit switches + 15 m cable A - electronic control unit for phases to prevent the reversal of the engineB - thermal magnetic circuit breaker for overload cut-out of the engineC - configuration for insertion of external control device for control room
Panou de comanda for 5P - Policinale Optional equipments 2RC - Radiocomanda C 2RCT - Transmitter Open / Stop / Close 2RCR - External receiver
Panou de comanda for 5P - Policinale Echipamente opționale - 2QER - Panou cu butoane- 2QEP - Control pendativ la cablu- 2QEX - DMX512 controller
Palazzo Mezzanotte 5P - Policinale with PBL - Blackout Ecran pentru proiecţie fata.The projection surface measures 24 x h 6,5 m.
Structura
- grinda zabrelita de aluminiu (truss)
- tub central din aluminiu
- instalare pe tavan / pe perete / pe stăngi

Echiparea standard
a motorului
- oprire de sigutanta
- intrerupator termic magnetic de circuit pentru deconectarea la suprasarcina a motorului
Echiparea standard
a panoului de comanda
- curent electric trifazic 400 V - 50 Hz
- vitez fixa 20 cm pe secunda
- cheie de siguranta pentru blocarea panoului
- mufa pentru alimentare cu energie electrica a panoului
- mufa pentru alimentare cu energie electrica a motorului + 15 m cablu
- mufa pentru limitatoarele de cursa + 15 m cablu
- control electronic al fazelor pentru prevenirea inversarii cursei motorului
- intrerupator termo-magnetic de circuit pentru suprasarcina
- configuratie pentru adaugare ulterioara a echipamentelor de control extern
Echipare optionala
pentru panoul de comanda
- 2QER - Panou cu butoane
- 2QEP - Control pendativ la cablu
- 2QEX - DMX512 controller
- 2RC - Radiocomanda C
Certificari
- conformitate CE

Lăţimea ecranului
h la alegere
Greutate
greutatea foliei nu este inclusa
.. 8 m . . . . . . . . . .
.. 9 m . . . . . . . . . .
10 m . . . . . . . . . .
11 m . . . . . . . . . .
12 m . . . . . . . . . .
pana la 24 m
227 kg
238 kg
251 kg
262 kg
276 kg
.
Total lăţime
(lăţimea grinzii zabrelite)
- motor amplasat pe capat = lăţimea foliei + 100 cm (75+25)
- motor amplasat central = lăţimea foliei + 50 cm (25+25)

Warning:
the images on this page are indicative, the illustrated products are subject to change without notice.

Graficul de culoare

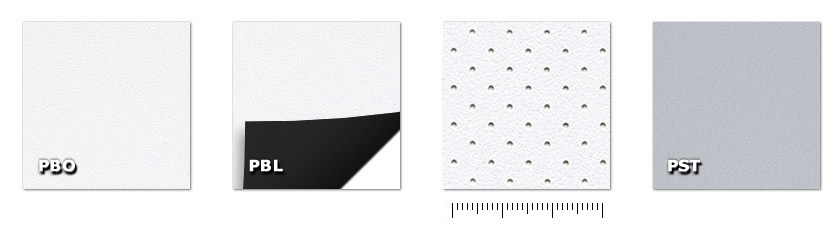

Ecrane pentru proiecţie faţă PBO - Bianco OtticoPBL-BlackoutPMI-BiancoOtticoPerforatoPST-Stormy

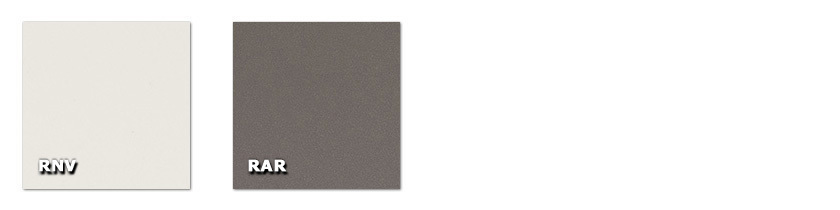

Ecrane retroproiecţie RNV - NevadaRAR-Arizona

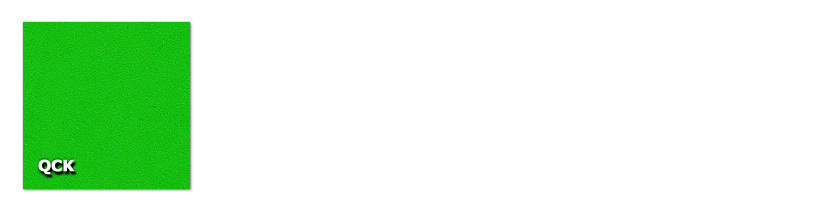

Film chroma key QCK - Cychroma
