7QX30 - Grinzi cu sectiune patrata 29 cm



7QX30 - Grinzi cu sectiune patrata 29 cm Standard lungime of linear trussesarticle - lungime ..... greutate. cm ............ kg 7QX30 T 010 - ..10,5 ......... 3,0 7QX30 T 021 - ..21 ............ 3,3 7QX30 T 025 - ..25 ............ 3,4 7QX30 T 029 - ..29 ............ 3,7 7QX30 T 050 - ..50 ............ 4,8 7QX30 T 100 - 100 ............ 7,1 7QX30 T 150 - 150 ............ 9,5 7QX30 T 200 - 200 .......... 11,8 7QX30 T 250 - 250 .......... 14,1 7QX30 T 300 - 300 .......... 16,5 7QX30 T 350 - 350 .......... 18,8 7QX30 T 400 - 400 .......... 21,2
Vezi toate

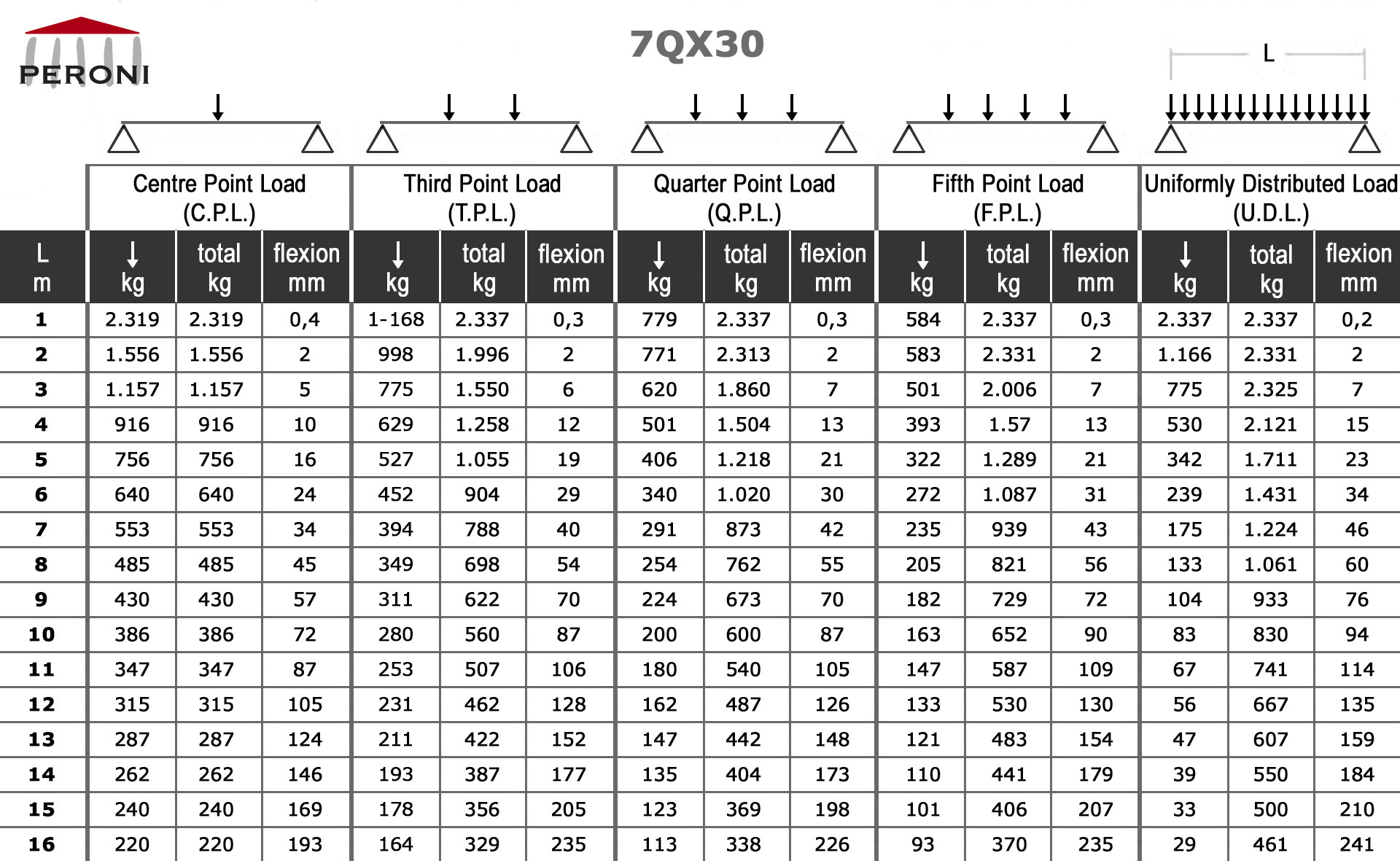

7QX30 - Grinzi cu sectiune patrata 29 cm Load table of linear trusses ↓ - Center point load↓ ↓ - Point load at 1/3↓ ↓ ↓ - Point load at 1/4↓ ↓ ↓ ↓ - Point load at 1/5↓↓↓↓↓↓↓↓↓↓↓↓ - Uniformly distributed load The load table was prepared in accordance cu UNI ENV 1999-1-1 (Eurocode9).When calculating the allowable loads shown in the table, it is assumed that the trusses are simply supported at the end connection și that static loads will be applied to the node points.The application of the load shall be on the centre line of the truss.The values shown in the table are the allowable statics loads that can be applied to the truss.This is the live load or the payload.The self greutate of the truss was taken into account when calculating the values in the table.It should be noted that these are idealised loading conditions și that the User shall re-analyze the truss for the loading conditions which prevail for the application being considered.
7QX30 - Grinzi cu sectiune patrata 29 cm b>7QX30 K 8 - Dado 6 ways-8 nodes To compose corners și intersections of manifold forms without an endowment of fixed corners.Every Dado requires a connection kit 7QX K FC for each connection between Dado și truss. 7QX K FC - Connection kit for Dado 6 ways-8 nodes The kit is formed by:n. 4 dowel pinsn. 4 split pinsn. 4 half spigots (eggs)n. 4 bolts 7TZ30 K 01 - Assembly template for Dado connection kit
7QX30 - Grinzi cu sectiune patrata 29 cm b>7QX M10 - Connection kit cu bolts - n. 8 bolts- n. 8 nuts 7QX FC - Fast connection kit - n. 8 dowel pins- n. 8 split pins- n. 4 spigots (eggs)
7QX30 - Grinzi cu sectiune patrata 29 cm1 - floor plateClamp modules 2 - short3 - for towers4 - long
7QX30 - Grinzi cu sectiune patrata 29 cmCorners 2 ways 7QX30 A L2 ADJ - adjustable from 45° to 335°
7QX30 - Grinzi cu sectiune patrata 29 cmCorner 3 ways - 90°
7QX30 - Grinzi cu sectiune patrata 29 cmT elements 1 - 3 ways2 - 4 ways Cross elements 3 - 4 ways4 - 5 ways5 - 6 ways
Cords
aluminiu extruded tube Ø 50 x 2 mm - EN AW 6082 T6
Diagonals
aluminiu extruded tube Ø 18 x 2 mm - EN AW 6082 T6
Ends
aluminiu casting plate - EN AC 42200 T6

7QX30 - Standard lungime of linear trusses
article
lungime . . . greutate
. cm . . . . . . kg
7QX30 T 010
. 10,5 . . . . 3,0
7QX30 T 021
. 21 . . . . . . 3,3
7QX30 T 025
. 25 . . . . . . 3,4
7QX30 T 029
. 29 . . . . . . 3,7
7QX30 T 050
. 50 . . . . . . 4,8
7QX30 T 100
100 . . . . . . 7,1
7QX30 T 150
150 . . . . . . 9,5
7QX30 T 200
200 . . . . . . 11,8
7QX30 T 250
250 . . . . . . 14,1
7QX30 T 300
300 . . . . . . 16,5
7QX30 T 350
350 . . . . . . 18,8
7QX30 T 400
400 . . . . . . 21,2
