7TX30 - Grinzi cu sectiune triunghiulara 29 cm



7TX30 - Grinzi cu sectiune triunghiulara 29 cm Standard lungime of linear trussesarticle - lungime ..... greutate. cm ............ kg 7TX30 T 010 - ..10,5 ......... 2,3 7TX30 T 021 - ..21 ............ 2,6 7TX30 T 025 - ..25 ............ 2,7 7TX30 T 050 - ..50 ............ 3,7 7TX30 T 100 - 100 ............ 5,4 7TX30 T 150 - 150 ............ 7,2 7TX30 T 200 - 200 ............ 9,0 7TX30 T 250 - 250 .......... 10,7 7TX30 T 300 - 300 .......... 12,5 7TX30 T 350 - 350 .......... 14,2 7TX30 T 400 - 400 .......... 16,0
Vezi toate

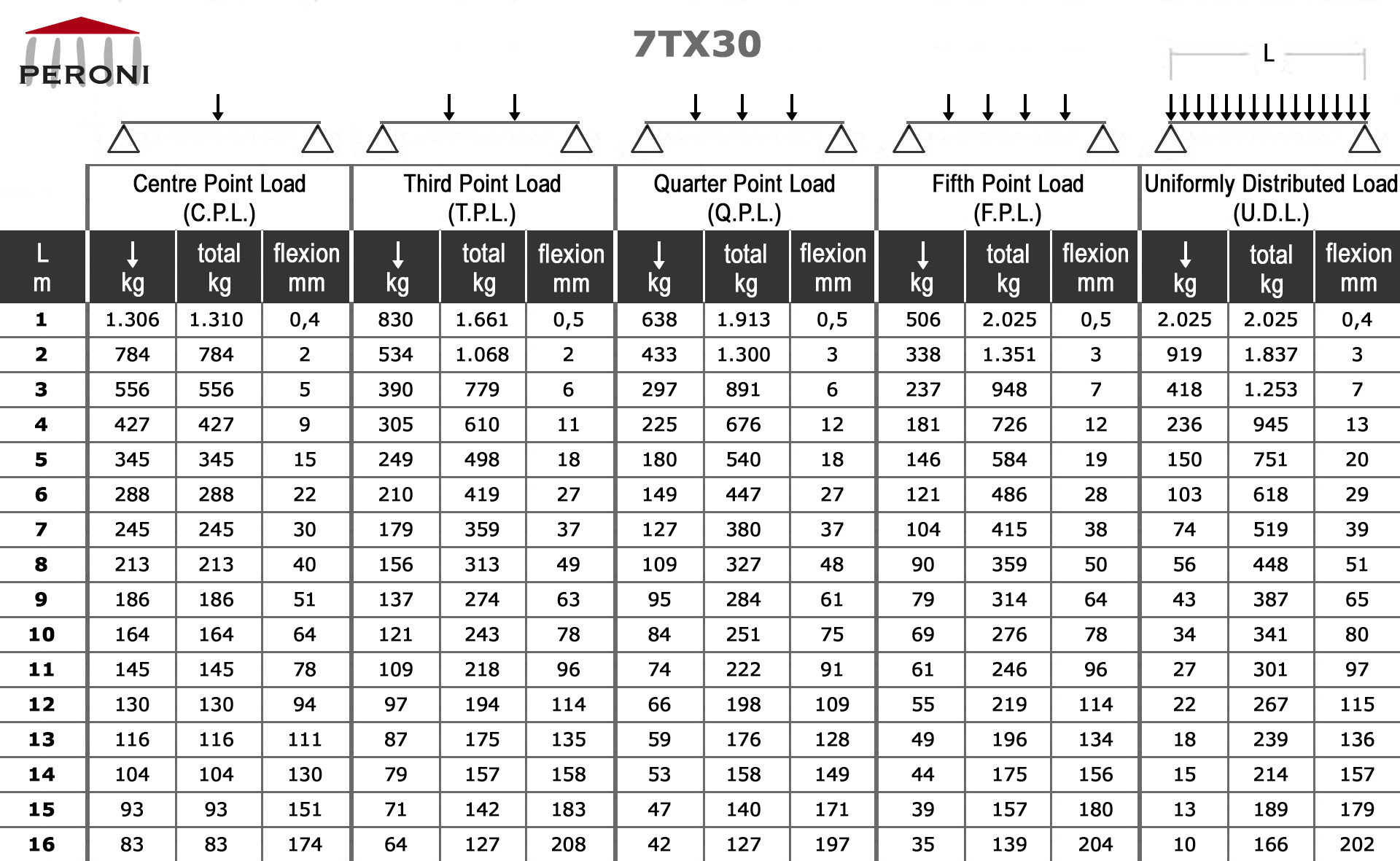

7TX30 - Grinzi cu sectiune triunghiulara 29 cm Load table of linear trusses ↓ - Center point load↓ ↓ - Point load at 1/3↓ ↓ ↓ - Point load at 1/4↓ ↓ ↓ ↓ - Point load at 1/5↓↓↓↓↓↓↓↓↓↓↓↓ - Uniformly distributed load The load table was prepared in accordance cu UNI ENV 1999-1-1 (Eurocode9).When calculating the allowable loads shown in the table, it is assumed that the trusses are simply supported at the end connection și that static loads will be applied to the node points.The application of the load shall be on the centre line of the truss.The values shown in the table are the allowable statics loads that can be applied to the truss.This is the live load or the payload.The self greutate of the truss was taken into account when calculating the values in the table.It should be noted that these are idealised loading conditions și that the User shall re-analyze the truss for the loading conditions which prevail for the application being considered.
7TX30 - Grinzi cu sectiune triunghiulara 29 cm7TX M10 - Connection kit cu bolts - n. 6 bolts- n. 6 nuts 7TX FC - Fast connection kit - n. 6 dowel pins- n. 6 split pins- n. 3 spigots (eggs)
7TX30 - Grinzi cu sectiune triunghiulara 29 cm1 - floor plateCorners 2 ways2 - 60°3 - 60° inner vertex4 - 90°5 - 90° outer vertex6 - 90° inner vertex
7TX30 - Grinzi cu sectiune triunghiulara 29 cm b>Corners 2 ways1 - 120°2 - 120° inner vertex3 - 45°4 - 135°5 - 135° inner vertex
7TX30 - Grinzi cu sectiune triunghiulara 29 cm b>Corners 3 ways1 - 90° left2 - 90° right3 - 90° left vertex up4 - 90° right vertex up
7TX30 - Grinzi cu sectiune triunghiulara 29 cm b>T elements1 - 3 ways2 - 3 ways cu link down vertex down3 - 3 ways cu link down vertex up 4 - 4 ways5 - 4 ways right vertex up6 - 4 ways left vertex up
7TX30 - Grinzi cu sectiune triunghiulara 29 cm b>Cross elements1 - 4 ways2 - 5 ways vertex down3 - 5 ways vertex up4 - 6 ways
Cords
aluminiu extruded tube Ø 50 x 2 mm - EN AW 6082 T6
Diagonals
aluminiu extruded tube Ø 18 x 2 mm - EN AW 6082 T6
Ends
aluminiu casting plate - EN AC 42200 T6

7TX30 - Standard lungime of linear trusses
article
lungime ..... greutate
. cm ............ kg
7TX30 T 010
..10,5 ......... 2,3
7TX30 T 021
..21 ............ 2,6
7TX30 T 025
..25 ............ 2,7
7TX30 T 050
..50 ............ 3,7
7TX30 T 100
100 ............ 5,4
7TX30 T 150
150 ............ 7,2
7TX30 T 200
200 ............ 9,0
7TX30 T 250
250 .......... 10,7
7TX30 T 300
300 .......... 12,5
7TX30 T 350
350 .......... 14,2
7TX30 T 400
400 .......... 16,0
