5L - Professional

Ecran motorizat lăţime 5 / 7 m

5L - Professional It is a professional motorized screen reduced to a minimum:- roller with internal axial engine- fixing brackets- screen- electric switchIt can be completed with various accessories.
Vezi toate
Lățimi standard A - Ecran: 500 / 600 / 650 / 700 cmB - Cutie = A + 30 cmC - Contragreutate = A + 5 cm1 - Alimentare standard: în dreapta2 - Lower black band: h 10 cm
Raportul de aspect 4:3 - Dimensiuni standard Dimensiunea ecr. ... Greutate ±500 x h 375 cm .......... 58 kg600 x h 450 cm .......... 68 kg650 x h 490 cm .......... 74 kg700 x h 525 cm .......... 80 kg16:9 aspect ratio is achieved by reducing with the limit switch the height of the screen with the 4:3 aspect ratio.
Fixing brackets 1 - Fixing bracket2 - Engine side fixing bracketA - M10 hole
Ways of installation 1 - Installation to ceiling2 - Installation to wallA - M10 hole
Normal endowment S - SwitchOptional 5TM∙2 - Radiocomanda with external receiver
Optionals 5TM∙4 - Radiocomanda wall pad with external receiverIt can be used in parallel with the 5TM∙2 - Radiocomanda.It comes with a frame to be fixed to the wall where you can store the remote control that can be used in that position or extracted and used as a portable remote control.
Optionals A - Black 5 cm border on the sides
5L - Professional is a motorized screen with a maximum width of 7 m.
Essential and economical, it has a visible screen winding roller, without a protective box, and is suitable for the setting up of scenographies or for particular uses in which it is needed to replace the projection support quite frequently.
However, it is also used as a fixed projection screen in medium-sized multi-purpose halls.
The 5LC - Professional C screen is its version with the roller protected by a special box.
Structure
it is entirely constituted by the winding roll din aluminum that is fixed și sustained by two special plates at the ends of the roll
Engine
silent engine 230 V - 50 Hz
power 40 Nm - consumption 322 W
speed 17 rpm - roll Ø 14 cm - lifting speed 9 cm per second
Radiocomanda (optional)
Ecran
at choice - conform Normei Europene EN 13501·1
Instalare
to ceiling / to wall / to the stage structures
Caracteristici
dimensiune personalizată prelucrarea too
maximum lăţime 7 m - maximum lifting height of the engine h 6,5 m
CE conformity

Lăţime of the ecran
h at choice
Greutate
the ecran is excluded
500 cm . . . . . . .
600 cm . . . . . . .
650 cm . . . . . . .
700 cm . . . . . . .
47 kg
53 kg
56 kg
59 kg

Total lăţime
Lăţime of the ecran + 18 cm

Graficul de culoare

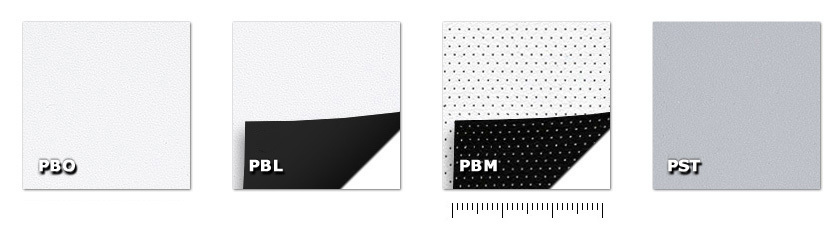

Ecrane pentru proiecţie faţă PBO - Bianco OtticoPBL-BlackoutPBM-BlackoutMicroforatoPST-Stormy

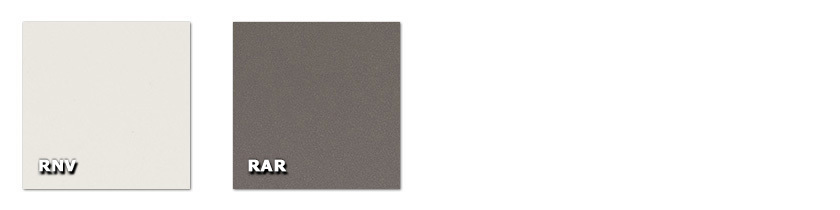

Ecrane retroproiecţie RNV - NevadaRAR-Arizona

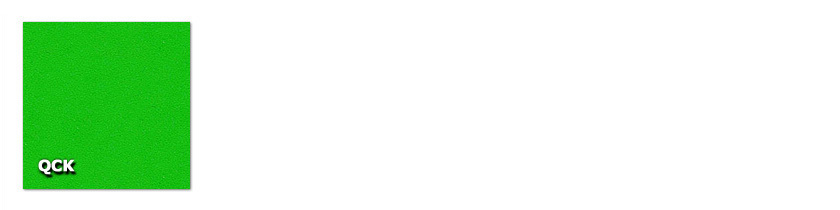

Film chroma key QCK - Cychroma
