5M - Master

Ecran motorizat lăţime 1,6 / 3 m

5M - Ecran motorizat MasterIdeal for polyvalent spaces to use occasionally as room pentru proiecție: classrooms, meeting rooms, small rooms for conferences.
Vezi toate
5M - Ecran motorizat MasterThe negru lateral edges of 5 cm, as those of the model in the image, are la cerere.
5M - Ecran motorizat Master Normal endowment - S - Switch . - Optional - 5TM 2 - Radiocomanda cu external receiver
5M - Ecran motorizat Master Optional - 5TM 4 - Radiocomanda wall pad cu external receiver It can be used in parallel with the 5TM 2 - Radiocomanda.It comes with a frame to be fixed to the wall where you can store the remote control that can be used in that position or extracted and used as a portable remote control.
5M - Ecran motorizat MasterDimensiune of the case Normal endowment - SPS - Wall / ceiling bracket
5M - Ecran motorizat Master Normal endowment - SPS - Wall / ceiling bracket 1. instalare to ceiling2. instalare to wall
5M - Ecran motorizat Master1. anterior descent (optional)2. hiding contragreutate
5M - Ecran motorizat Master Optional - KMC - False ceiling masking kit It is sold only together cu a motorized ecranContents of packagingn. 1 ''L'' short profile for right siden. 1 ''L'' short profile for left siden. 2 ''L'' long profiles n. 4 screws for fixing n. 4 threaded rodsn. 16 dice n. 2 ''C'' fixing plates for 5M - Ecran motorizat Master n. 2 ''C'' fixing plates for ceiling Least lungime hole: lungime of the case + 1,5 cmMaximum lungime hole: lungime of the case + 4,0 cm Least depth (lățime) hole: 14 cmMaximum depth (lățime) hole: 15,5 cm
Structure
case din enameled alb aluminiu
winding roll din aluminum
Engine
silent engine Somfy® 230 V - 50 Hz
power 6 Nm - consumption 90 W
speed 17 rpm - roll Ø 7 cm - lifting speed 6 cm per second
Radiocomanda (optional)
Ecran
at choice - conform Normei Europene EN 13501·1
Instalare
to ceiling / to wall / to the stage structures
Caracteristici
dimensiune personalizată prelucrarea too
maximum lăţime 3,0 m - maximum h 2,50 m
CE conformity

Lăţime of the ecran
h at choice
Greutate
the ecran is excluded
160 cm . . . . . . . . . .
180 cm . . . . . . . . . .
200 cm . . . . . . . . . .
220 cm . . . . . . . . . .
250 cm . . . . . . . . . .
300 cm . . . . . . . . . .
13 kg
14 kg
15 kg
16 kg
18 kg
20 kg

Total lăţime
of the case
lăţime of the ecran + 9 cm

Graficul de culoare

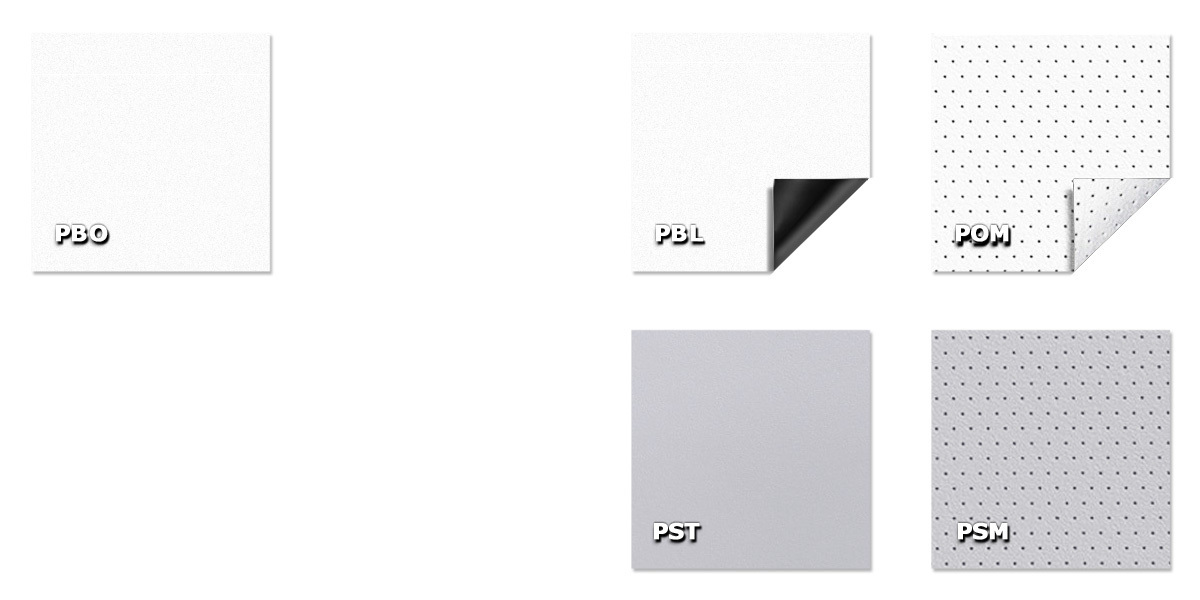

Ecrane pentru proiecţie faţăPBO-BiancoOtticoPBL-BlackoutPBM-BlackoutMicroforatoPST-Stormy
Ecrane retroproiecţieRNV-NevadaRAR-Arizona
Film per chroma keyQCK-FlimChromaKey
Țesături pentrur chroma keyARI-RIgnx340ChromaKey116. albastru117. verdeATR-ScenoPolyChromaKey10. albastru11. verde
BGO - Gobelin - pentru efecte proiecție / transparenta01. alb03. gri05. holo gri99. negruThe motorized ecrane are used in scenografie also for the wrapping of fundaluri din various fabrics (tulle, cloths, darkening fabrics, etc.), at times also painted or in digital printing.
