3E - Franghie poliester



3E - Franghie poliester cu a 4LA - Rola de deviere pod scena din lemn installed on a Podul de scena din 4DG - Grid metalic pentru pod de scena.
Vezi toate
The wooden Podul de scena of an historical Italian theatre.The picture shows the 4LR - Rola lemn (strict rola) lined up, the coil of 3C - Franghie de canepa și negru 3E - Franghie poliester hung on central structure. At the centre of the picture one can see a stage shifter intent in the operations. Teatro Amilcare Ponchielli
3E - Franghie poliester used by a system of Stangi cu pod de stangi realized with:- 4DG - Grid metalic pentru pod de scena- 4TA 2 - Rola de deviere pod scena cu 2 canale- 4LA - Rola de deviere pod scena din lemn

3E - Franghie poliester used by a system of Stangi cu pod de stangi realized with:- 4DG - Grid metalic pentru pod de scena- 4TA 2 - Rola de deviere pod scena cu 2 canale- 4LA - Rola de deviere pod scena din lemn
3E - Franghie poliester cu a 4LA - Rola de deviere pod scena din lemn installed on a Podul de scena din 4DG - Grid metalic pentru pod de scena.
Exemplu de 3E - Franghie poliester used in the realizations of Stangi manuale in a historical theatre. Teatro Sociale Bonoris
Compoziţie
100% fiber of high tenacity polyester
Construction
formed by 16 strands cu fibre cores without junctions
Caracteristici
for stagecraft applications that don't require the absence of elongation
resistance to the abrasion și the external agents
Lungimea rolei
about 200 m

Ø mm
breaking . . . . . . . . greutate
load kg . . . . . . . g / m about
. . . 6 . . . . . . . . . . . . .
. . .800 . . . . . . . . . . . . . 30
. . . 8 . . . . . . . . . . . . .
. 1.200 . . . . . . . . . . . . . 50
. . 10 . . . . . . . . . . . . .
. 1.600 . . . . . . . . . . . . . 80
. . 12 . . . . . . . . . . . . .
. 2.000 . . . . . . . . . . . . 110
. . 14 . . . . . . . . . . . . .
. 2.500 . . . . . . . . . . . . 150
. . 16 . . . . . . . . . . . . .
. 3.000 . . . . . . . . . . . . 190
. . 18 . . . . . . . . . . . . .
. 3.500 . . . . . . . . . . . . 230
. . 20 . . . . . . . . . . . . .
. 4.000 . . . . . . . . . . . . 280
the breaking load is theoretical
Comercializare
in role
with custom manufactured realizations

Culori
alb, negru (Ø 6, 8 mm)
alb, negru, various culori (Ø 10, 12, 14, 16 mm)

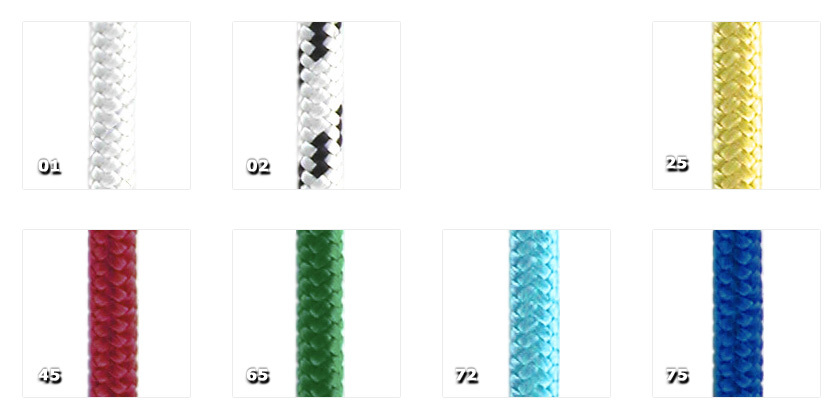

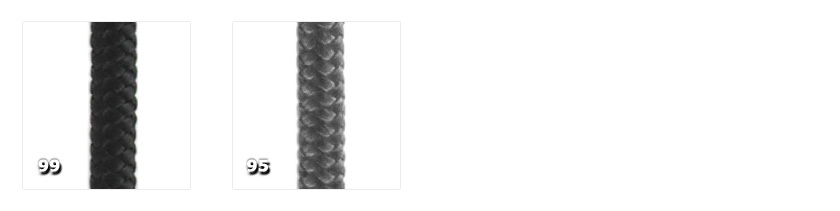

Graficul de culoare

3E - Franghie poliesterNE. negruGR. griBI. albBINE. alb / negruRO. roșuBL. albastruAZ. albastru deschis
3E - Franghie poliesterGI. galbenVE. verde
