7TX30 - Triangular trusses 29 cm



7TX30 - Triangular trusses 29 cm Linear trussDimensions of the aluminium casting plate
View all
7TX M10 - Connection kit with bolts No. 6 bolts + No. 6 nuts M10 7TX FC - Fast connection kit 3 No. 3 x 7KSG - Spigot + No. 6 x 7KSP - Conic dowel pin + No. 6 x 7KCP - Split pin
Floor plate
2 ways corners 1 - 45°2 - 60°3 - 90°4 - 120°5 - 135 °
2 ways corners inner vertex 1 - 60°2 - 90° 3 - 120°4 - 135°
2 ways corners outer vertex 90°
3 ways corners 1 - 90° left2 - 90° right3 - 90° left vertex up4 - 90° right vertex up
T elements 1 - 3 ways2 - 3 ways with link down vertex down3 - 3 ways with link down vertex up4 - 4 ways5 - 4 ways right vertex up6 - 4 ways left vertex up

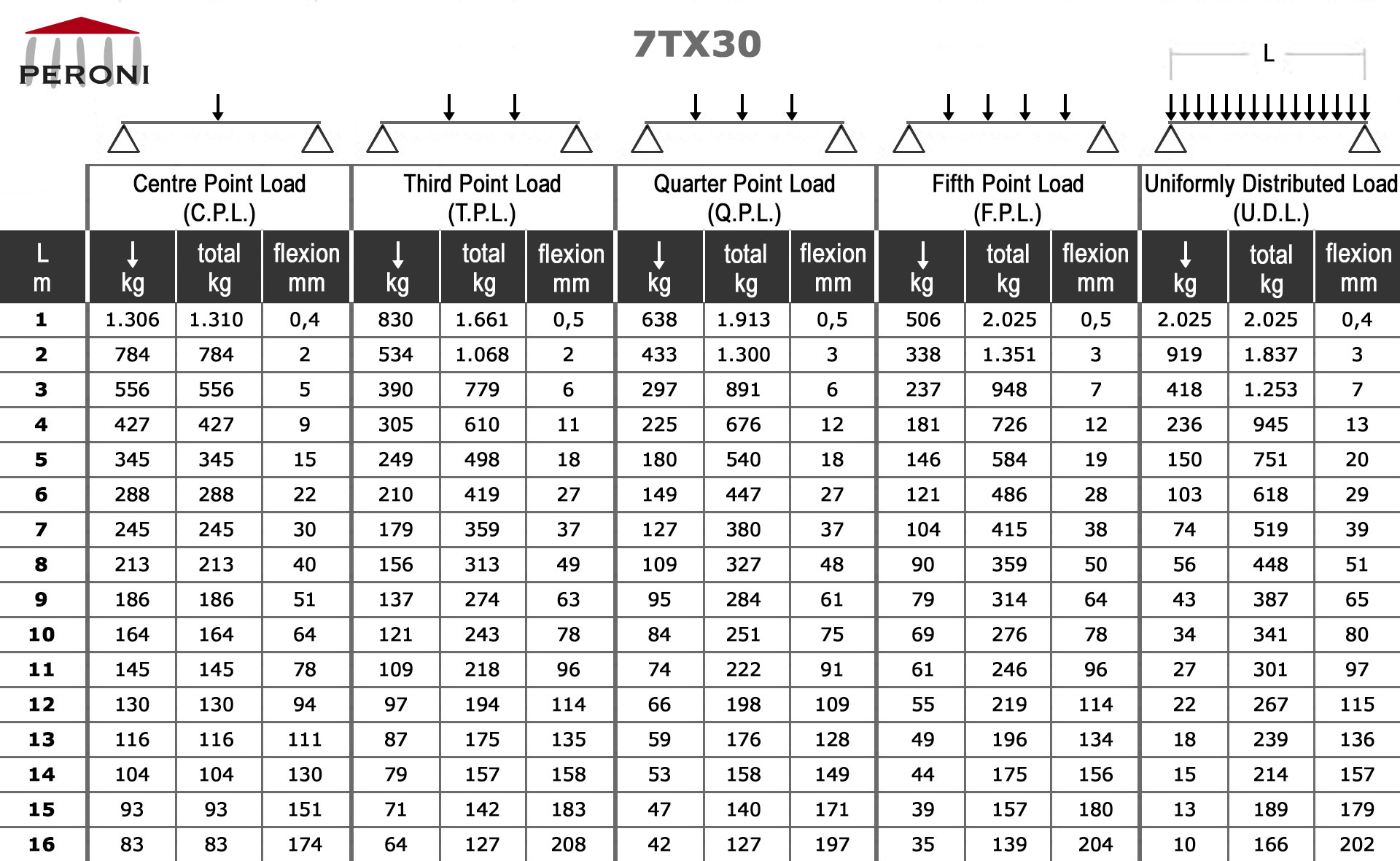

Load table of linear trusses

↓ - Center point load
↓ ↓ - Point load at 1/3
↓ ↓ ↓ - Point load at 1/4
↓ ↓ ↓ ↓ - Point load at 1/5
↓↓↓↓↓↓↓↓↓↓↓↓ - Uniformly distributed load

The load table was prepared in accordance with UNI ENV 1999-1-1 (Eurocode9).
When calculating the allowable loads shown in the table, it is assumed that the trusses are simply supported at the end connection and that static loads will be applied to the node points.
The application of the load shall be on the centre line of the truss.
The values shown in the table are the allowable statics loads that can be applied to the truss.
This is the live load or the payload.
The self weight of the truss was taken into account when calculating the values in the table.
It should be noted that these are idealised loading conditions and that the User shall re-analyze the truss for the loading conditions which prevail for the application being considered.
Cords
aluminium extruded tube Ø 50 x 2 mm - EN AW 6082 T6
Diagonals
aluminium extruded tube Ø 18 x 2 mm - EN AW 6082 T6
Ends
aluminium casting plate - EN AC 42200 T6

7TX30
Standard lengths of linear trusses
article
length ..... weight
. cm ............ kg
7TX30 T 010
..10,5 ......... 2,3
7TX30 T 021
..21 ............ 2,6
7TX30 T 025
..25 ............ 2,7
7TX30 T 050
..50 ............ 3,7
7TX30 T 100
100 ............ 5,4
7TX30 T 150
150 ............ 7,2
7TX30 T 200
200 ............ 9,0
7TX30 T 250
250 .......... 10,7
7TX30 T 300
300 .......... 12,5
7TX30 T 350
350 .......... 14,2
7TX30 T 400
400 .......... 16,0
