RAR - Arizona

Rear-projections film

RAR - Arizona The film in backlighting and with frontal lighting.A. embossed and matte viewing sideB. smooth shiny back
View all
Teatro Colón, ''Disney Magia y Sinfonía Rear-projection screen made of RAR - Arizona used by the musical medley co-produced by Disney and the Teatro Colón of Buenos Aires.It measured 22 x h 13.5 m and was used with a similarly sized RNV - Nevada screen.
Teatro Donizetti, ''L'ange de Nisida'' Two shaped Rear-illuminated backdrops, made with the RAR - Arizona film, were used to symbolically represent the sea surrounding the island of Nisida.

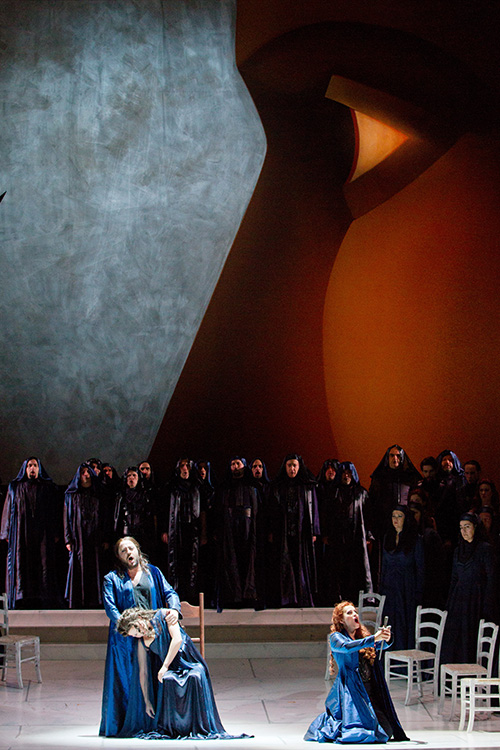

Teatro Verdi of Trieste, ''The Corsair'' Rear-projection on a Rear-projection screen ...
.. realized with the film RAR - Arizona. The rear-projection is filtered through a backdrop made of black BGO - Gobelin tulle.
Yerevan Opera Theatre, ''The Last Judgement'' The singer on the right is in front of a backdrop made of grey BGO - Gobelin tulle on which the large face is projected.The choir can be seen in transparency behind the tulle, the backlight of which is created with the slight backlighting of an RAR - Arizona 22 x h 13 m screen ...
... which here has instead been turned off, while other images are projected onto the tulle.Rear-projection screens are often used as a background with controllable brightness for tulle backdrops, with which they create a double layer of lighting: the one of the tulle in the foreground has a variable transparency while the second is backlit with variable intensity.

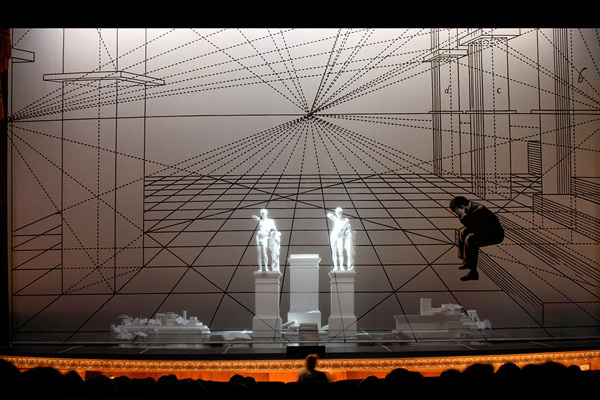

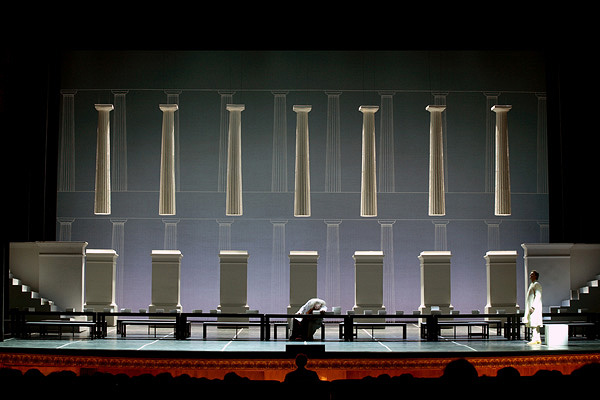

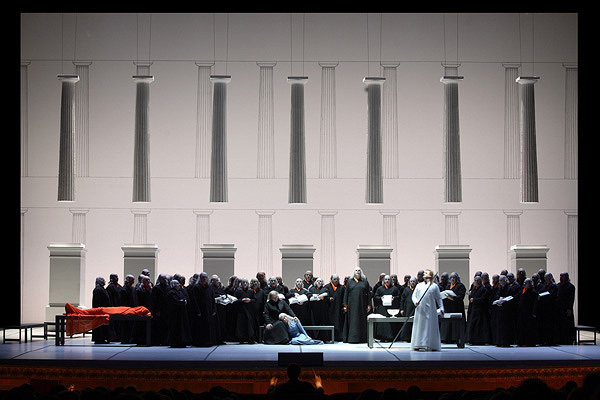

Teatro San Carlo, ''Parsifal'' Rear-illuminated backdrop manufactured with the film RAR - Arizona, the light of which ...
RAR - Arizona is a film for professional rear projection screens.
It can also be used in frontal projection.
Low transmittance and low gain provide homogeneity, high viewing angle and an optimal result in edge blending too.
It maintains a remarkable contrast and depth of blacks even in the presence of light interferences, such as those to which a theater stage is generally subjected.
It is used both for high quality video rear projections, and for simple chromatic backlighting.
It is often used as a background with variable luminosity for tulle backdrops.
It is the most versatile choice, the one that best suits the most heterogeneous.needs and situations.
Flame reaction
IFR - inherently flame retardant
FR certification
EN 13501-1 class B s1 d0
UNI 9177 class 1
NFP 92-503 class M1
NFPA 701 pass
Composition
100% PVC
Weight
435 g / m²
Thickness
0,30 mm
Width
240 cm
230 cm
Length
100 m
Packing method
rolled-up
Colours
grey
visual side embossed and matte
Note
folding could cause small whitish creases

Peak transmittance
0.52 β
Peak gain
0.41 β
Rear-projection
Rating 4.0 brightness
Rating 4.0 contrast
Rating 5.0 color fidelity
Rating 5.0 cone of vision
Rating 5.0 anti hot spot (light diffusion)
Rating 4.0 anti parasitic light (interference environmental light)
Front projection
Rating 4.5
Printability

Availabilty
by the metre (folded or rolled, max. 25 m rolls)
in full rolls
in tailor made creations

Colour chart

RAR - Arizona A. embossed matte grey (vision side)B. smooth shiny grey (back)

Video & Documentation

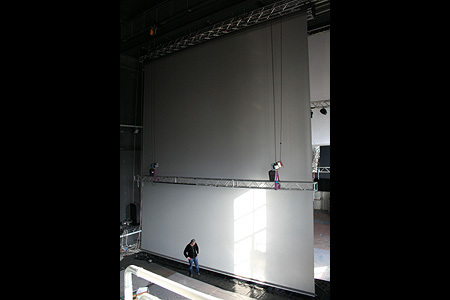

5Z - Fast take up for screens: test

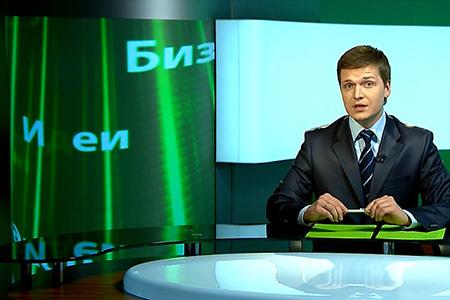

Vetta TV, small rear-projection screen

This material was used for...

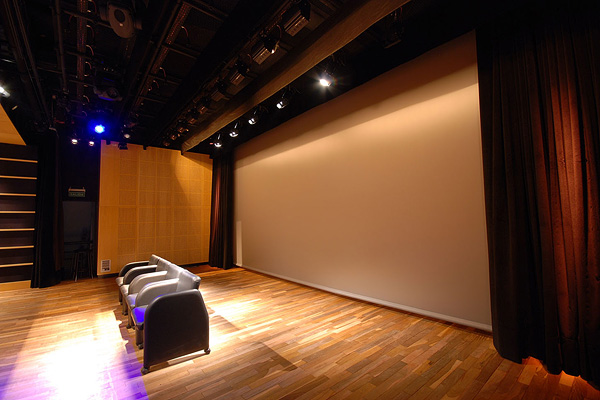

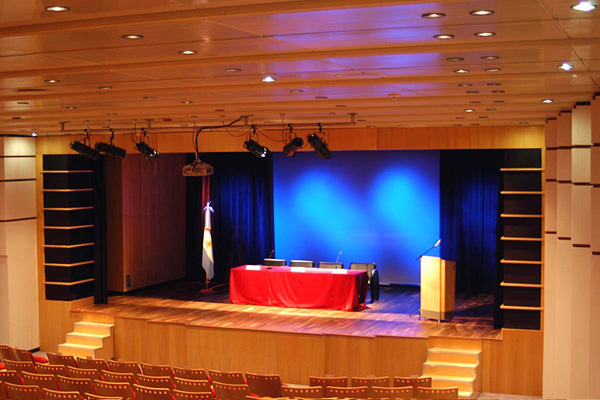

Auditorio Ministerio Rel. Exteriores

Curtains for multi-purpose settings

Limeart, ''R#5: Time+Air Dance''

Events

Nuovo Teatro, ''Azul''

Prose theatre

Teatro Colón, ''Disney Magia y Sinfonía''

Concerts

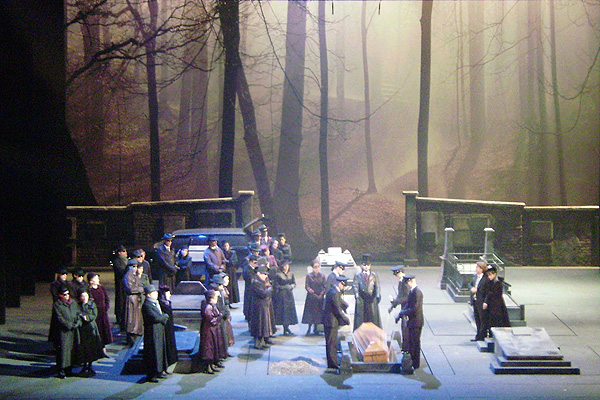

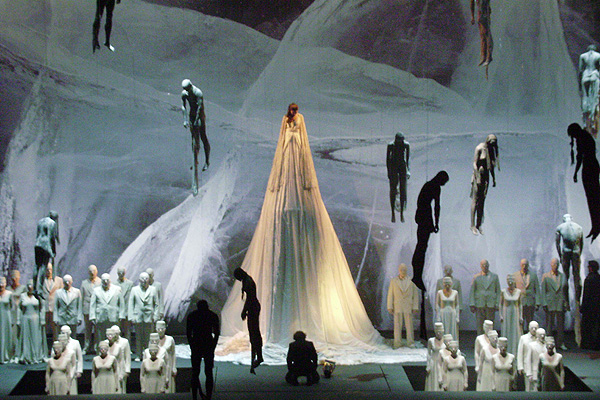

Teatro Comunale, ''Orphée et Eurydice''

Lyric opera

Teatro del Canguro, ''Cielomaresoleluna''

Theatre ''di figura''

Teatro Donizetti, ''L'ange de Nisida''

Lyric opera

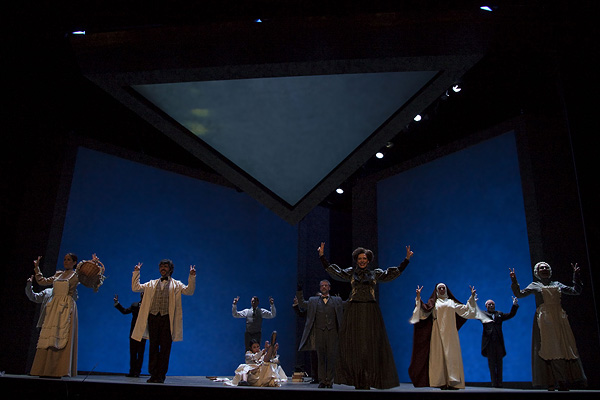

Teatro Español, ''Electra''

Prose theatre

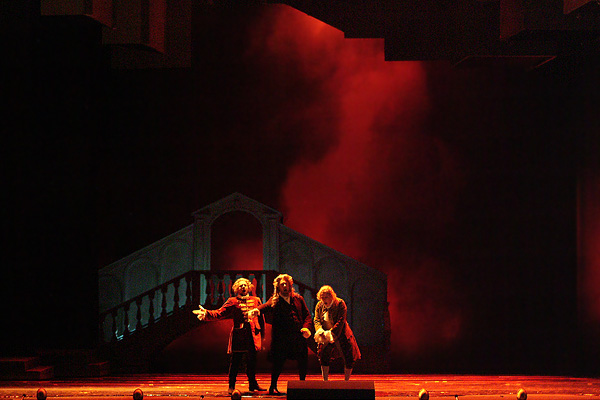

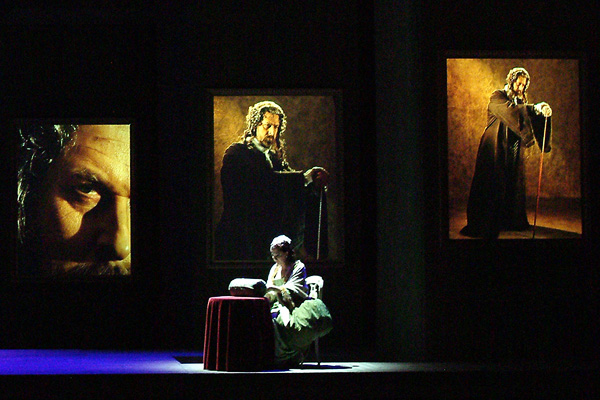

Teatro La Fenice, ''I quatro rusteghi''

Lyric opera

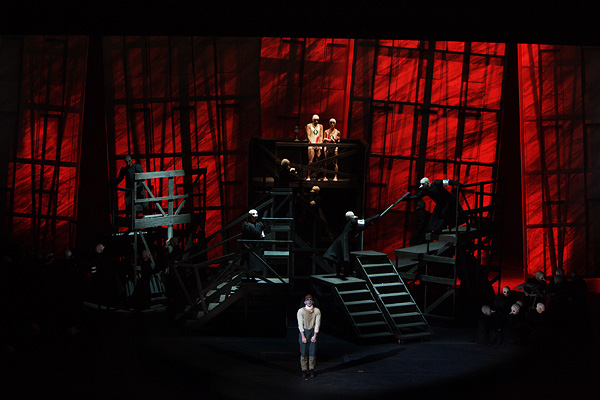

Teatro Lirico, ''Die Vögel''

Lyric opera

Teatro Moncayo

Curtains for multi-purpose settings

Teatro San Carlo, ''Parsifal''

Lyric opera

Teatro Verdi di Padova, ''Aida''

Lyric opera

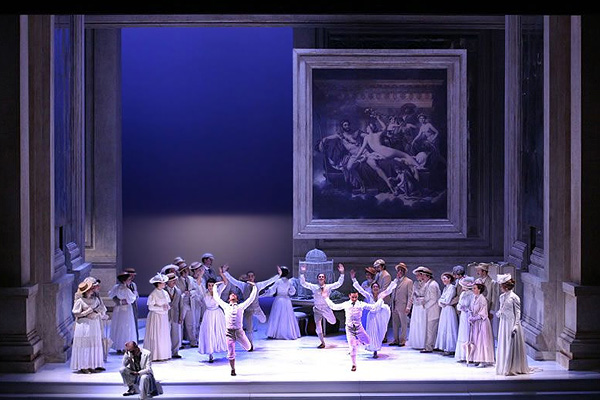

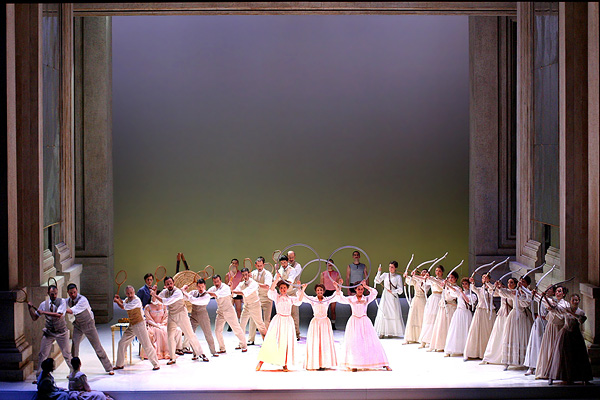

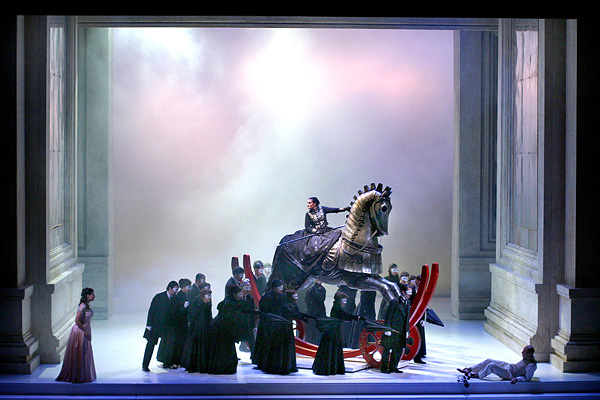

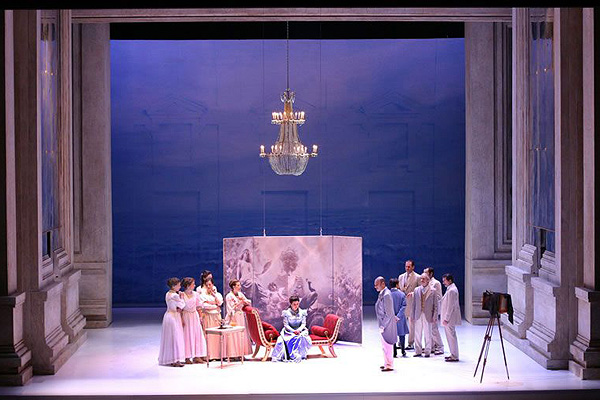

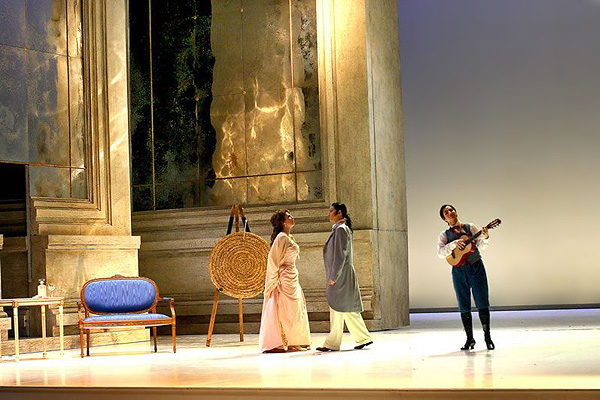

Teatro Verdi di Pisa, ''Paride ed Elena''
