5L - Professional

Motorized screen from 5 to 7 m wide

5L - Professional It is a professional motorized screen reduced to a minimum:- roller with internal axial engine- fixing brackets- screen- electric switchIt can be completed with various accessories.
View all
Standard widths A - Screen: 500 / 600 / 650 / 700 cmB - Overall size = A + 30 cmC - Counterweight = A + 5 cm1 - Standard feeding: on the right2 - Lower black band: h 10 cm
4:3 aspect ratio - Standard dimensions Screen size ........ Weight ±500 x h 375 cm ... 58 kg600 x h 450 cm ... 68 kg650 x h 490 cm ... 74 kg700 x h 525 cm ... 80 kg
16:9 aspect ratio It is achieved by reducing the height of the screen 4:3 aspect ratio with the bottom limit switch.In the same way one can obtain other aspect ratios, for example the 16:10 aspect ratio and the 2.35:1 aspect ratio.
Fixing brackets 1 - Fixing bracket2 - Engine side fixing bracketA - M10 hole
Ways of installation 1 - Installation to ceiling2 - Installation to wallA - M10 hole
Position of the screen in relation to the roll 1 - Rear drop (standard)2 - Front drop (optional)A - Projection side
Normal endowment S - SwitchOptional 5TM∙2 - Remote control with external receiver
5L - Professional is a motorized screen with a maximum width of 7 m.
Essential and economical, it has a visible screen winding roller, without a protective box, and it is suitable for integration into setting up of scenographies and for particular uses in which it is needed to replace the projection support quite frequently.
However, it is also used as a fixed projection screen in medium-sized multi-purpose halls.
The 5LC - Professional C screen is its version with the roller protected by a special box.
Structure
it is entirely constituted by the winding roll made of aluminum that is fixed and sustained by two special plates at the ends of the roll
Engine
silent engine 230 V - 50 Hz
power 40 Nm - consumption 322 W
speed 17 rpm - roll Ø 14 cm - lifting speed 9 cm per second
Remote control (optional)
Screen
at choice - flameproof European Norm EN 13501·1
Installation
to ceiling / to wall / to the stage structures
Features
custom size manufacturing too
maximum width 7 m - maximum lifting height of the engine h 6,5 m
CE conformity

Width of the screen
h at choice
Weight
the screen is excluded
500 cm . . . . . . .
600 cm . . . . . . .
650 cm . . . . . . .
700 cm . . . . . . .
47 kg
53 kg
56 kg
59 kg

Total width
width of the screen + 18 cm

Colour chart

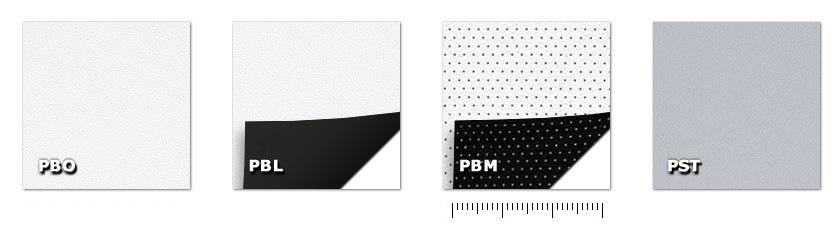

Frontal projection screens PBO - Bianco OtticoPBL-BlackoutPBM-BlackoutMicroforatoPST-Stormy

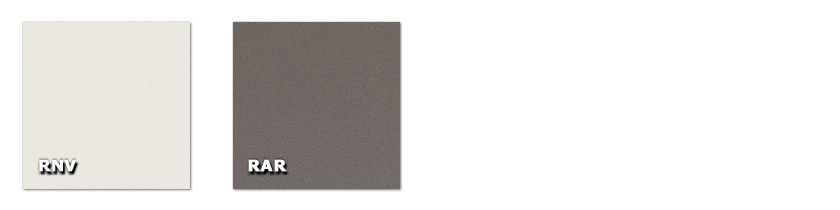

Rear-projection screens RNV - NevadaRAR-Arizona

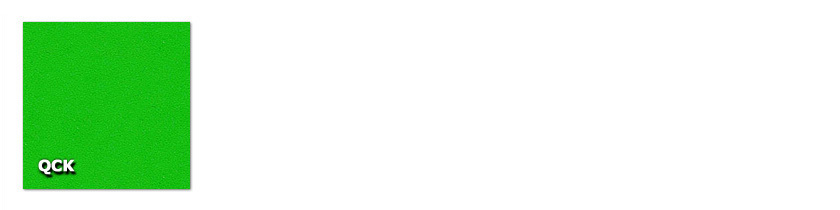

Film for chroma key QCK - Cychroma
