3E - Poly Rope

Textile polyester rope

View all

Teatro Amilcare Ponchielli The wooden Flyloft of an historical Italian theatre.The picture shows the 4LR - Wooden blocks lined up, the coil of 3C - Hemp rope and black 3E - Poly rope hung on central structure. At the centre one can see a stagehand intent in the operations.

3E - Poly rope used by a system of Fly facilities with flyloft ...

... realized with:- Metal grids for flyloft- 4TA 2 - Auto-blocking TFE pulley 2 wheels- 4LA - Auto-blocking wooden block

Teatro Sociale Bonoris Example de 3E - Poly rope used in the realizations of Manual fly facilities in a historical theatre.

The 3E - Poly rope is versatile and economical and it is used for Manual fly facilities, for track systems and for various other stagecraft applications, often resulting in the ideal compromise between price convenience and performance.
It is more extensible than 3C - Hemp rope, but this does not constitute a handicap if it is used in situations of permanent tension.
It is resistant to abrasion and external agents and it is available in various colours, thus facilitating the identification of each individual rope in fly facilities that use many hanging points.

Flame reaction

NFR - not flame retardant

Composition

100% fiber of high tenacity polyester

Construction

formed by 16 strands with fibre cores without junctions

Length per roll

about 200 m

Available colours

see colour chart

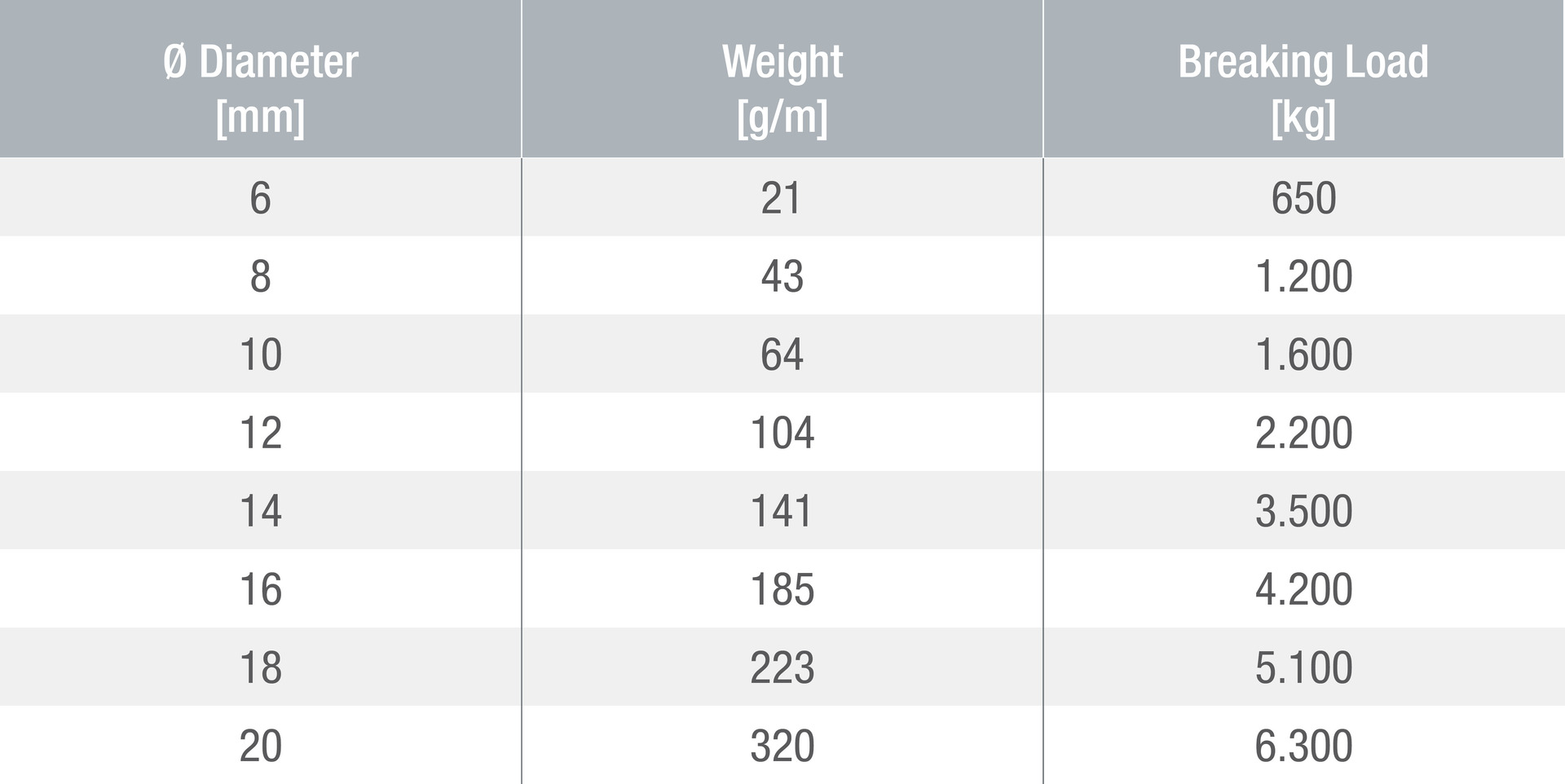

Note: the breaking load is theoretical

Availability

in full rolls
as an accessory for tailor made creations

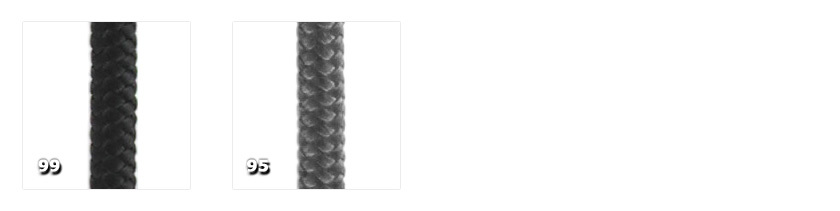

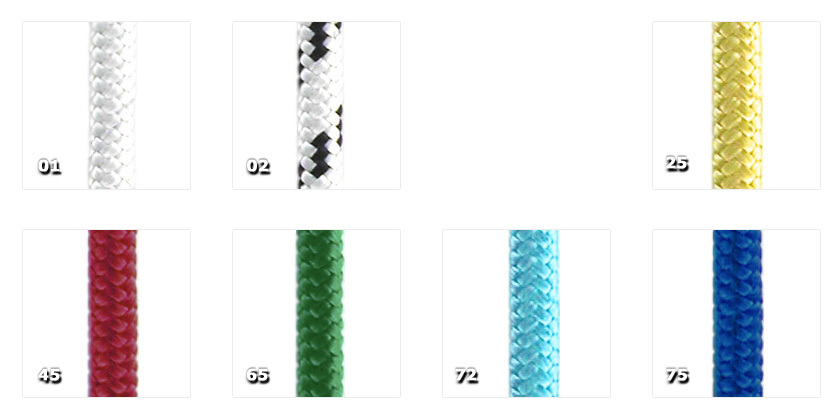

Colour chart

3E - Poly rope 01. white02. white - black25. yellow45. red65. green73. light blue75. blue

This material was used for...

Claudio Baglioni, ''Q.P.G.A.''

Concerts

Compagnia Finzi Pasca, ''La verità''

Prose theatre

Renato Zero, ''Amo Tour''

Concerts

Tableau vivant

Theatre ''di figura''

Teatro Sociale Bonoris

Curtains for historical theaters

Teatro Sociale of Canzo

Curtains for historical theaters
