5M - Master

Motorized screen from 1,6 to 3 m wide

5M - Master Ideal for polyvalent spaces to use occasionally as room for projections: classrooms, meeting rooms, small rooms for conferences.Standard widths:A - Screen: 160 / 180 / 200 / 220 / 250 / 300 cmB - Box = A + 9 cmC - Counterweight = A + 4 cm1 - Standard feeding: on the right
View all
1:1 aspect ratio - Standard dimensions Screen size ........ Weight ±160 x h 160 cm ...... 15 kg180 x h 180 cm ...... 16 kg200 x h 200 cm ...... 18 kg220 x h 220 cm ...... 20 kg250 x h 250 cm ...... 23 kg
4:3 aspect ratio - Standard dimensions Screen size ........ Weight ±160 x h 120 cm ... 14 kg180 x h 135 cm ... 15 kg200 x h 150 cm ... 17 kg220 x h 165 cm ... 19 kg250 x h 190 cm ... 22 kg300 x h 225 cm ... 25 kg
16:10 aspect ratio - Standard dimensions Screen size ........ Weight ±160 x h 100 cm ... 14 kg180 x h 112 cm ... 15 kg200 x h 125 cm ... 17 kg220 x h 137 cm ... 19 kg250 x h 156 cm ... 22 kg300 x h 187 cm ... 25 kg16:10 aspect ratio can also be achieved by reducing with the limit switch the height of a screen with 4:3 aspect ratio.
16:9 aspect ratio - Standard dimensions Screen size ........ Weight ±160 x h . 90 cm ... 14 kg180 x h 101 cm ... 15 kg200 x h 112 cm ... 17 kg220 x h 124 cm ... 19 kg250 x h 140 cm ... 22 kg300 x h 169 cm ... 25 kg16:9 aspect ratio can also be achieved by reducing with the limit switch the height of a screen with 4:3 aspect ratio or 16:10 aspect ratio.
Case size Fixing bracket A - M6 hole
Ways of installation 1 - Installation to ceiling2 - Installation to wallS - Rear drop (standard)O - Front drop (optional)
Normal endowment S - SwitchOptional 5TM∙2 - Remote control with external receiver
Structure
case made of enameled white aluminium
winding roll made of aluminum
Engine
silent engine 230 V - 50 Hz
power 6 Nm - consumption 137 W
speed 17 rpm - roll Ø 7 cm - lifting speed 6 cm per second
Remote control (optional)
Screen
at choice - flameproof European Norm EN 13501·1
Installation
to ceiling / to wall / to the stage structures
Features
custom size manufacturing too
maximum width 3,0 m - maximum h 2,50 m
CE conformity

Width of the screen
h at choice
Weight
the screen is excluded
160 cm . . . . . . .
180 cm . . . . . . .
200 cm . . . . . . .
220 cm . . . . . . .
250 cm . . . . . . .
300 cm . . . . . . .
13 kg
14 kg
15 kg
16 kg
18 kg
20 kg

Total width
of the case
width of the screen + 9 cm

Colour chart

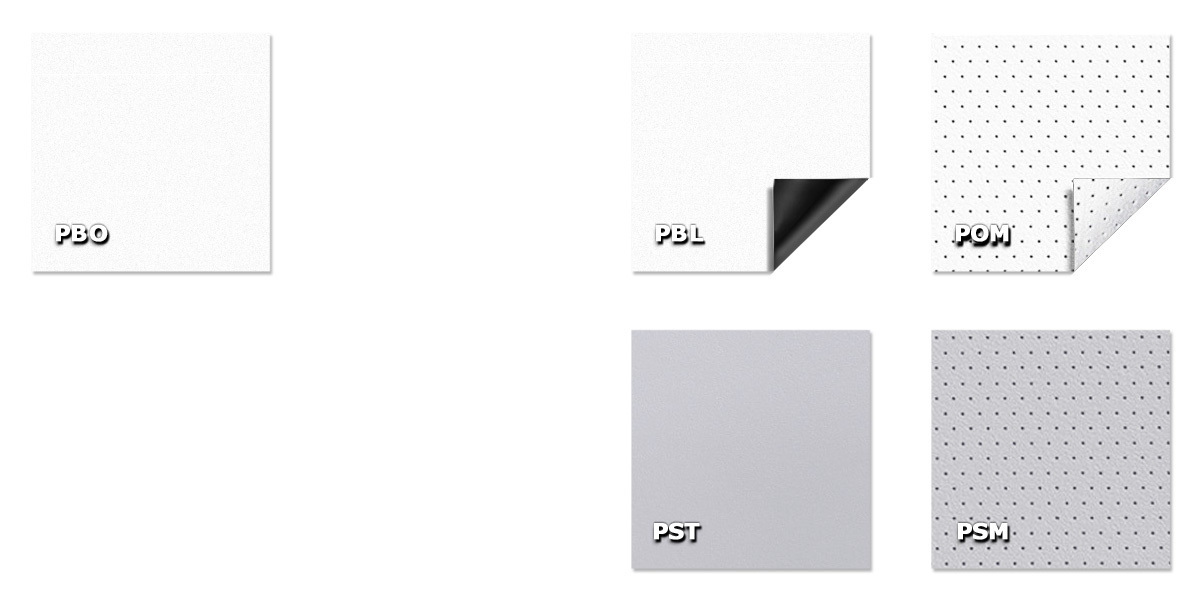

Frontal projection screens PBO - Bianco OtticoPBL-BlackoutPBM-BlackoutMicroforatoPST-Stormy
Rear-projection screens RNV - NevadaRAR-Arizona
Film for chroma key QCK - Cychroma
