1M - Mini



Mini - Track system 1MB - Mini Track profile in matt black anodized aluminium600 cm bars1MBP - Mini pre-drilled rail profile made of matt black anodized aluminiumwith holes for fixing with screws600 cm bars
View all

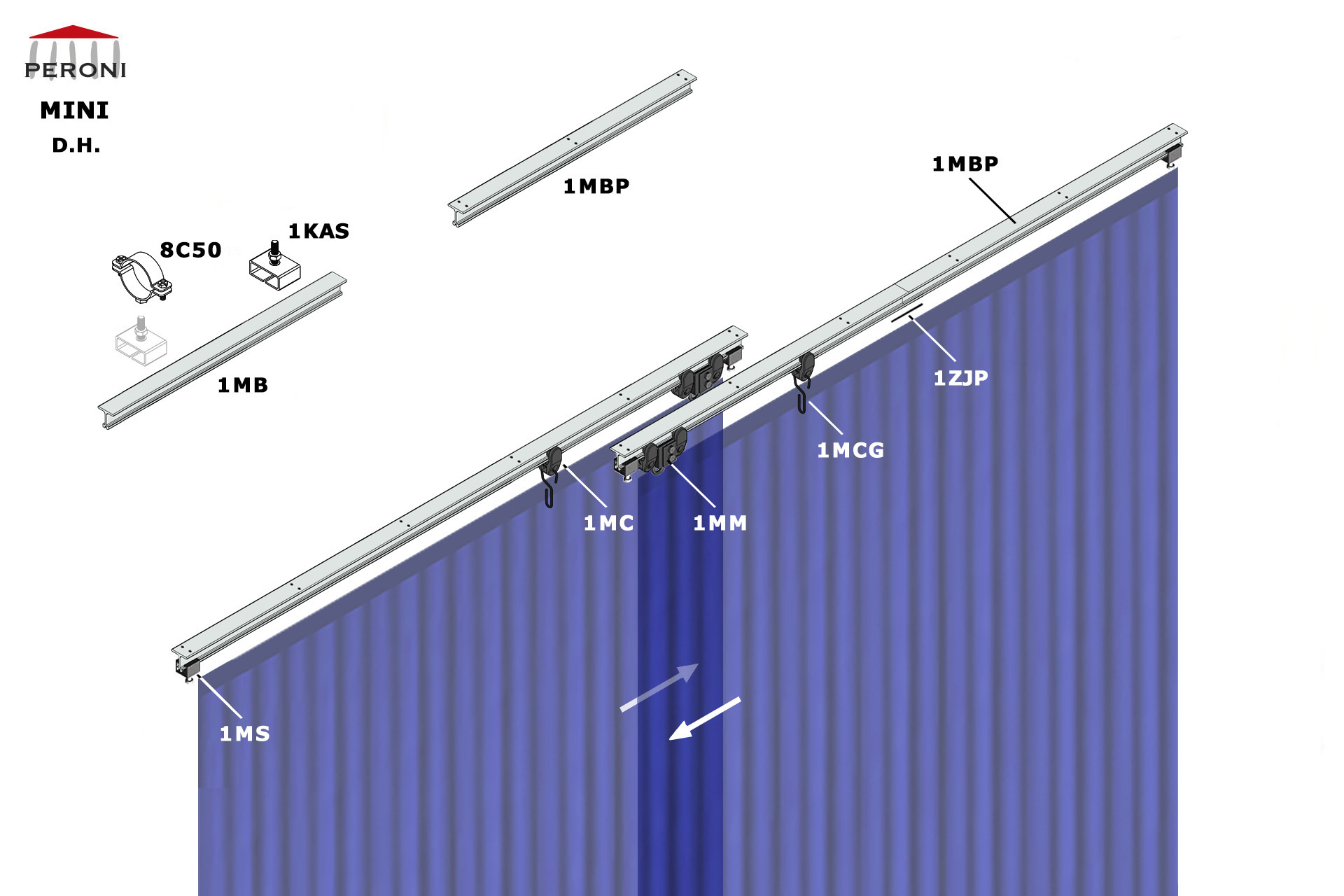

1MBP - Mini pre-drilled rail - Examples of fixing 1 - Fixing to ''L'' plates with screws and bolts2 - Fixing to ceiling with wall plugs3 - Fixing to Cantinelle with screws for wood1MC - Sliding carrier with 2 wheels 1MCG - Hanger for sliding carrier
1MC - Sliding carrier with 2 wheels + Hangerr - capacity: 2 kg- made of special plastic + metal hanger1MCG - Hanger for sliding carrier - made of black burnished steel1MM - Dragging carrier with 4 wheels - capacity: 4 kg- wheels made of special plastic- frame made of black enameled iron
1MAG - Connection for joints - made of anodized aluminum1ZJP - Joint pin (10 pieces packs) - made of steel1MS - End stop - made of black anodized aluminum
1MB - Mini Track - Fixing exemple 8C50 - Clamp Ø 50 mm + M8 nut 1KAS - Connection for suspension
1MB - Mini Track - Fixing exemple 1ZT - Hook Clamp for Ø 48-51 mm tube Not included, to be specified in case of order:- No. 1 Allen screw M8 40 mm- No. 1 nut M8- No. 2 washers Ø 8-24 mm- No. 1 1KAS - Connection for suspension
The minimum curve radius for Mini rail system is 30 cm.
Teatro San Costanzo Example of use of Mini track systems for the hall draperies of a small theatre.
Application
Mini is a modular track system for:
- small Traveller curtains and scenography veils
- light hall theater curtains
- for simple and limited needs
Key features
- simple and fast assembly
- noiseless
- very low clearance profile
- economy
- reliability
Rail
- extruded aluminium profile
- black anodized finishing
- 340 g / m weight
- 600 cm max bar length
- 200 cm max span
- 30 cm min curve radius

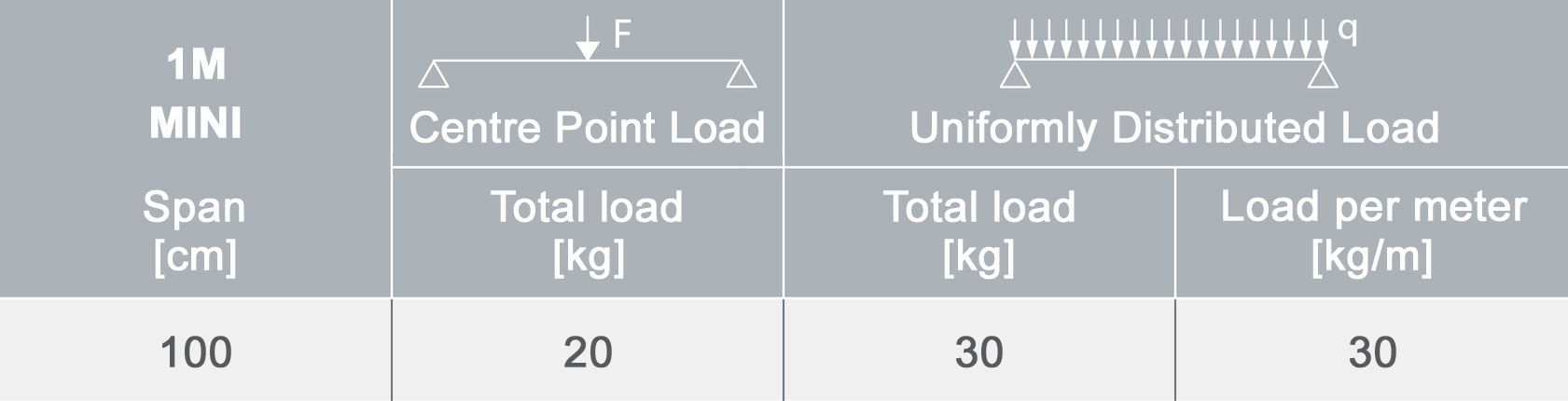

Rail Load Capacity
Load over: . . . 100 cm span
- centre point: . 20 kg
- unif. distrib: .. 30 kg
Carriers
- spedial plastic wheels
- 1MM - Master Carrier: metal chassis
- 1MC - 2 Wheel Carrier: wholly plastic made
Carriers Load Capacity
- 1MM - Master Carrier: 4 kg
- 1MC - 2 Wheel Carrier: 2 kg
Fixing options
- ceiling mounting (with 1MBP - Pre-drilled rail)
- wall mounting
- flying bar system (Ø 5 cm tube)
Main configurations
- S. Single rail central opening (without superposition)
- D. Double rail central opening
- L. Wipe side opening
Motion control
for S. / D. / L. configurations
- H Hand pulled uncorded walk-along*

* straight and curved rails

This material was used for...

Oratory of San Martino

Curtains for multi-purpose settings

Teatro Comunale of Castello d'Argile

Curtains for multi-purpose settings

Teatro San Costanzo

Curtains for multi-purpose settings
