QSF - Miroflex

Flexible mirror

QSF - Miroflex, flexible mirror plates.01. silver02. goldThe mirror effect is produced by a metallized polyester film thermally welded to the front side of the sheets ...
View all
... while their back is matte black.The considerable flexibility facilitates the boxing and transport of the QSF - Miroflex sheets ...
... whose mirror side is protected by an appropriate film to be removed at the time of use.
QSF - Miroflex plates measure 200 x 100 cm ...
... and the thickness of 1 mm makes it easy to cut them ...
... while their flexibility is often used ...
... to achieve singular distortion effects.
Pierangelo Russo, ''Open Your Mind'' The sculpture uses four QSF - Miroflex flexible mirror plates.The artist laid the plates so that their surface ...
QSF - Miroflex glassless mirror panels are very flexible and almost unbreakable.
They are used in scenography or for other applications where, for safety reasons, the use glass is not allowed.
They are mainly used to create deforming mirrors and for distorted reflection effects, although if fixed on a rigid support in an appropriate way they can provide a mirror effect with minimized distortions.
However, for a traditional mirroring effect, the QSR - Miroplan mirroring plates are recommended or, for maximum quality, the QST - Mirocryl plates.
The reduced thickness of the sheets allows thermoforming them or cropping them with relative ease.
The sheets can be fixed on rigid supports with silicones without solvents or vinyl adhesives.
Or by means of double-sided VBI - Bia Tape (VBG - Bire Tape when a higher adhesive power is required).
The flexibility of the sheets allows them to be rolled up and shipped in special protective boxes of limited size, which facilitate transport and reduce the freight.
Flame reaction
IFR - inherently flame retardant
FR certification
UNI 9177 class 2
DIN 4102 class B2
Composition
polystyrene base
metallized polyester surface
Weight
1,0 kg / m²
Thickness
1.0 mm
Dimensions
100 x 200 cm (dimensional tolerance -1‰ / +3‰)
Packing method
flexible plate with protective film
Finish
mirror finish
matt black backside
Available colours
see colour chart
Custom colours
not available

Availabilty
full sheets only

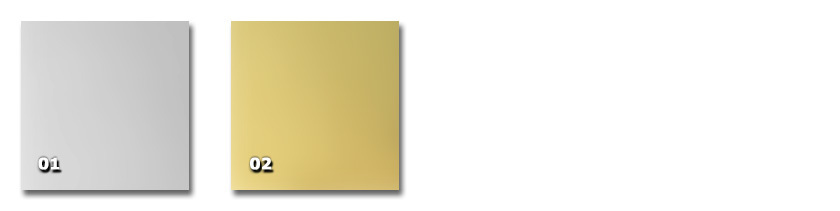

Colour chart

QSF - Miroflex 01. silver02. gold

This material was used for...

Booth Nanis Jewels

Commercial premises

Deerupt

Events

Folie, 3³

Public places

Nikki Beach, ''Annual White Party''

Events

Pierangelo Russo, ''Giro giro tondo''

Exhibitions, art, architecture

Pierangelo Russo, ''Open Your Mind''

Exhibitions, art, architecture

Showroom mirrors

Commercial premises

Spacatimpan Ciass

Events

Teatro Dante Alighieri, ''Tenebrae''

Lyric opera

Teatro Nacional de São Carlos, ''Macbeth''

Lyric opera

Teatro Petruzzelli, ''La traviata''

Lyric opera

Teatro Real, ''Samson et Dalilah''

Lyric opera

Teatro Verdi di Pisa, ''Paride ed Elena''

Lyric opera

Wexford Opera House, ''Une éducation manquée''

Operetta, zarzuela, musical
