PBO - Bianco Ottico

Front projection film

PBO - Bianco Ottico Film for frontal projection
View all
Le Zénith A big Frontal projection screen endowed with a 100 m width and 11 m height made of PBO - Bianco Ottico.Fullscreen projections are performed with 8 edge blending projectors.
Teatro alla Scala, ''Kát'a Kabanová'' Video-projections on a screen made of PBO - Bianco Ottico used for scenographical purpose.Video projections on a PBO - Bianco Ottico screen used for scenographic purposes.A zenithal camera filmed the scene from above and the video was reworked and projected in real time on the screen.In other scenes the screen ...
... was used for effects of chromatic illumination ...
... also accompanied by back-lighting effects on the characters.
IT convention, Madrid Frontal projection screen made with the film PBO - Bianco Ottico, width 12,40 m and height 5 m.
RSI - Radiotelevisione Svizzera di lingua italiana, ''Black Jack'' Cyclorama made of PBO - Bianco Ottico, 20,5 x h 4,6 m, with Track system Laser.
Frontal projection screen 20 m wide and 7 m high realized with the PBO - Bianco Ottico film. Tiziano Ferro, ''Nessunoèsolo''
PBO - Bianco Ottico is a specific film for the manufacture of professional Frontal projection screens to be used in theatrical scenographies and of concerts, in movie theaters and in staging of events.
It returns the projections in a neutral and uniform way because it has a gain close to 1, that is, it does not increase or reduce the luminous flux it receives from the projector and its viewing angle has an almost flat curve, ideal for a homogeneous vision.
It does not alter the colour temperature of the projection source, therefore it has an optimal reproduction fidelity.
It lends itself very well to edge blending projections.
It is an extremely versatile material, usable in a variety of situations, with some warning: its performance is ideal in good darkening conditions, without high light interferences that cause a loss of contrast.
If a screen with similar performance is needed, but which maintains a good contrast even in situations with much light, it is recommended to choose the PST - Stormy film which, however, under the same conditions, needs a higher luminous flux.
The PBO - Bianco Ottico is not opaque to light, for screens with similar performances but with this characteristic, use the PBL - Blackout.
For screens with similar performances but with good sound transparency, see PMI - Bianco Ottico Perforato and PBM - Blackout Microforato.
Flame reaction
IFR - inherently flame retardant
FR certification
EN 13501-1 class B s1 d0
UNI 9177 class 1
DIN 4102 class B1
NFP 92-507 class M1
NFPA 701 pass
Composition
100% PVC
Weight
440 g / m²
Thickness
0,32 mm
Width
230 cm
Length
120 m
Packing method
rolled-up
Colours
optical white
visual side embossed and matte

Peak gain
0.99
Front projection
Rating 5.0 brightness
Rating 4.0 contrast
Rating 5.0 color fidelity
Rating 5.0 cone of vision
Rating 2.0 anti parasitic light (interference environmental light)

Availabilty
by the metre (folded or rolled, max. 25 m rolls)
in full rolls
in tailor made creations

Colour chart

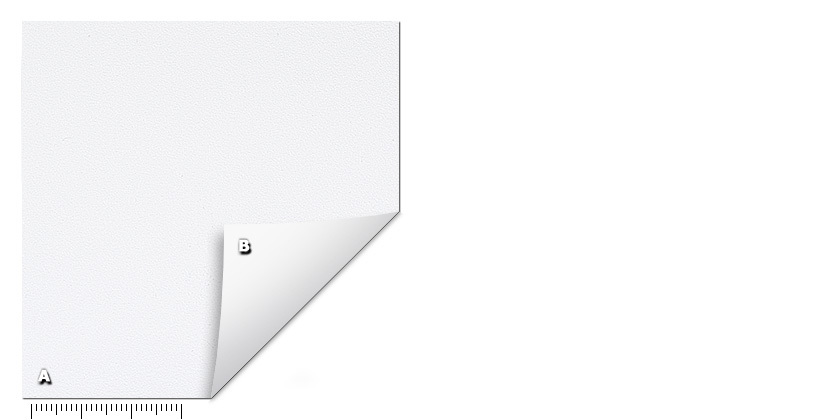

PBO - Bianco Ottico A. embossed matte white (vision side)B. smooth shiny white (back)
