NTR - Tripolina

String curtain

NTR - Tripolina - 01. white The yarn is extremely soft in order to get a perfect vertical drop of the threads.And it's polyester, so it's very sturdy and inherently flame retardant.
View all
NTR - Tripolina - 07. light grey Ezio Antonelli, scenic and visual designer of Ravenna Festival, ''Pietra di diaspro'', describes the material in an interview with Sound&Lite, No. 68:«They are long thin threads, with a very soft drop, that reflect well the light of projections ...»
«... and create a sort of semi-transparent screen, like a tulle, but which can be crossed by the actors.»In the photo: anthracite NTR - Tripolina .
NTR - Tripolina 07. light grey08. anthracite
NTR - Tripolina - 99. black 1 - WVE - Velcro loop 3 cm, the standard2 - WRI - Ruflette, to be hung with WGA - M Hooks - 3A third finish with sewn-in WLA - Ties is used especially with TRX type of track systems.
NTR - Tripolina - 01. white WRI - Ruflette finishing.
Lighting tests on two backdrops made of white NTR - Tripolina.The way of interacting with the light and the projections of the Tripolina string curtains, if the original striped effect is skipped ...
... is similar to that of the tulle for scenography.The illumination of the subjects that stand behind the backdrops cause their vision in transparency through two or more backdrops.The white colour, thanks also to the strong reflective properties of the yarn, takes with extreme ease ...
Flame reaction
IFR - inherently flame retardant
FR certification
EN 13501-1 class B s1 d0
UNI 9177 class 1
Composition
100% polyester
Weight
300 g/m²
Width
210 cm modules
Height
from 2.5 to 6,5 m in increments of 0.5 m
from 7.0 to 10 m in increments of 1 m
on request up to 25 m height
Attention: modules with a height greater than 9 m are sold with a slightly higher height and must be trimmed at the time of installation
Top finishing
WVE - Velcro loop 30 mm (velcro hook not included)
on request WLA - Ties or WRI - Ruflette
Available colours
colour chart
Custom colours
not available

Transparency
against light
Rating 4.5
Wall effect
with frontal lighting
Rating 4.5
Frontal projection
Rating 5.0 white
Rating 3.5 grey
Rating 2.0 black
Rear-projection
Rating 4.0 white
Rating 2.5 grey
Rating 1.0 black

Availabilty
in standard-size modules
in tailor made creations ( Tripolina string curtains )

Colour chart

NTR - Tripolina 01. white02. beige07. light grey08. anthracite99. black

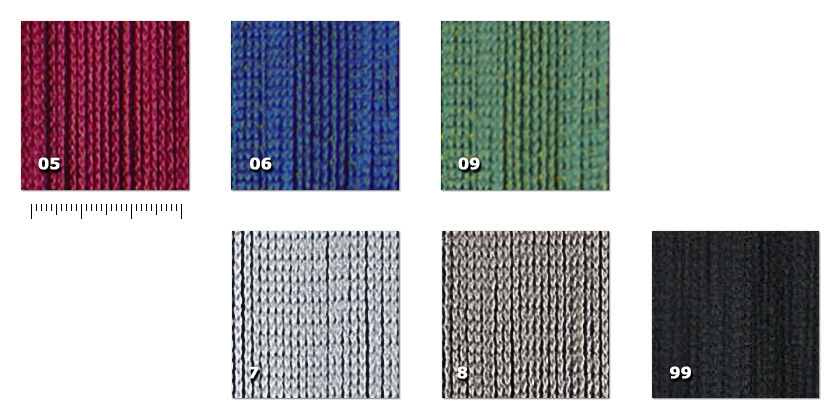

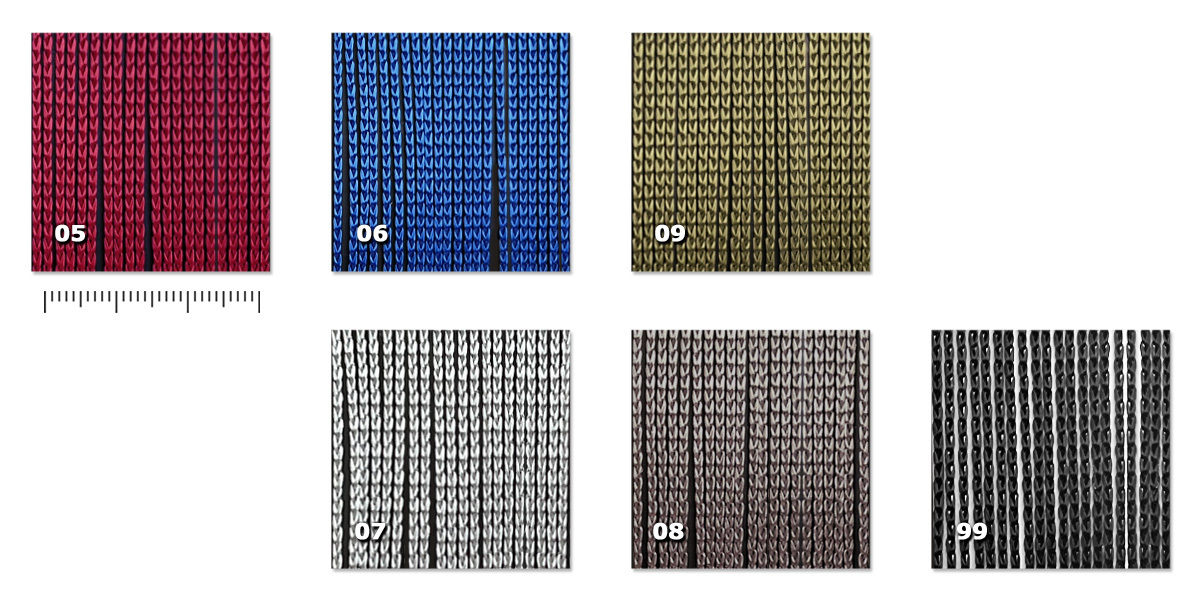

NTR - Tripolina 05. red06. blue09. green

Video & Documentation

Chain curtain: test

Ravenna Festival, ''Pietra di diaspro''

Ravenna Festival, ''Pietra di diaspro''

This material was used for...

Booth Nanis Jewels

Commercial premises

Claudio Baglioni, ''Q.P.G.A.''

Concerts

Convention of a car firm, presentation

Conventions

Maggio Musicale Fiorentino, ''Swan Lake''

Dance

Ravenna Festival, ''Pietra di diaspro''

Lyric opera

Sagunt a Escena, ''Bailando con Carmen''

Dance

Stage for events

Events

Teatro Carlo Felice, ''Pagliacci''

Lyric opera

Tripolina string curtains

Projection / transparency backdrops
