NTR - Tripolina

string curtain

NTR - Tripolina«... they are long thin threads, with a very soft drop, that reflect well the light of projections, a sort of semitransparent screen, as a tulle, which can be crossed by actors.»Ezio Antonelli, scenic and visual designer of Ravenna Festival, ''Pietra di diaspro'' from an interview released to Sound&Lite, n. 68.
View all
NTR - TripolinaThe colour white.The yarn is extremely soft in order to get a perfect vertical drop of the threads.
NTR - Tripolinablack
NTR - Tripolinadark grey colour
Detail of the top edge with WRI - Strap for hooks of a module of NTR - Tripolina, white colour.To make faster the operations of installation the edge can be endowed with WVE - Velcro.
NTR - TripolinaExamples of top finishings1 - WRI - Strap for hooks2 - WVE - Velcro
Lighting tests on two backdrops made of NTR - Tripolina, white colour.
The way of interacting with the light and the projections of the NTR - Tripolina backdrops, if the original striped effect is skipped, it is entirely similar to that of the Tulle backdrops.The illumination of the subjects that stand behind the backdrops cause their vision in transparency through two or more backdrops.
Flame reaction
IFR - inherently flame retardant
FR certification
EN 13501-1 class B s1 d0
UNI 9177 class 1
Composition
100% polyester FR
Weight
300 g/m²
Width
210 cm modules
Height
from 2.5 to 6 m in increments of 0.5 m
from 6 to 10 m in increments of 1 m
on request modules up to a max height of 25 m can be produced
Top finish
WVE - Velcro loop 30 mm (velcro hook not included)
on request WLA - Ties or WRI - Strap for hooks
Available colours
colour chart
Custom colours
N.D.

Transparency against light
Rating 4.5
Wall effect with frontal lighting
Rating 4.5
Frontal projection
Rating 5.0 white
Rating 3.5 grey
Rating 2.0 black
Rear-projection
Rating 4.0 white
Rating 2.5 grey
Rating 1.0 black

Availabilty
in standard-size modules
in custom realizations Thread curtain Tripolina

Colour chart

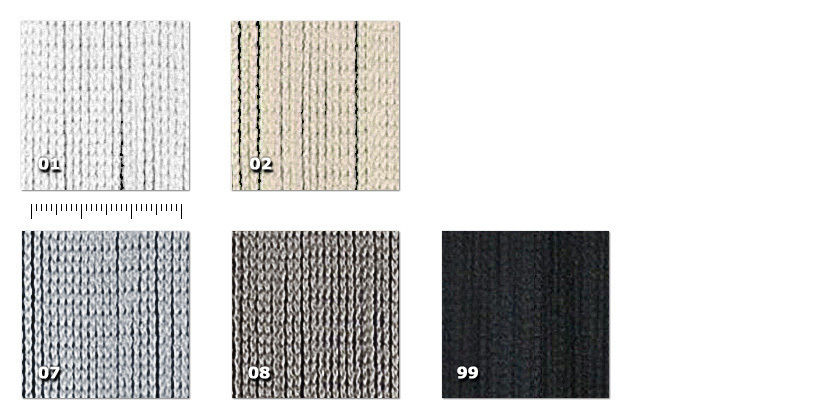

NTR - Tripolina1. bianco2. beige7. light grey8. dark grey10. brown12. dove grey99. black

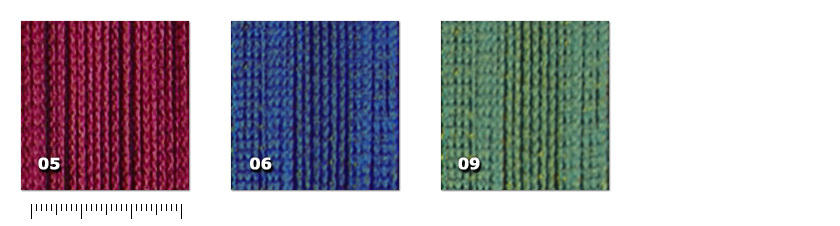

NTR - Tripolina5. red6. blue9. green11. yellow

Video & Documentation

Chain curtain: test

Ravenna Festival, ''Pietra di diaspro''

Ravenna Festival, ''Pietra di diaspro''
