5LC - Professional C

Motorized screen from 5 to 7 m wide

5LC - Professional C motorized screen Ideal for polyvalent spaces to use occasionally as room for projections: classrooms, meeting rooms, small halls for conferences.Standard dimensions - the height of aspect ratio 4:3 is adjustable to aspect ratio 16:9 Aspect ratio 4:3 - screen size ......... weight - 500 x h 375 cm .... 90 kg600 x h 450 cm .. 110 kg650 x h 490 cm .. 120 kg700 x h 525 cm .. 130 kg Total width - width of the screen + 20 cm Section of the case - 192 x 217 mm
View all
5LC - Professional C motorized screens Normal endowment - S - Switch Optional - 5TM - 2 - Remote control with external receiver
5LC - Professional C motorized screens Optional - 5TM - 4 - Remote control wall pad with external receiver It can be used in parallel with the 5TM - 2 - Remote control.It comes with a frame to be fixed to the wall where you can store the remote control that can be used in that position or extracted and used as a portable remote control.

5LC - Professional C motorized screen Installation to ceiling (plates included in the price).
5LC - Professional C motorized screen Ideal for polyvalent spaces to use occasionally as room for projections: classrooms, meeting rooms, small halls for conferences.Standard dimensions - the height of aspect ratio 4:3 is adjustable to aspect ratio 16:9 Aspect ratio 4:3 - screen size ......... weight - 500 x h 375 cm .... 90 kg600 x h 450 cm .. 110 kg650 x h 490 cm .. 120 kg700 x h 525 cm .. 130 kg Total width - width of the screen + 20 cm Section of the case - 192 x 217 mm
5LC - Professional C motorized screen In option with extra charge: device for installation on the wall (from 3 to 4 plates depending on the width of the screen).
Structure
case made of enameled white aluminium
winding roll made of aluminum
Engine
silent engine 230 V - 50 Hz
power 40 Nm - consumption 322 W
speed 17 rpm - roll Ø 14 cm - lifting speed 9 cm per second
Remote control (optional)
Screen
at choice - flameproof European Norm EN 13501·1
Installation
to ceiling / to wall / to the stage structures
Features
custom size manufacturing too
maximum width 7 m - maximum lifting height of the engine h 6,5 m
CE conformity

Width of the screen
h at choice
Weight
the screen is excluded
500 cm . . . . . . . . . .
600 cm . . . . . . . . . .
650 cm . . . . . . . . . .
700 cm . . . . . . . . . .
. 80 kg
. 95 kg
105 kg
110 kg

Total width of the case
width of the screen + 20 cm

Colour chart

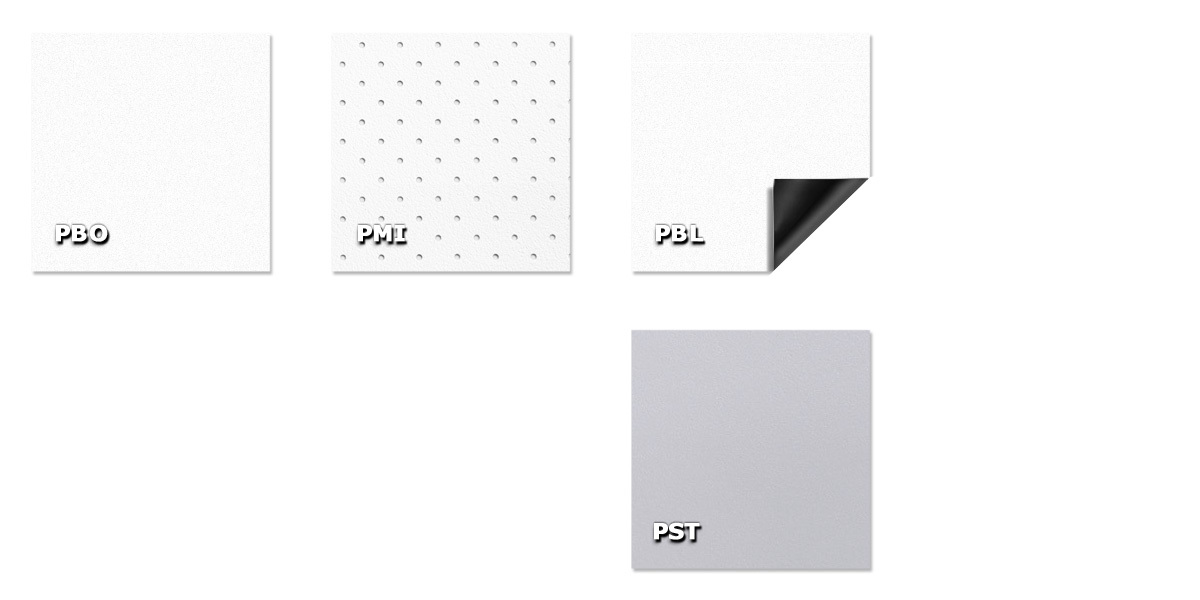

Frontal projection screens PBO - Bianco OtticoPBL-BlackoutPBM-BlackoutMicroforatoPST-Stormy
Rear-projection screens RNV - NevadaRAR-Arizona
Film per chroma key QCK - Cychroma
