5FR - Frame

Visible frame screens from 1,6 a 4 m of width

5FR - Frame - Aspect ratio 1:1 Screen size ....... Weight160 x h 160 cm .................. 8 kg180 x h 180 cm .................. 9 kg200 x h 200 cm ................ 10 kg250 x h 250 cm ................ 13 kg300 x h 300 cm ................ 16 kgFrame size = screen size + 16 cm
View all
5FR - Frame - Aspect ratio 4:3 Screen size ....... Weight160 x h 120 cm .................. 8 kg180 x h 135 cm .................. 9 kg200 x h 150 cm ................ 10 kg220 x h 165 cm ................ 11 kg250 x h 190 cm ................ 13 kg300 x h 225 cm ................ 17 kg350 x h 265 cm ................ 21 kg400 x h 300 cm ................ 25 kgFrame size = screen size + 16 cm
5FR - Frame - Aspect ratio 16:9 Screen size ....... Weight160 x h . 90 cm .................. 8 kg180 x h 101 cm .................. 9 kg200 x h 112 cm ................ 10 kg220 x h 124 cm ................ 11 kg250 x h 140 cm ................ 13 kg300 x h 169 cm ................ 17 kg350 x h 197 cm ................ 21 kg400 x h 225 cm ................ 25 kgFrame size = screen size + 16 cm

Components 1 - Plastic angular junction (up to 300 cm width only)2 - Frame made of matte black enameled aluminum3 - Sliding link for rubber band4 - Sliding bracket (already fixed to the frame)5 - Bolts for brackets (already fixed to the frame)6 - Eyelet7 - Rod made of galvanized metal8 - Rubber band
Screen fixing a - Frame made of matte black enameled aluminumb - Sliding link for rubber bandc - Eyeletd - Rod made of galvanized metale - Rubber band
Optionals 5FR∙S1 - Couple of tripodsTo be fixed to the frame at a point no lower than the center of the screen.Tripods excursion:- minimum 117 cm- maximum 205 cmWeight: 7,5 kg each
5FR - Frame is a frame screen up to 4 m wide.
It can be hung or supported by two special floor stands.
Structure
sectional matte black enameled aluminium made 80 x 20 mm
Screen
at choice - flameproof European Norm EN 13501·1
Seams without superposition
Fixing of the screen
with rods and elastics
Installation
to ceiling / to wall
couple of tripods for floor (optional)
Features
simplicity of assemblage and transport

Colour chart

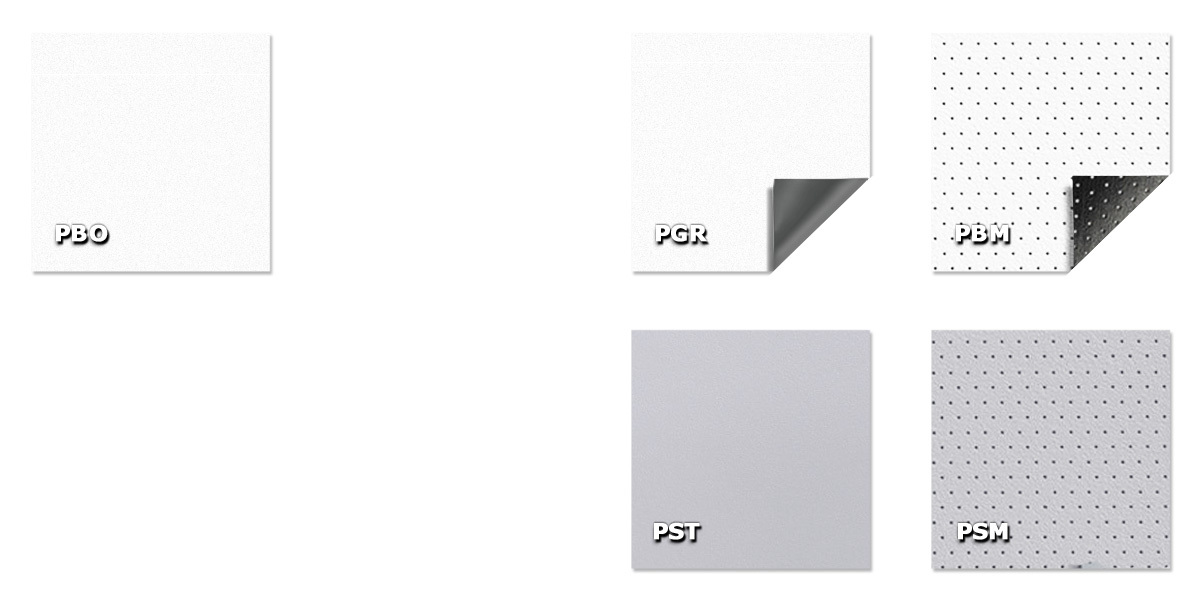

Frontal projection screens PBO - Bianco OtticoPBL-BlackoutPBM-BlackoutMicroforatoPST-Stormy
Rear-projection screens RNV - NevadaRAR-Arizona
