ASH - Shedlight

Light diffusing cloth

ASH - ShedlightDiffusive fabric used for rear-projection and rear-illumination with excellent results.
View all
ASH - ShedlightA - coatingB - polyester fabric
ASH - ShedlightDuring the rear-projection the coating offers an exceptional light diffusion, the hot spot effect is absent.
The triangular sails on the sides of the scene are made of ASH - Shedlight. Digital Samovar, ''Thumbelina''
ASH - Shedlight is a thin fabric with a robust and compact texture but soft texture.
It has a matt coating on one side, while the polyester fabric, which is slightly shiny, is visible on the opposite side.
The coating prevents the fabric from fraying when it is cut.
It is used as a diffusive fabric for rear projection and backlighting with excellent results.
In rear projection the coating allows an exceptional diffusion of light, the hotspot effect is practically absent.
Flame reaction
IFR - inherently flame retardant
FR certification
UNI 9177 class 1
DIN 4102 class B1
NFP 92-503 class M1
Composition
100% polyester
acrylic back coating
Weight
125 g/m²
Thickness
0,13 mm
Width
320 cm
Length
± 50 m
Packing method
rolled-up
Available colours
see colour chart
Custom colours
N.D.

Front projection
Rating 4.0 overall performance
Rear-projection
Rating 5.0 overall performance
Rating 5.0 brightness
Rating 4.0 contrast
Rating 5.0 color fidelity
Rating 5.0 cone of vision
Rating 5.0 light diffusion
Rating 2.0 anti parasitic light
Printability
Rating 5.0

Availabilty
by the metre
in full rolls
in tailor made creations

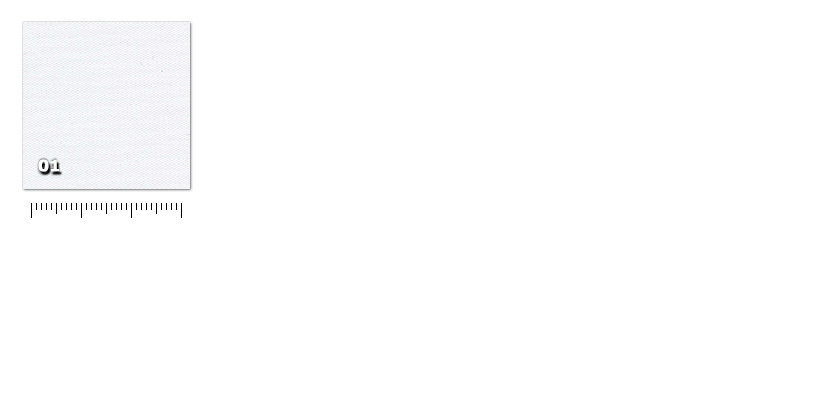

Colour chart

ASH - Shedlight1. white

This material was used for...

Digital Samovar, ''Thumbelina''

Theatre ''di figura''
