3D - DNM Rope

Static rope

View all

The 3D - DNM Rope cannot be tied or knotted with normal knots, it is necessary to use the same accessories that are used with the 3A - Aircraft cables.The one in the photo is an example, various types of accessories can be used.

The 3D - DNM Ropes are also used in the manufacturing of mechanical systems that require some ropes with the absence of elongation of the 3A - Aircraft cable and the flexibility and silenceness of the 3E - Polyester rope like, for instance, the 9SX - System for computerized opening. The Moscow Music Hall

A curtain made of silver EVR - Reflex that has a mechanism for Venetian curtain with manual opening and 11 lifting points.The manual opening system of the Venetian curtain was realized with 4PC - PVC blocks + ball bearings and black 3D - DNM Ropes Ø 2 mm. Laura Pausini, ''Greatest Hits World Tour''

3D - DNM Ropes Ø 8 mm used for the suspension of people. Winter Olympics Turin 2006 - Net and counterbalanced fly facilities

3D - DNM Rope is an inextensible rope for various stagecraft applications.
It is a textile rope, so it is flexible and it does not produce any noise like the 3E - Polyester rope.
But it has an elongation (0.5% at 20% of the breaking load) and load capacity similar to the 3A - Aircraft cable.

Flame reaction

NFR - not flame retardant

Composition

100% Dyneema / hmpe

Construction

interwoven with 12 spindles without core

Length per roll

± 100 m

Packing method

rolled

Available colours

see colour chart

Performance

Ø mm / Weight g/m¹ / Breacking load kg

Ø . 2 mm / ..2,5 g/m¹ / .... 450 kg
Ø . 3 mm / ..5 .. g/m¹ / .... 750 kg
Ø . 4 mm / ..8 .. g/m¹ / . 1.300 kg
Ø . 6 mm / 20 .. g/m¹ / . 3.000 kg
Ø . 7 mm / 28 .. g/m¹ / . 3.600 kg
Ø . 8 mm / 38 .. g/m¹ / . 4.800 kg
Ø . 9 mm / 50 .. g/m¹ / . 6.400 kg
Ø 10 mm / 59 .. g/m¹ / . 8.200 kg
Ø 12 mm / 90 .. g/m¹ / 10.800 kg

The breaking load is theoretical

Availability

in full rolls
as an accessory for tailor made creations

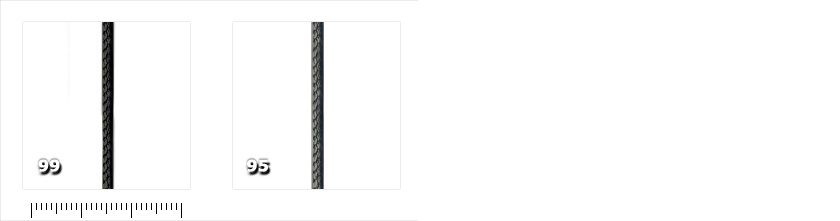

Colour chart
