5FW - Frame Wide

Frame screens up to 10 m width

View all

5FW - Frame Wide - Aspect ratio 16:10 Screen size ............. Weight.. 500 x h 281 cm ...... 60 kg.. 600 x h 337 cm ...... 70 kg.. 700 x h 394 cm ...... 82 kg.. 800 x h 450 cm ...... 95 kg.. 900 x h 506 cm .....107 kg1.000 x h 562 cm .....119 kgFramemade of matt black enamelled aluminiumscreen size + 19 cm

5FW - Frame Wide - Aspect ratio 4:3 Screen size ............. Weight500 x h 375 cm ........ 60 kg600 x h 450 cm ........ 70 kg700 x h 525 cm ........ 82 kg800 x h 600 cm ........ 94 kg900 x h 675 cm .......106 kgFramemade of matt black enamelled aluminiumscreen size + 19 cm

Normal endowment 5FW∙SP - Wall fixing brackets5FW∙GL - Eyebolts for hanging

Optionals 5LC∙TC - Truss fixing clamp5FW∙S1 - Floor stand

Optionals 5FW∙S1 - Floor standmade of matte black enamelled aluminiumHeight: h of the screen + 80 cmMaximum height: 6 m5 m wide screens: No. 2 floor standsUpper widths: No. 3 floor stands

Components 1 - Frame made of matte black enameled aluminum2 - Sliding link for rubber band3 - Lifting eye4 - Sliding nut5 - Eyelet6 - Rod made of galvanized metal7 - Rubber band

Screen fixing a - Frame made of matte black enameled aluminumb - Sliding link for rubber bandc - Eyeletd - Rod made of galvanized metale - Rubber band

5FW - Frame Wide is a frame screen up to 10 m wide.
It is available:
- in standard formats 16:9, 16:10, 4:3
- in dimensions on request.
It can be hung or supported by special floor stands.

Structure

sectional matte black enameled aluminium made 95 x 55 mm

Screen

at choice amongst the proposed models
with Seams without superposition
flameproof European Norm EN 13501·1

Fixing of the screen

with rods and elastics

Installation

to ceiling / to wall
to an Aluminium truss (optional)
on the floor with floor stands (optional)

Features

simplicity of assemblage and transport

Colour chart

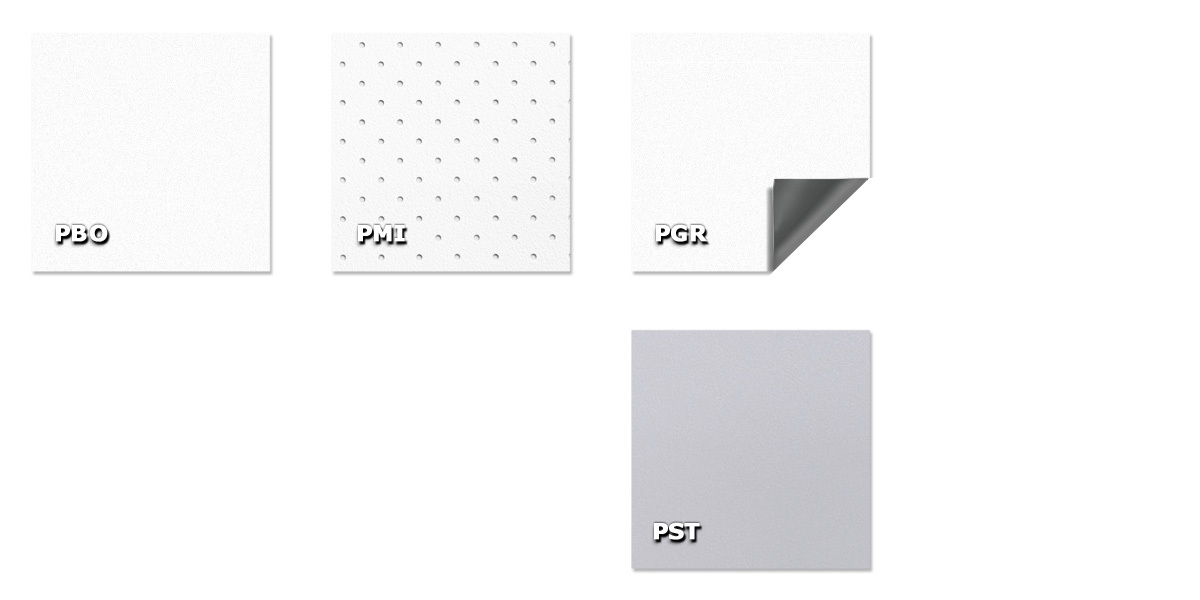

5FW - Frame Wide Frontal projection screensPBO-BiancoOtticoPGR-GreyoutPMI-BiancoOtticoPerforato

5FW - Frame Wide Rear-projection screensRNV-NevadaRAR-ArizonaRPO-Polar

5FW - Frame Wide Chroma key backdropsQCK-Cychroma
