1K - Kompas



1KB - Kompas tracklprofile din matt negru anodized aluminiu600 mm bars
Vezi toate
Ceiling mounting8LCA-Cantinella1KBP - Kompas pre-drilled rail1KC - Sliding carrier with 4 wheels1KM - Master carrier + plate for rope1KS - End Stop
Wall mountingMetal bracket for wall fixing1KB - Kompas rail1KAS - Simple connection for suspension
Flying bar system mounting8C50 - Clema Ø 50 mm with M8 nut - pentru tubes Ø 50 mm1KB - Kompas rail1KAS - Simple connection for suspension

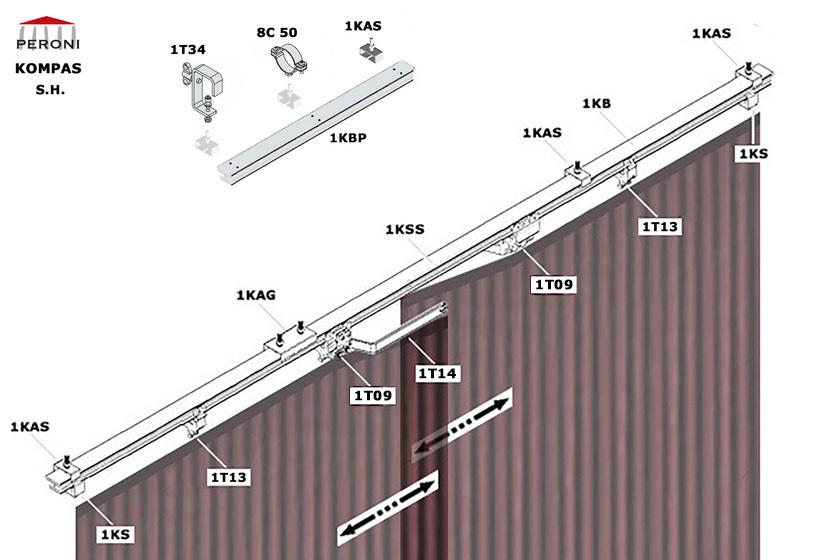

Configurație S.H. S. Single rail central openingH. Hand pulled uncorded walk-along for central overlap up to 50 cmConfiguration also possible with curved rails1KB - Straight rail1KAS - Suspention bracket1KAG - Connection1KS - End stop1KM - Master carrier1KSS - Overlap arm1T13 - 2 Wheel runner

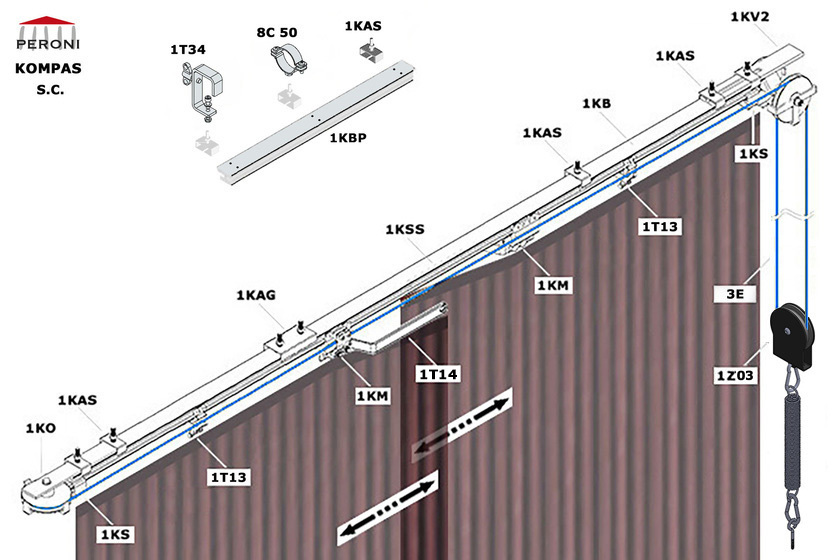

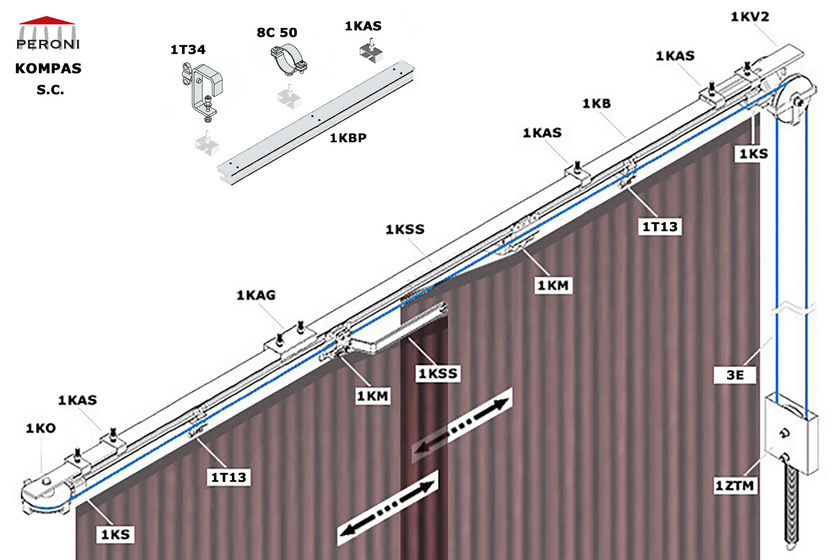

Configurație S.C. S. Single rail central openingC. Corded manualfor central overlap up to 50 cmTo achieve this configuration:- motorized- with curved railssee TRX10 system1KB - Straight rail1KAS - Suspention bracket1KAG - Connection1KS - End stop1KM - Master carrier1KSS - Overlap arm1T13 - 2 Wheel runner1KO - Horizontal pulley1KV2 - Double pulley1ZTM - Floor pulley3E-Cordapoliestere
Configurație D.H. D. Double rail central openingH. Hand pulled uncorded walk-alongfor central overlap exceeding 50 cmConfiguration also possible with curved rails1KB - Straight rail1KAS - Suspention bracket1KAG - Connection1KS - End stop1KM - Master carrier1KSS - Overlap arm1T13 - 2 Wheel runner
Configurație D.C. D. Double rail central openingC. Corded manualfor central overlap exceeding 50 cmTo achieve this configuration:- motorized- with curved railssee TRX10 system1KB - Straight rail1KAS - Suspension bracket1KAG - Connection1KS - End stop1KM - Master carrier1KD - Spacer plate1T13 - 2 Wheel runner1KO - Horizontal pulley1KV2 - Double pulley1ZTM - Floor pulley3E-Cordapoliestere
Applications
1K - Sistem de sina Kompas este un sistem modular pentru
- Cortina cu deschidere greaca simpla
- ciclorame, fundaluri
- decoruri usoare suspendate
Key features
- asamblare rapida si usoara
- sturdiness
- silent operation
- low clearance profile
- tested and highly reliable

Rail
- extruded aluminium profile
- black anodized finishing
- 780 g / m¹ greutatea sinei
- 600 cm max bar length
- 200 cm max span
- 40 cm raza minima de indoire

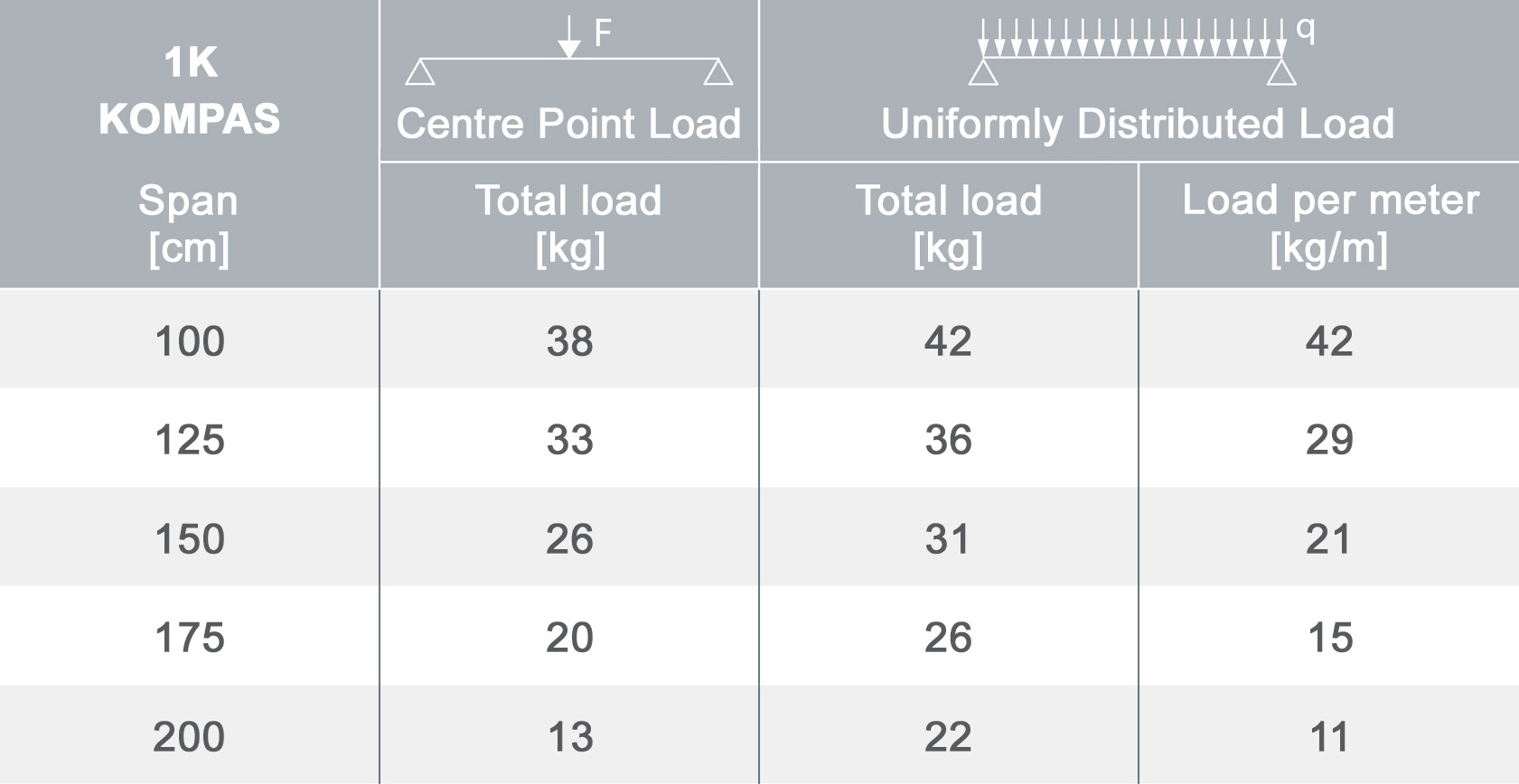

Capacitatea de incarcare a sinei
Intre doua puncte: ....... 100 cm / 150 cm / 200 cm
- sarcina in punct central: 38 kg / . 26 kg / . 13 kg
- sarcina uniform. distrib.: 42 kg / . 32 kg / . 22 kg

Carriers
- role de nylon, carucioare cu rulmenti
- tampoane de cauciuc anti-zgomot
Carriers Load Capacity
- 1KM - Master Carrier: 20 kg
- 1KC - 4Wheel Runner: 20 kg
- 1T13 - 2Wheel Runner: 10 kg

Optiuni de montare
- montare pe tavan (with 1KBP - Pre-drilled rail)
- montare pe perete
- montare pe stanga de teatru (Ø 5 cm)

Configuratii principale
- S. Deschidere centrala pe o singura sina
- D. Deschidere centrala sina dubla

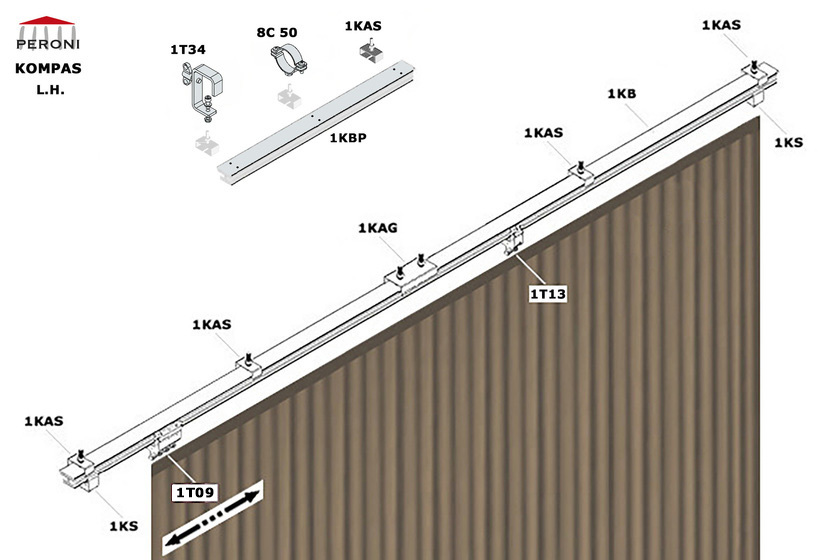

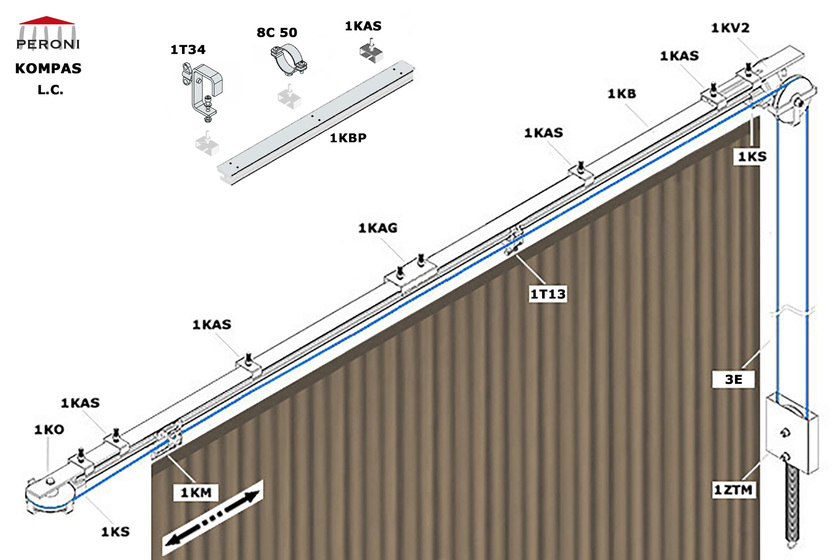

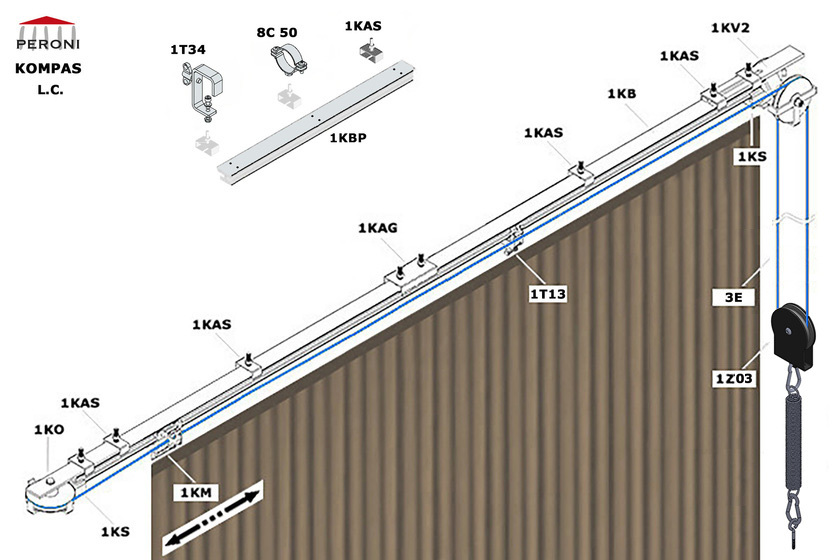

- L. Deschidere laterala
Motion control
for S. / D. / L. configurations
- H. Prin tragere cu mana*
- C. Manuala cu franghie**
- M. Motorizata***

* straight and curved tracks
** straight tracks only, for curved tracks see TRX10 system
*** see TRX10 system
