TRX10 - Sisteme de sine 1T01 - Şină TRX10 profil de aluminiu extrudat, finisaj negru anodizatbare de 600 cm
Vezi toate
Rail and components 1T01 - Straight rail1T02 - Connection set1T02T - Connection set for touring1T03 - End stop1T04 - Overlap bridge1T05 - Offset plate
Carriers 1T10 - Master carrier1T11 - Side cord master carrier1T12 - Top cord master carrier1T13 - 2-wheel runner1T14 - Overlap arms Kit (2 pieces)1T15 - Side cord limit switch arm1T16 - Top cord limit switch arm
Pulleys 1T20 - Return pulley1T21 - Head double pulley1T22 - Top cord guide1T23 - Top cord aligner1T24 - Side cord support
1Z - Hand Line Pulleys 1Z01 - Adjustable floor pulley1Z02 - Weight floor pulley1Z03 - Spring loaded floor pulley1Z04 - Floor pulley with foot stirrup
Suspension parts 1T30 - Suspension bracket1T31 - Central cord suspension bracket1T34 - Hook clamp - Bracket fixing1T35 - Hook clamp - Rail fixing1T36 - Pipe collar Ø 50 mm - Rail fixing1T36A - Pipe collar Ø 50 mm - Bracket fixing1T37 - Studding bar 15 cm - Rail fixing1T38A - Eyenut - Bracket fixing1T38B - Eyenut - Rail fixing
Cibeles, ''Colgando del Centro'' Example of arrangement as an area for events of the central passage part of a monumental historic building in Madrid.The project used a TRX10 track system with manual walk along operation ...
... and a Cortina cu deschidere greaca simpla with side opening.The curtain was manufactured in modules with a double-faced falduri verticale.It also performs the functions of Cortina acustica and Cortina fonica.
Application
TRX10 is a professional modular system for the horizontal handling of:
- medium-weight Wipe and Cortina grecești
- cycloramas
- light-weight scenery elements
The perfect solution for stages, studios, trade fairs, conference hall, etc.
Key features
- quick and easy assembly, ideal for tours
- sturdiness
- silent operation
- great versatility
- extensive range of components
- curved configurations easily achievable
- motorized configurations easily achievable
- tested and highly reliable

Rail
- extruded aluminium profile
- black anodized finishing
- 946 g / m greutate
- 600 cm lungime max a sinei

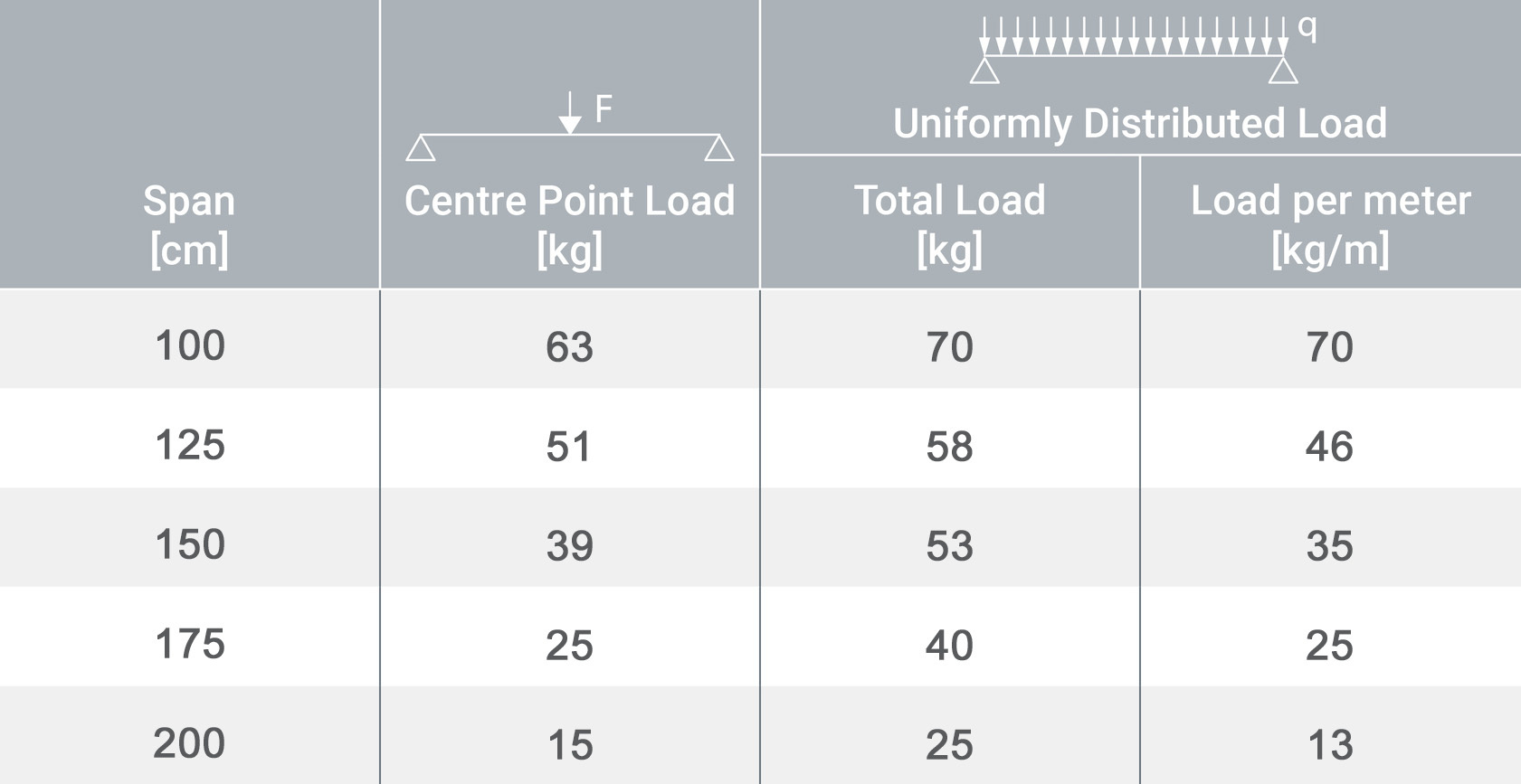

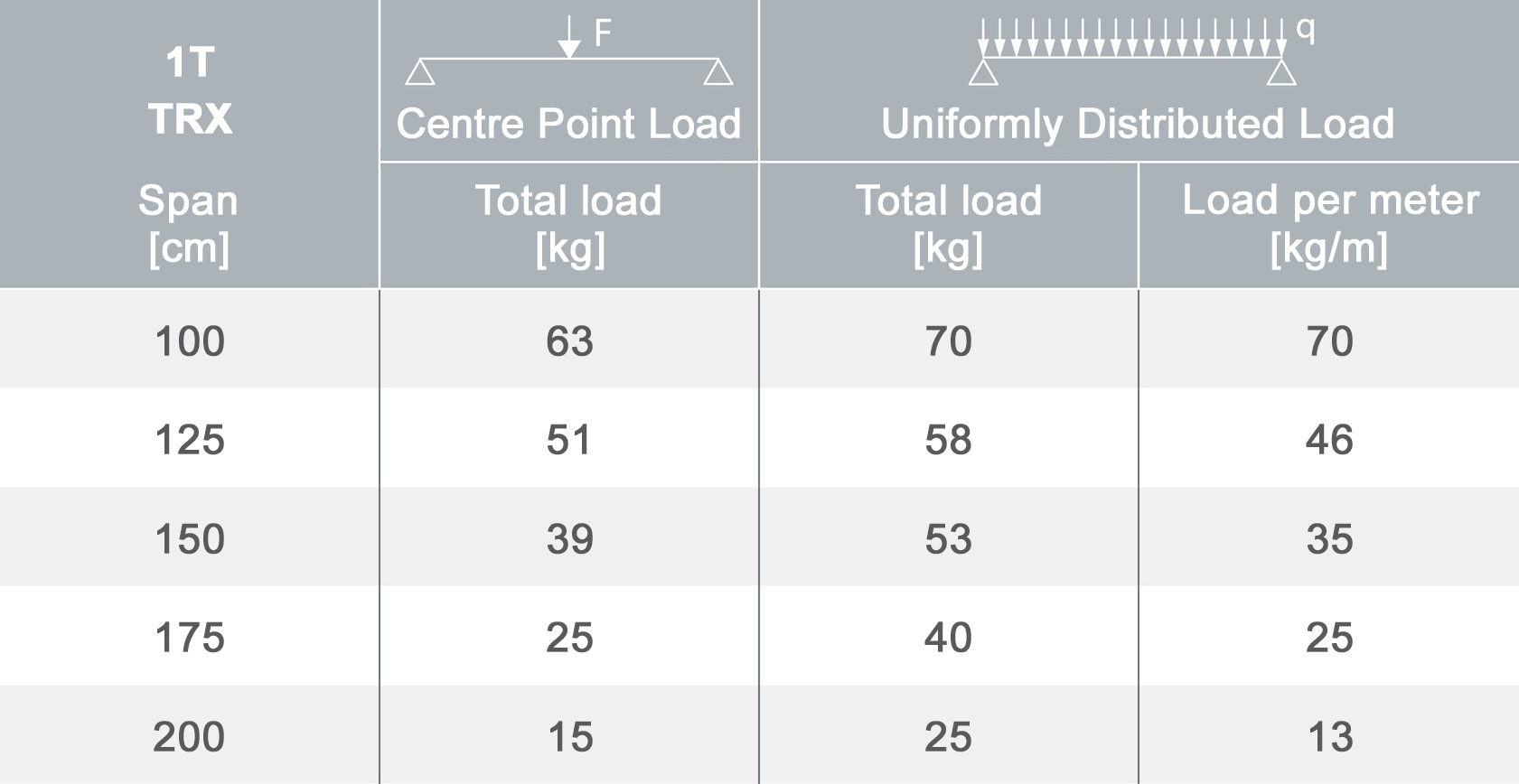

- 200 cm lungime max intre doua puncte de suspensie
- 50 cm raza min de curbura
- top groove for channel nuts

Carriers
- nylon wheels with ball bearings
- with anti-noise rubber bumpers
Sarcina de incarcare a rolelor
- 1T10 / 11 / 12 - Master Carriers: 30 kg
- 1T13 - 2 Wheel Runner: 10 kg
- 1KC - 4 Wheel Runner: 20 kg

Optiuni de montare
- pe tub / stanga de teatru
- pe ferme din alumini
- pe tavan
- pe perete cu 1Z10 - Suportul de perete
- pe grinzi metalice cu 1Z20 - Beam clamp
- suspendata cu cabluri sau lanturi

Configuratii principale
- S. Deschidere centrala pe o singura sina
- D. Deschidere centrala sina dubla
- L. Deschidere laterala
Motion control
for S. / D. / L.
configurations
- H. Prin tragere cu mana*
- C. Manuala cu franghiel*
- M. Motorizat* ( motoare 2DR1 e 2DR2 )

* both straight and curved tracks are possible
Customized solutions can be developed to suit particular needs

Graficul de culoare

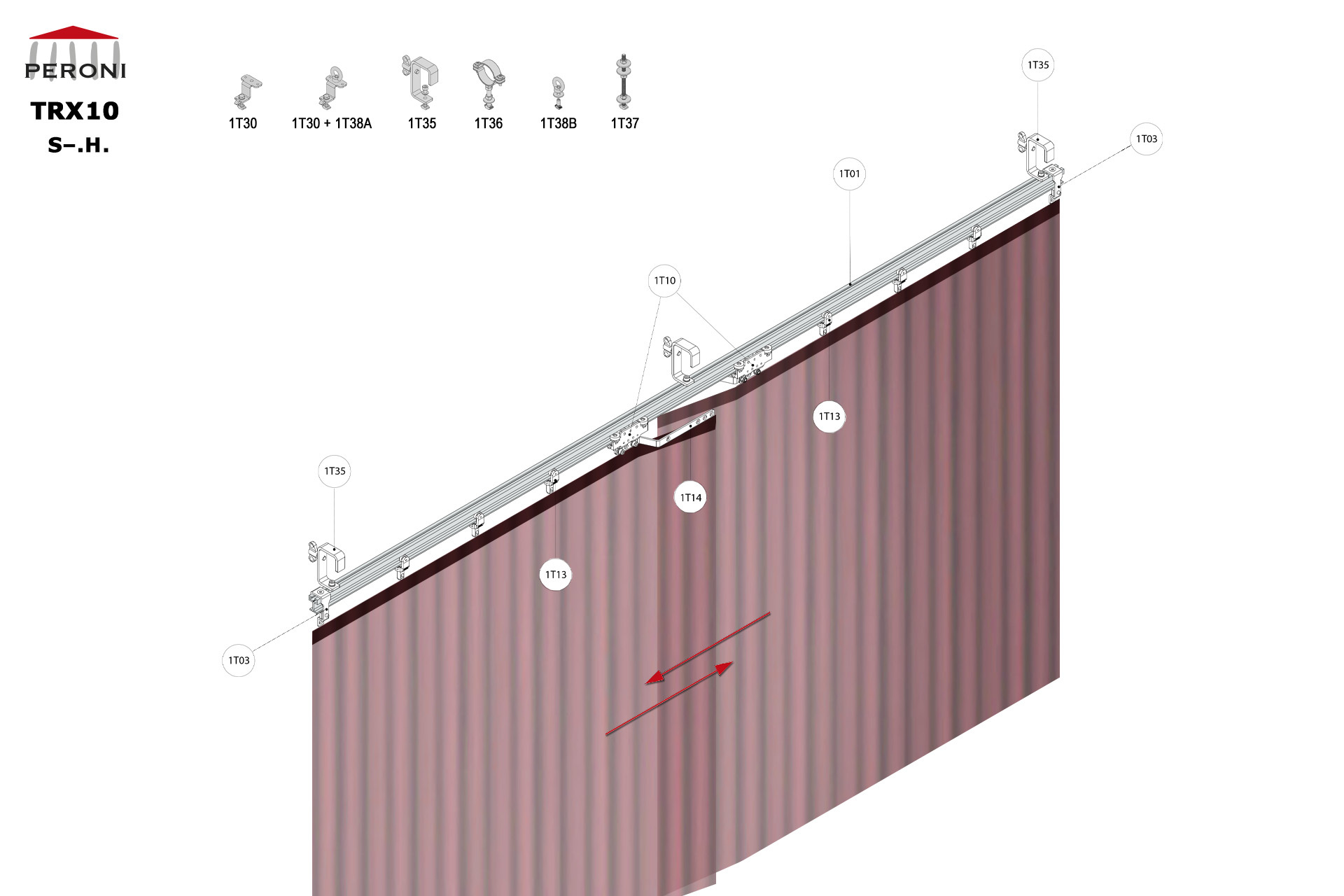

S-.H. configuration track S-. Straight single rail central openingH. Hand pulled uncorded walk-alongup to 50 cm central overlapComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T10 - Master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kit

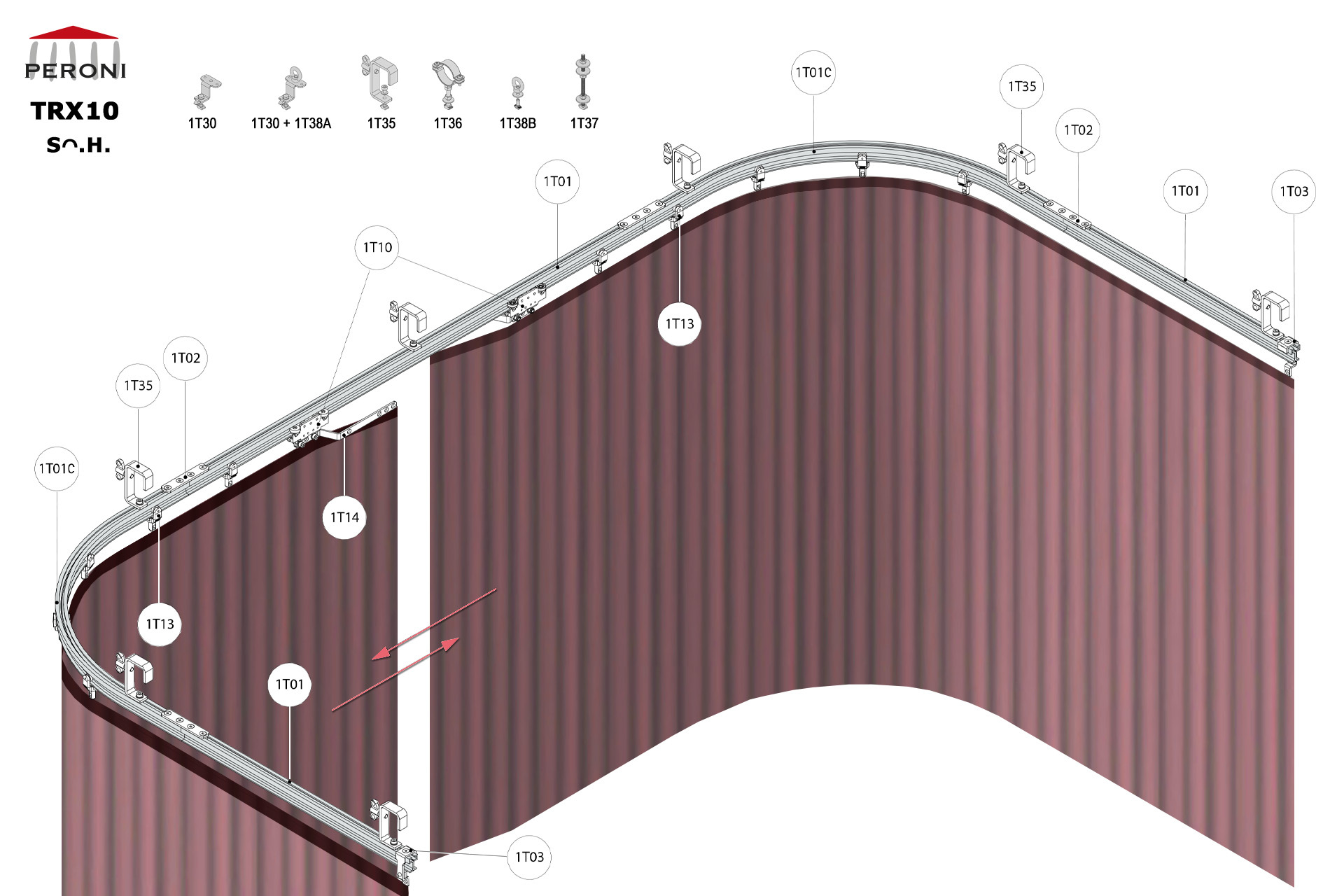

Track configurație Sᴖ.H.with U shaped curve Sᴖ. Single rail central openingH. Hand pulled uncorded walk-alongfor central overlap up to 50 cmComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T10 - Master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kit

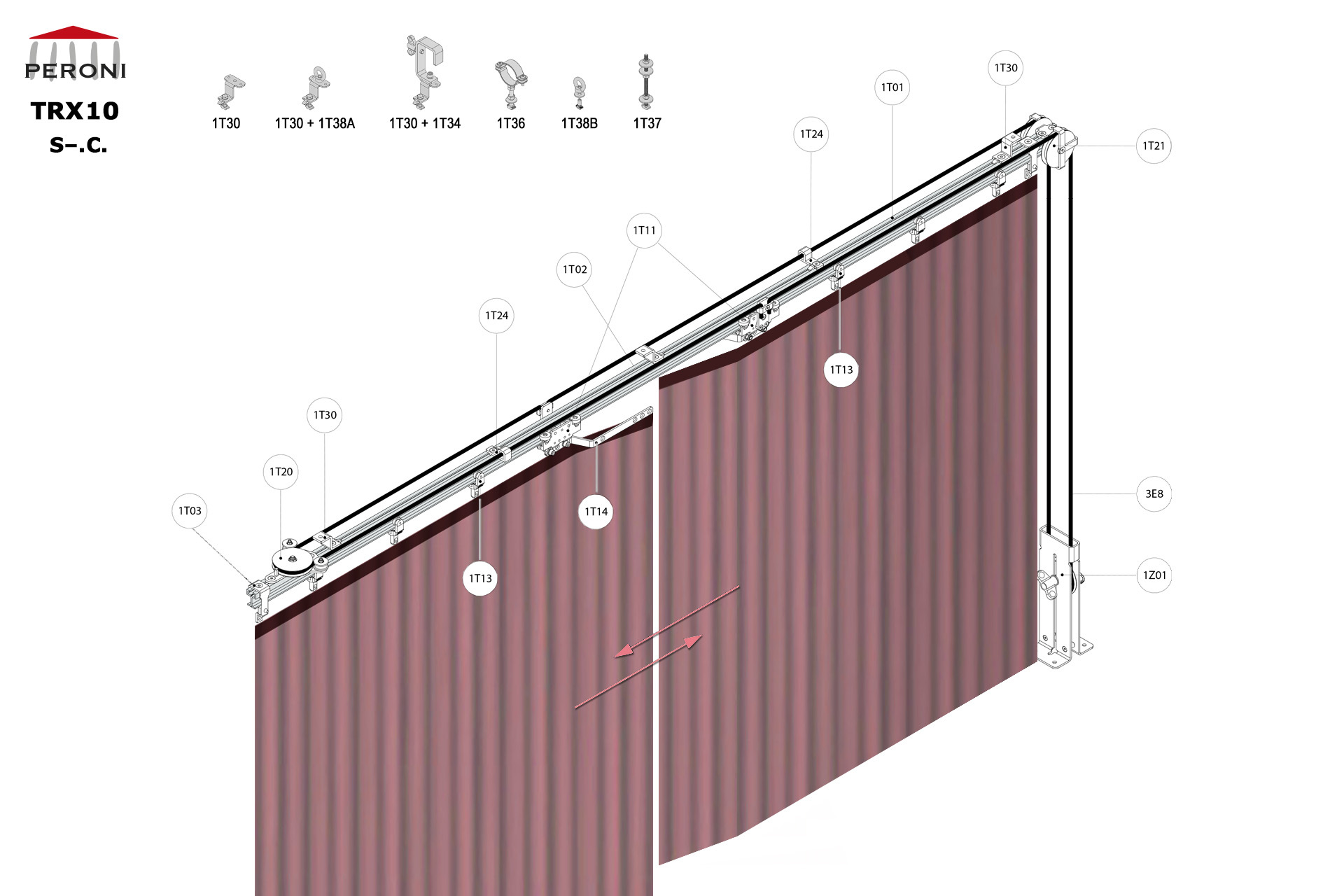

S-.C. configuration track S-. Straight single rail central openingC. Corded manualup to 50 cm central overlapComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T21 - Double pulley1T24 - Side cord support1Z01 - Vedeți toate opțiunile3E - Franghie Poly Ø 8 mm

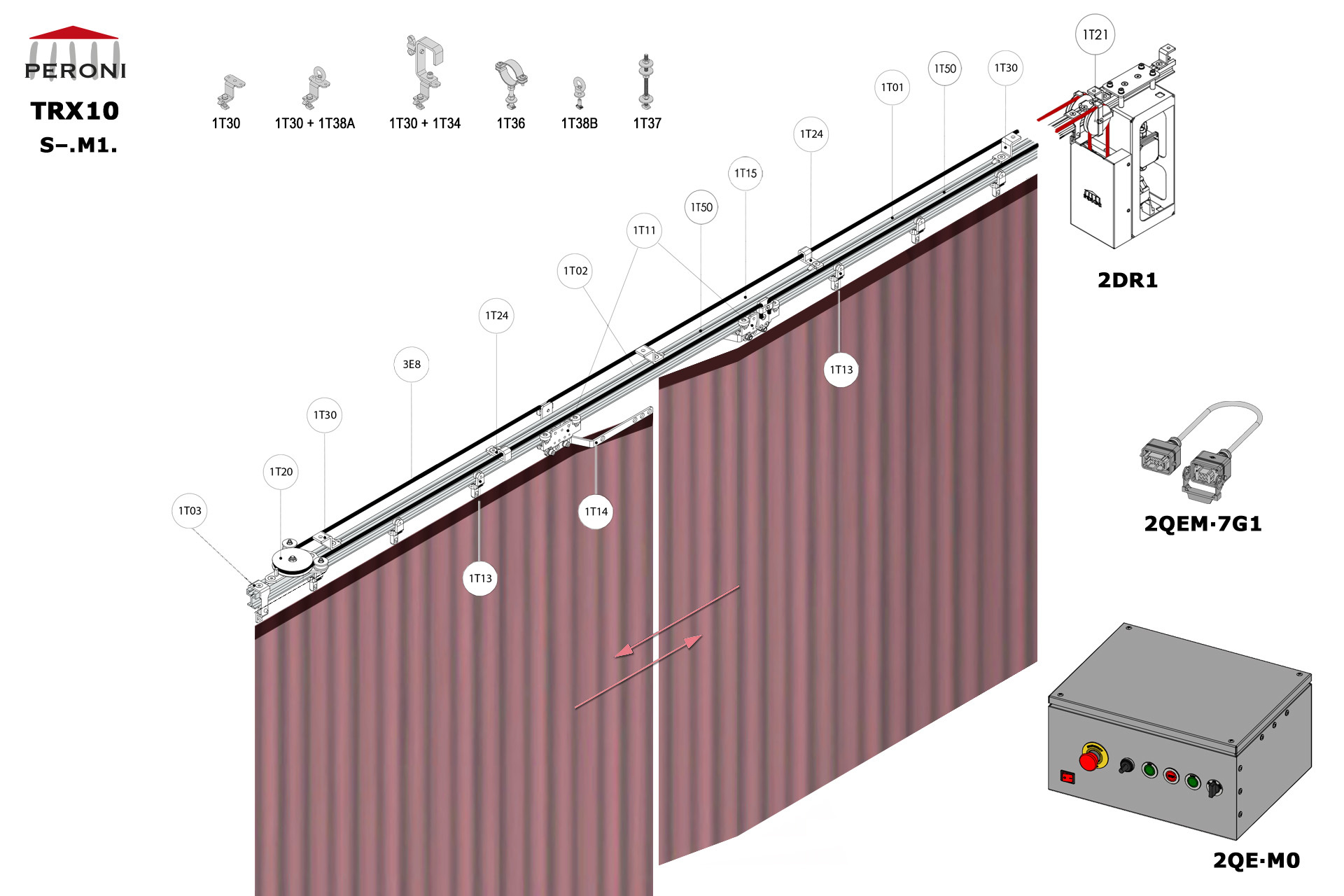

S–.M1. configuration track S–. Straight single rail central openingM1. Motorized, up to 300 kg curtainup to 50 cm central overlapComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Return pulley1T21 - Head double pulley1T24 - Side cord support1T15 - Side cord limit switch arm1T50 - Side cord limit switch2DR1-RDS2QEM-7G1-152QE∙M0 - Panou de comanda M0 3E - Franghie Poly Ø 8 mm
S-.M2. configuration track S-. Straight single rail central openingM2. Motorized, up to 125 kg curtainup to 50 cm central overlapComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1KS - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T24 - Side cord support1T15 - Limit switch arm for 1T11 + 1T501T50 - Limit switch for 1T11 + 1T152DR2-RDS2QEM-7G1-152QE∙M0 - Panou de comanda M0 3E - Franghie Poly Ø 8 mm

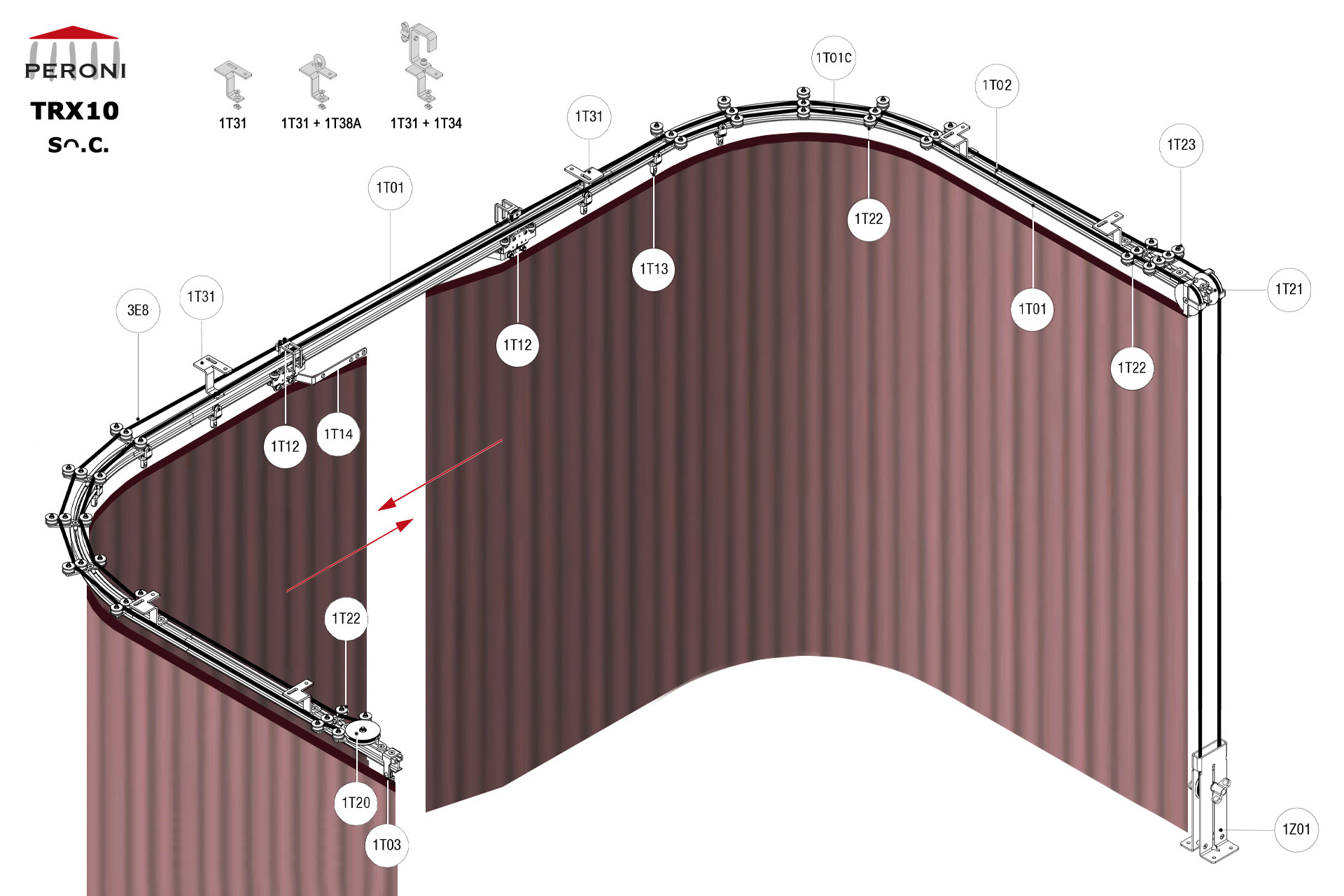

Sᴖ.C. configuration track Sᴖ. Curved single rail central openingC. Corded manualup to 50 cm central overlapComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1Z01 - See all options3E - Franghie Poly Ø 8 mm

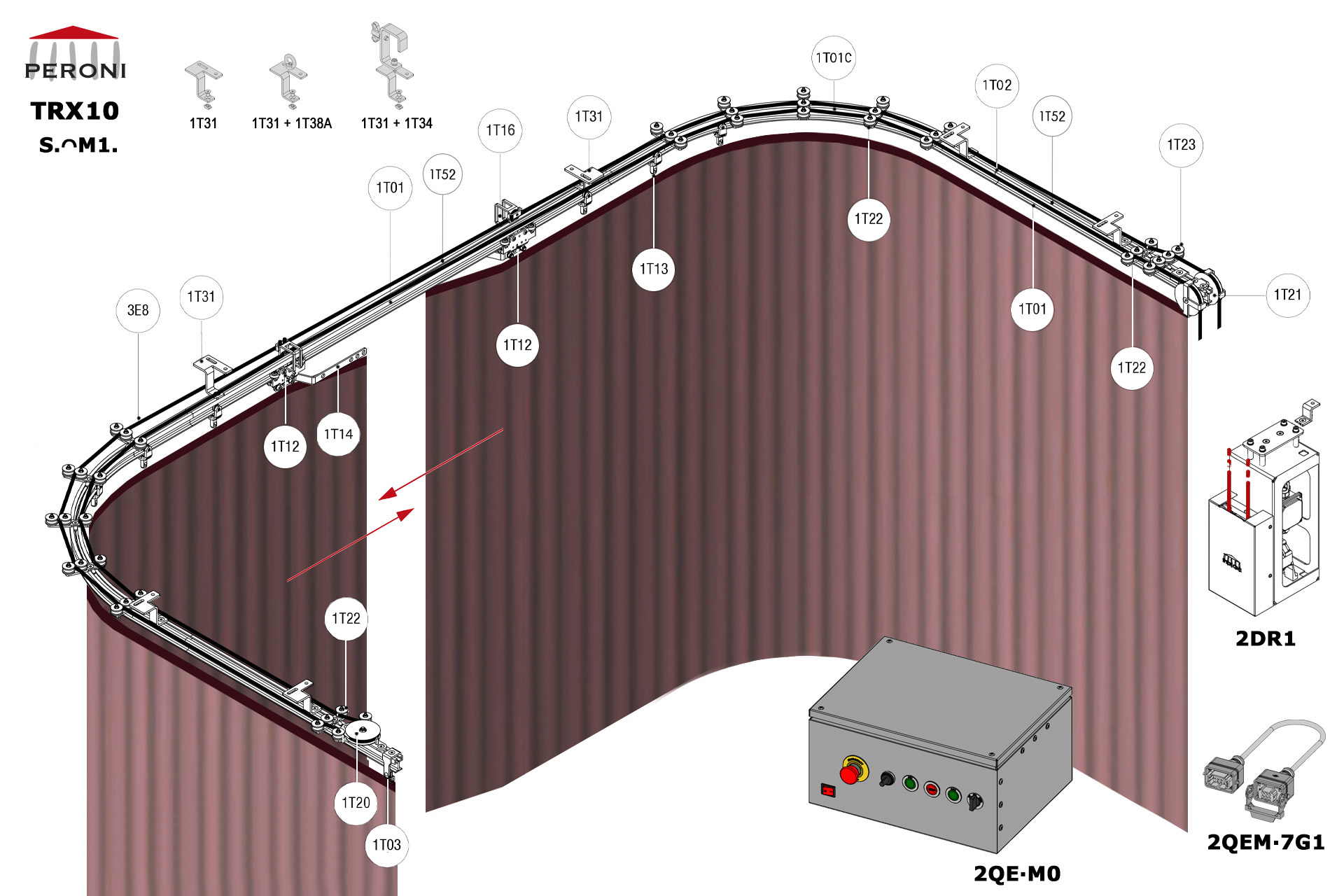

Sᴖ.M1. configuration track Sᴖ. Curved single rail central openingM1. Motorized, up to 200 kg curtainup to 50 cm central overlapComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm for 1T12+1T52+1T531T52 + 1T53 - Limit switch for 1T12+1T162DR1-RDS2QEM-7G1-152QE∙M0 - Panou de comanda M0 3E - Franghie Poly Ø 8 mmFixing1T31 - Top cord suspension bracket1T34 - Hook clamp + bolt

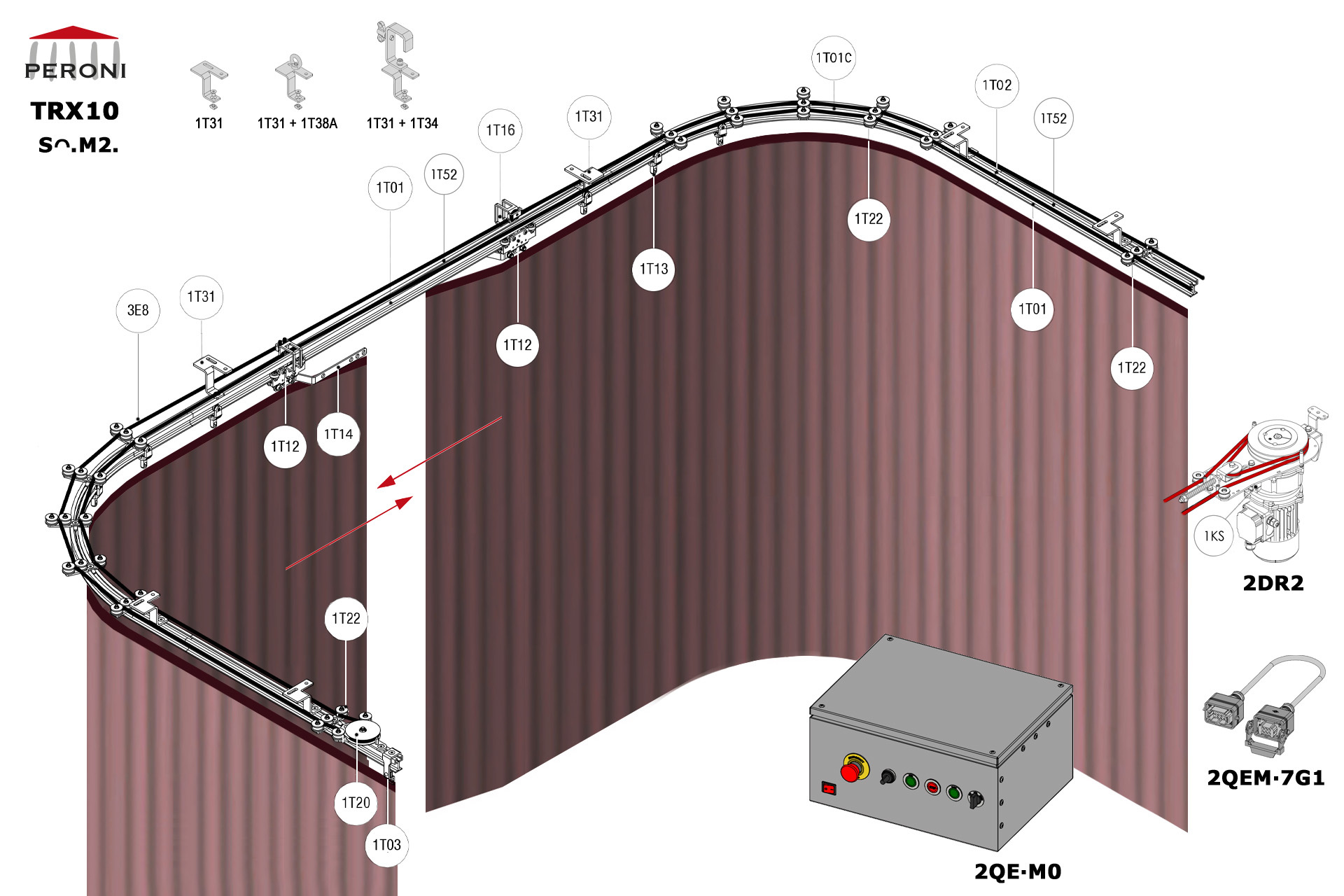

Sᴖ.M2. configuration track Sᴖ. Curved single rail central openingM2. Motorized, up to 100 kg curtainup to 50 cm central overlapComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1KS - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm 1T12+1T52+1T531T52 + 1T53 - Limit switch 1T12+1T162DR2-RDS2QEM-7G1-152QE∙M0 - Panou de comanda M0 3E - Franghie Poly Ø 8 mm

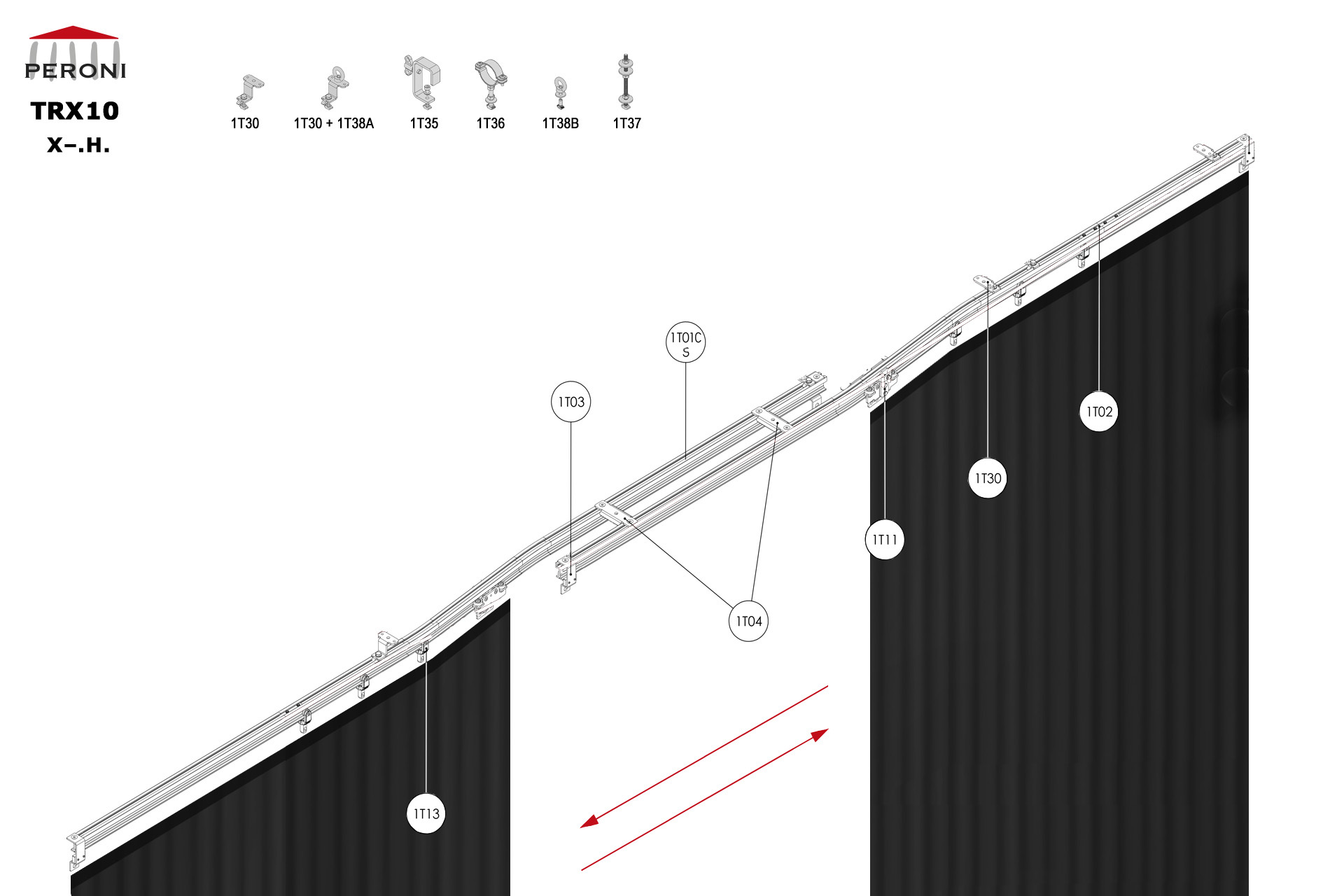

X-.H. configuration track X-. Straight split single rail central op.H. Hand pulled uncorded walk-alongup to 100 cm central overlapComponents1T01 - Straight rail1T01C-S - Curved rail for splitting1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T10 - Master carrier1T13 - 2 Wheel runner

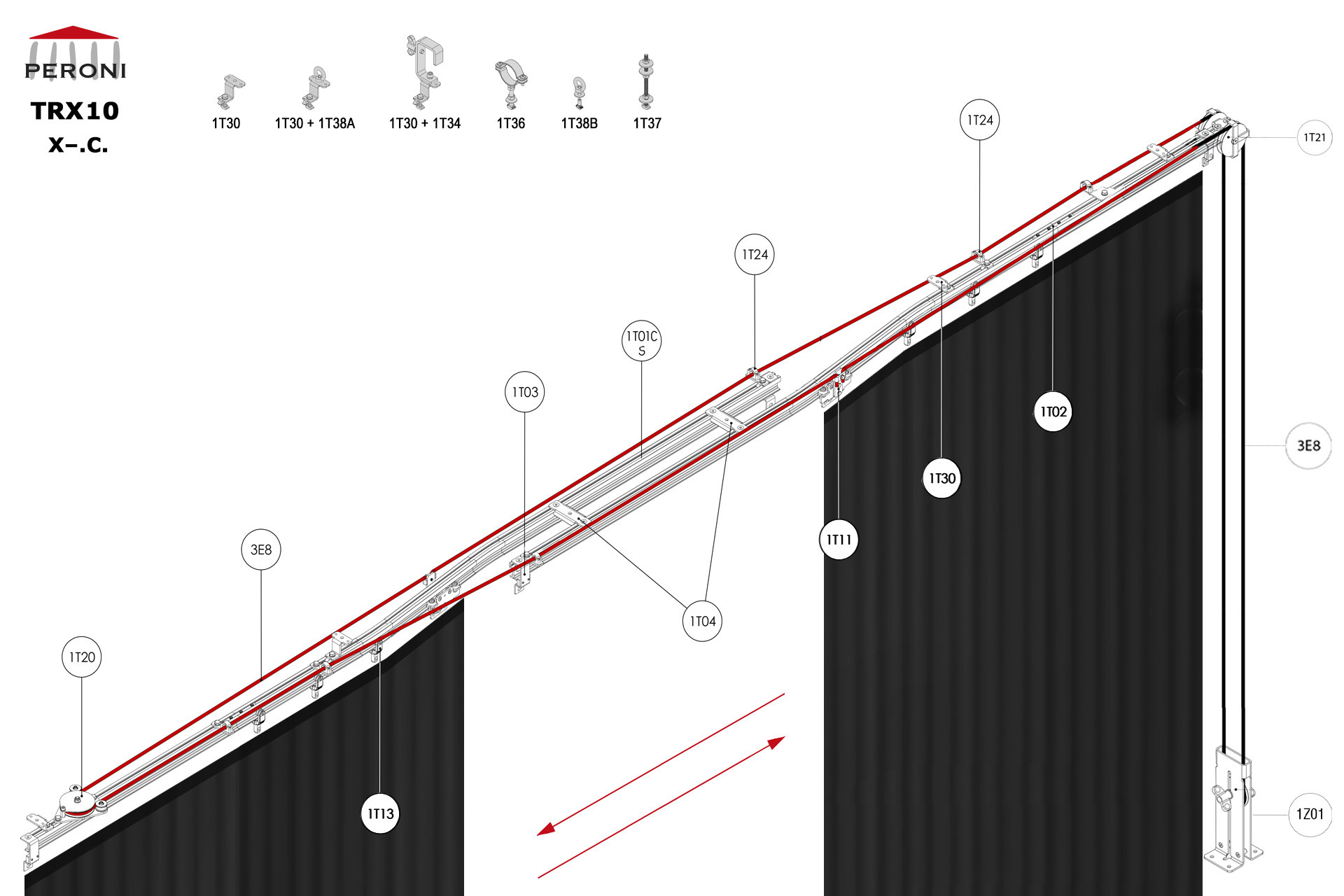

X–.C. configuration track X–. Straight split single rail central op.C. Corded manualup to 100 cm central overlapComponents1T01 - Straight rail1T01C-S - Curved rail for splitting1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Return pulley1T21 - Head double pulley1T24 - Side cord support1Z01 - See all options3E - Franghie Poly Ø 8 mm

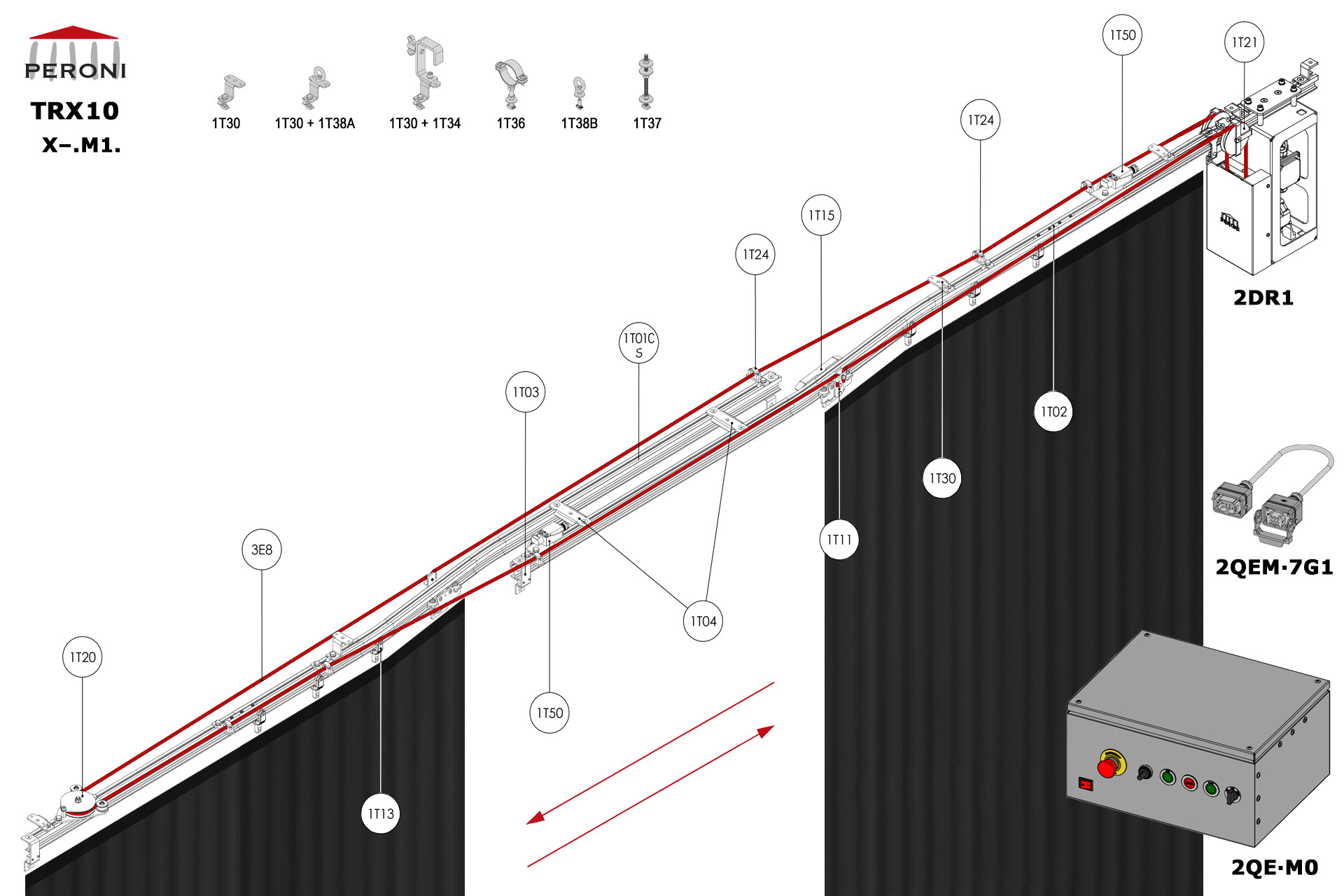

X-.M1. configuration track X-. Straight split single rail central op.M1. Motorized, up to 300 kg curtainup to 100 cm central overlapComponents1T01 - Straight rail1T01C-S - Curved rail for splitting1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T24 - Side cord support1T15 - Limit switch arm for 1T11 + 1T501T50 - Limit switch for 1T11 + 1T152DR1-RDS2QEM-7G1-152QE∙M0 - Panou de comanda M0 3E - Franghie Poly Ø 8 mm
X-.M2. configuration track X-. Straight split single rail central op.M2. Motorized, up to 125 kg curtainup to 100 cm central overlapComponents1T01 - Straight rail1T01C-S - Curved rail for splitting1T02 - Connection set1T03 - End stop1KS - End stop1T04 - Overlap bridge1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T24 - Side cord support1T15 - Limit switch arm for 1T11 + 1T501T50 - Limit switch for 1T11 + 1T152DR2-RDS2QEM-7G1-152QE∙M0 - Panou de comanda M0 3E - Franghie Poly Ø 8 mm

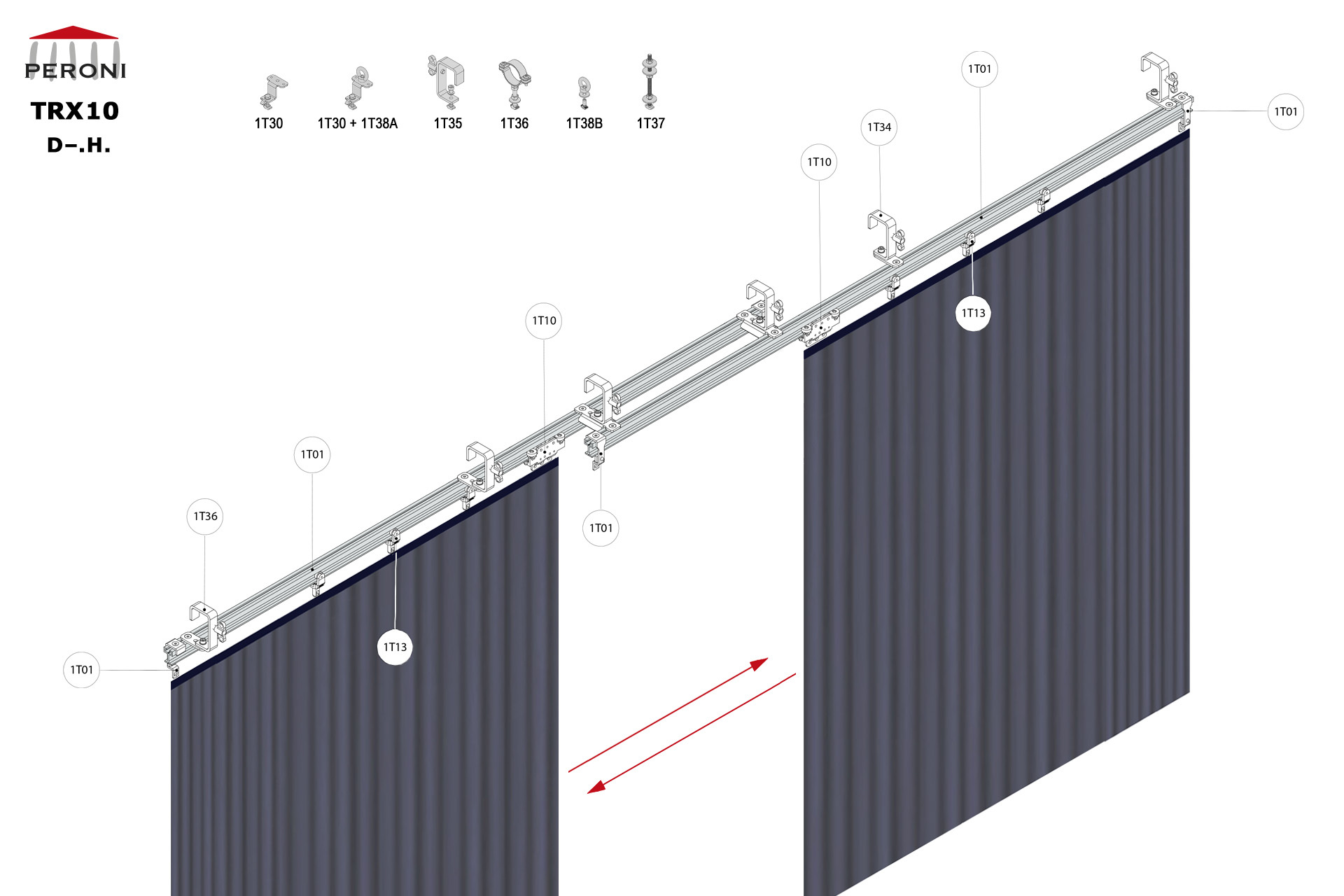

D-.H. configuration track D-. Straight double rail central openingH. Hand pulled uncorded walk-alongcentral overlap exceeding 50 cmComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T10 - Master carrier1T13 - 2 Wheel runner

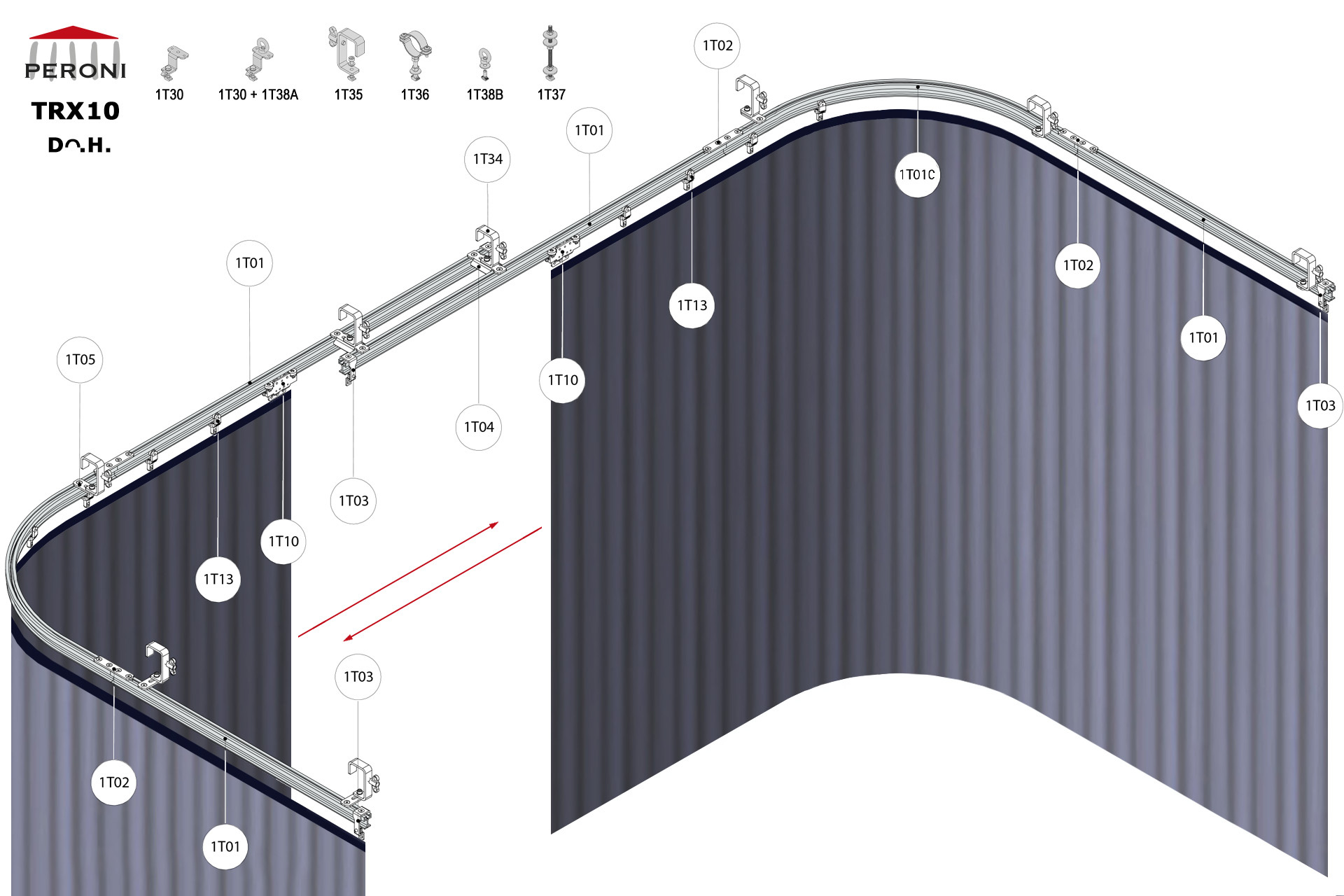

Dᴖ.H. configuration track Dᴖ. Curved double rail central openingH. Hand pulled uncorded walk-alongcentral overlap exceeding 50 cmComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T10 - Master carrier1T13 - 2 Wheel runner

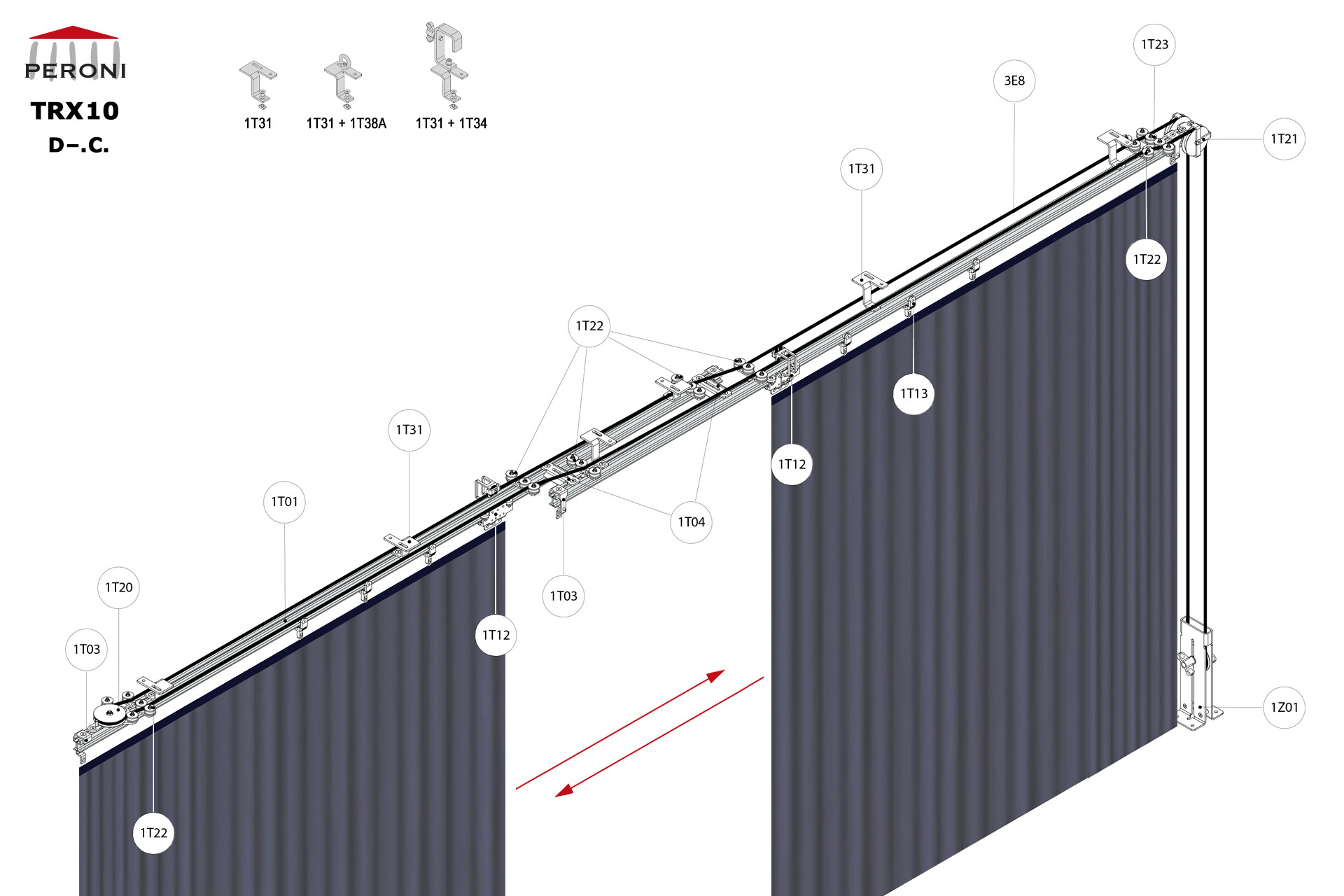

D-.C. configuration track D-. Straight double rail central openingC. Corded manualcentral overlap exceeding 50 cmComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1Z01 - See all options3E - Franghie Poly Ø 8 mm

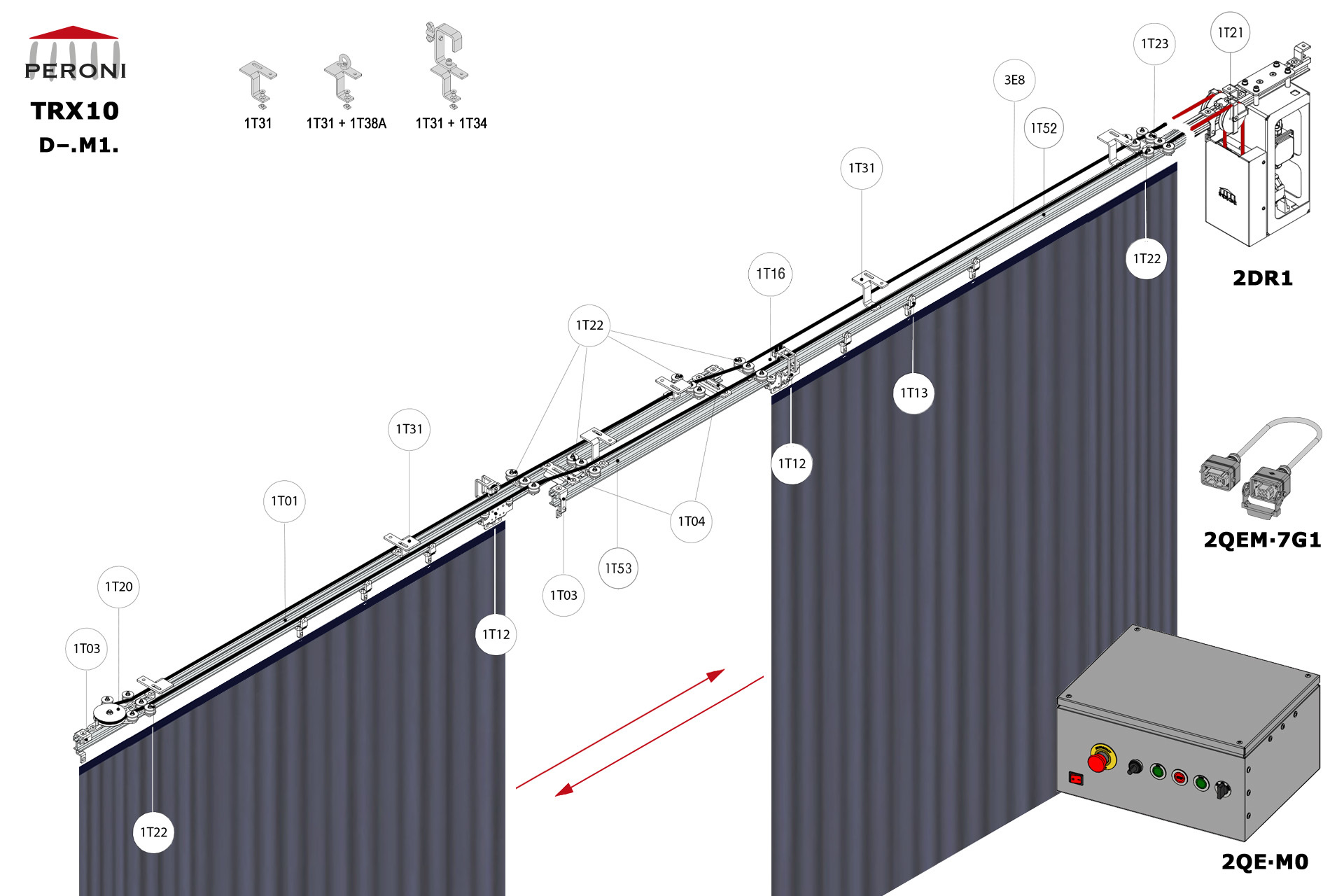

D-.M1. configuration track D-. Straight double rail central openingM1. Motorized, up to 300 kg curtaincentral overlap exceeding 50 cmComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Top cord limit switch arm1T52 - Top cord limit switch with pulley1T53 - Top cord limit switch2DR1-RDS2QEM-7G1-152QE∙M0 - Panou de comanda M0 3E - Franghie Poly Ø 8 mm

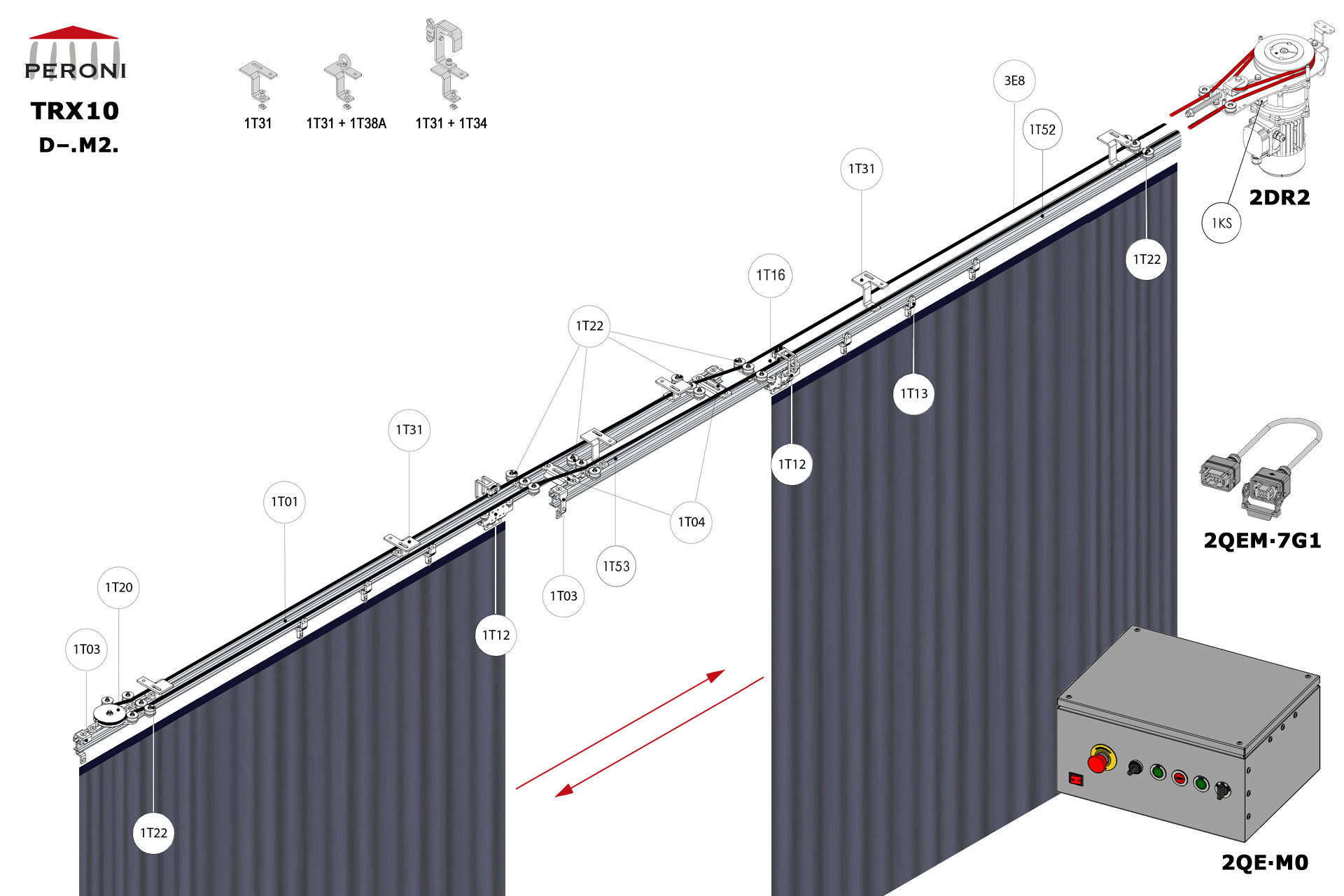

D-.M2. configuration track D-. Straight double rail central openingM2. Motorized, up to 125 kg curtaincentral overlap exceeding 50 cmComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1KS - End stop1T04 - Overlap bridge1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm for 1T12+1T52+1T531T52 - Top cord limit switch with pulley1T53 - Top cord limit switch2DR2-RDS2QEM-7G1-152QE∙M0 - Panou de comanda M0 3E - Franghie Poly Ø 8 mm

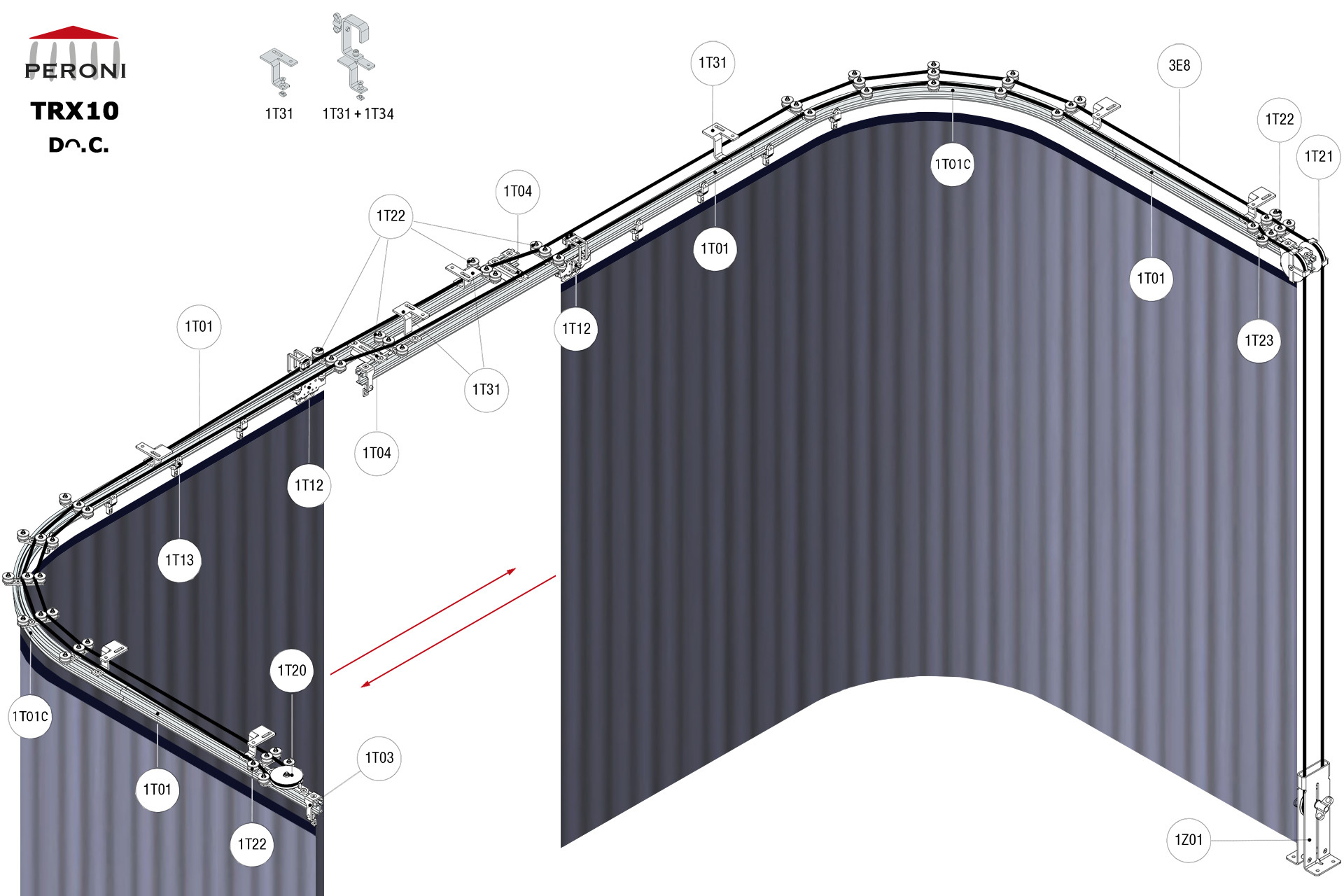

Dᴖ.C. configuration track Dᴖ. Curved double rail central openingC. Corded manualcentral overlap exceeding 50 cmComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T04 - Spacer plate1T12 - Top cord master carrier1T13 - 2 wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1Z01 - See all options3E - Franghie Poly Ø 8 mm

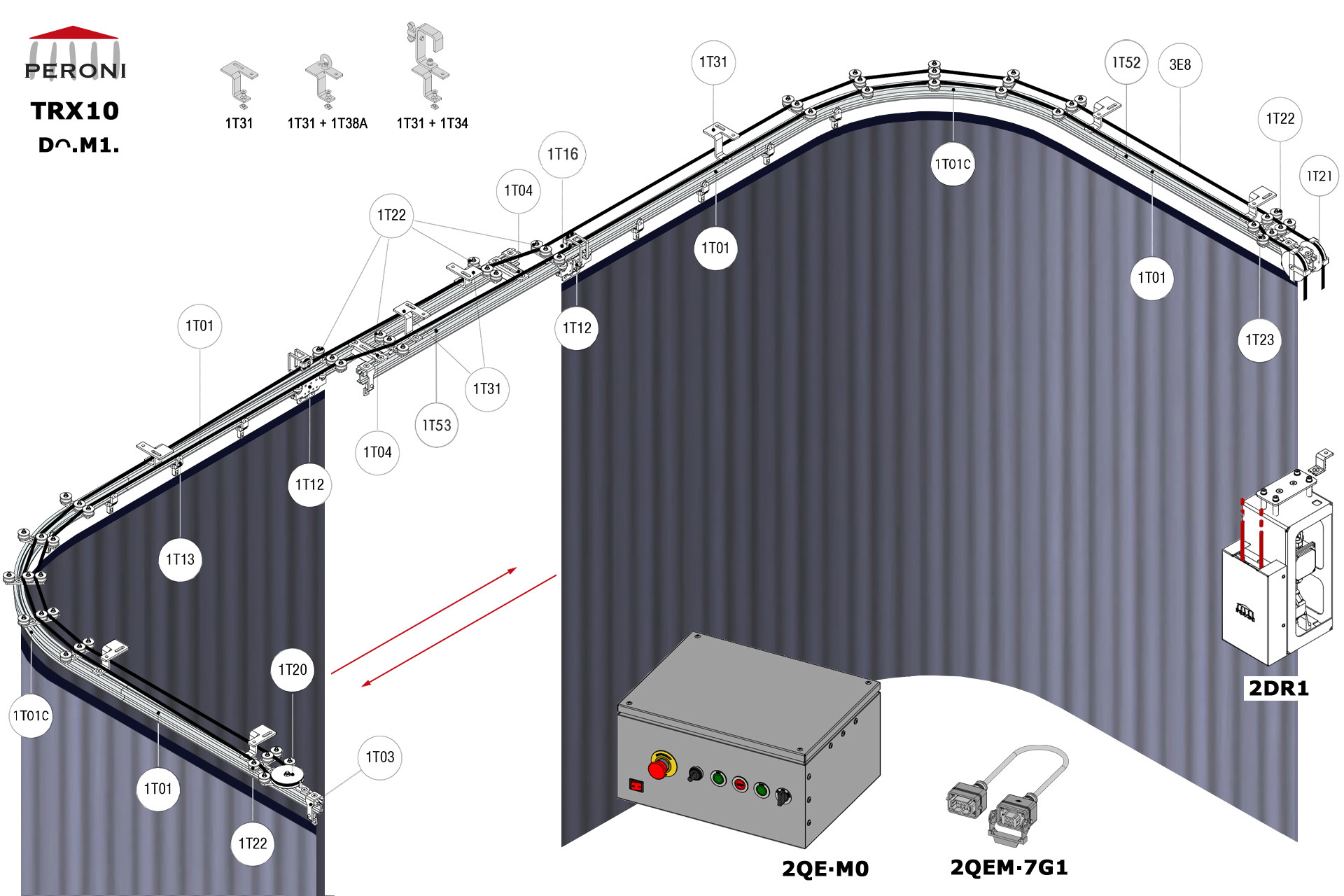

Dᴖ.M1. configuration track Dᴖ. Straight double rail central openingM1. Motorized, up to 200 kg curtaincentral overlap exceeding 50 cmComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Top cord limit switch arm1T52 - Top cord limit switch with pulley1T53 - Top cord limit switch2DR1-RDS2QEM-7G1-152QE∙M0 - Panou de comanda M0 3E - Franghie Poly Ø 8 mm

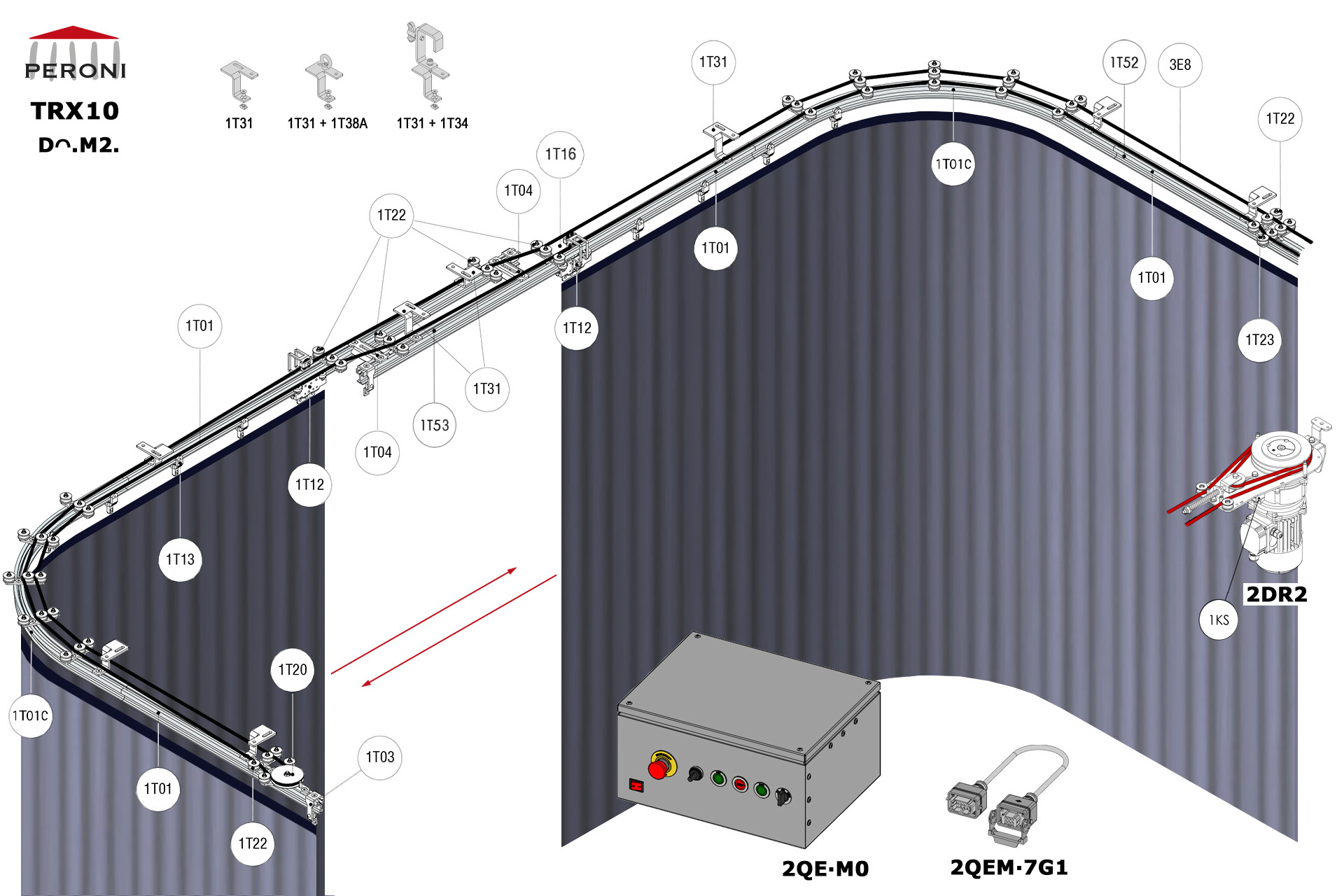

Dᴖ.M2. configuration track Dᴖ. Straight double rail central openingM2. Motorized, up to 100 kg curtaincentral overlap exceeding 50 cmComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1KS - End stop1T04 - Overlap bridge1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Top cord limit switch arm1T52 - Top cord limit switch with pulley1T53 - Top cord limit switch2DR2-RDS2QEM-7G1-152QE∙M0 - Panou de comanda M0 3E - Franghie Poly Ø 8 mm

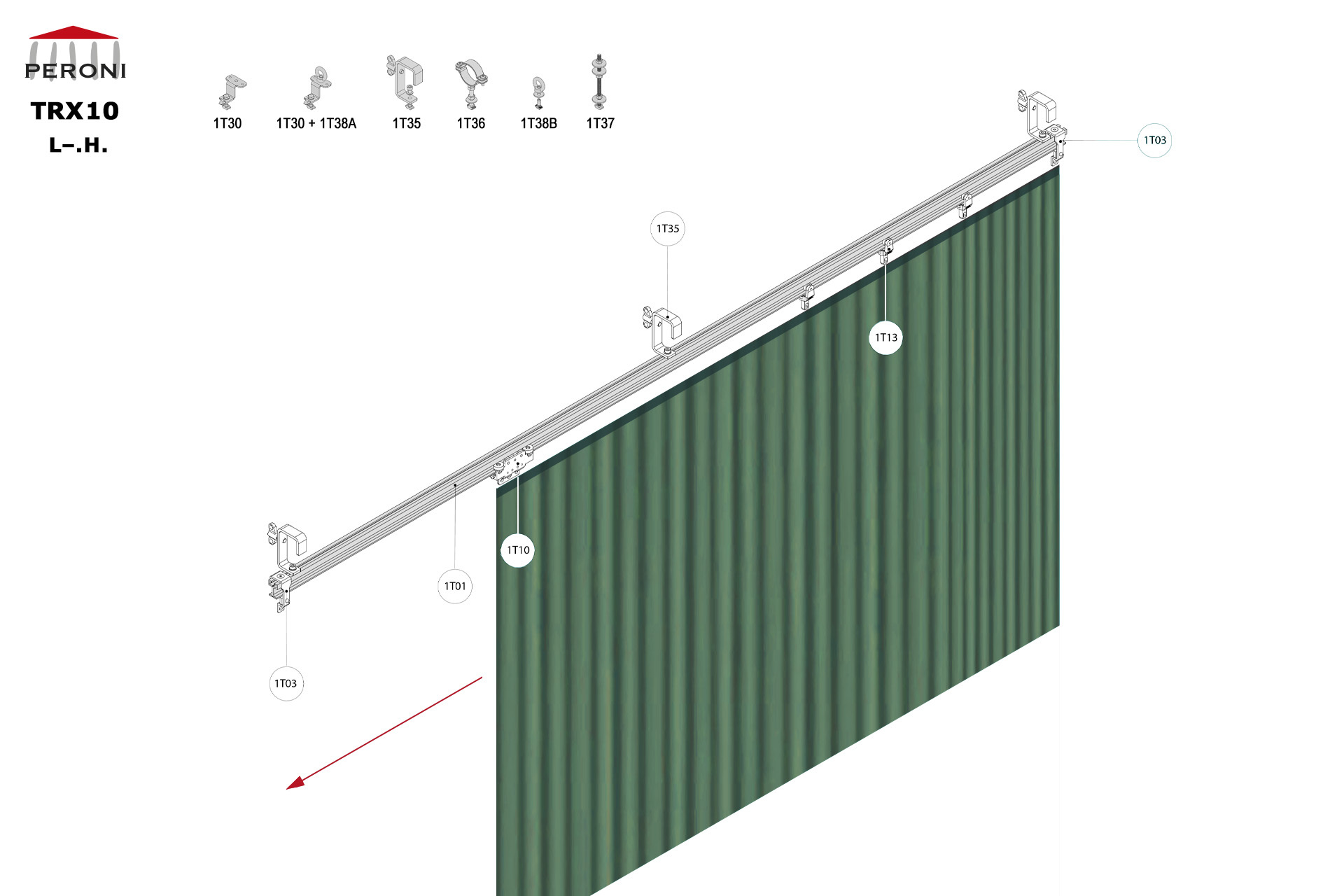

L-.H. configuration track L-. Straight rail side openingH. Hand pulled uncorded walk-alongComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T10 - Master carrier1T13 - 2 Wheel runner

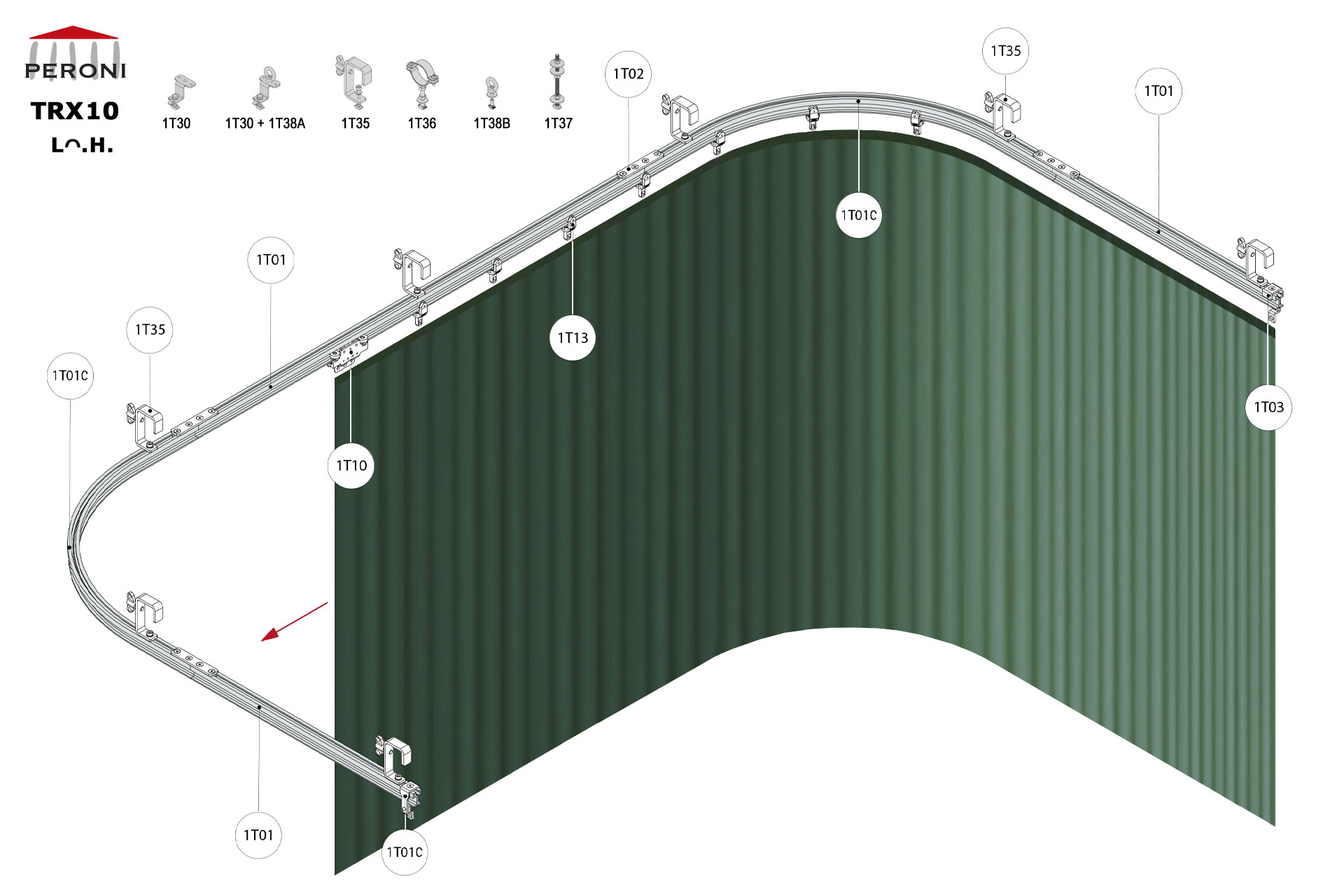

Lᴖ.H. configuration track Lᴖ. Curved rail side openingH. Hand pulled uncorded walk-alongComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T10 - Master carrier1T13 - 2 Wheel runner

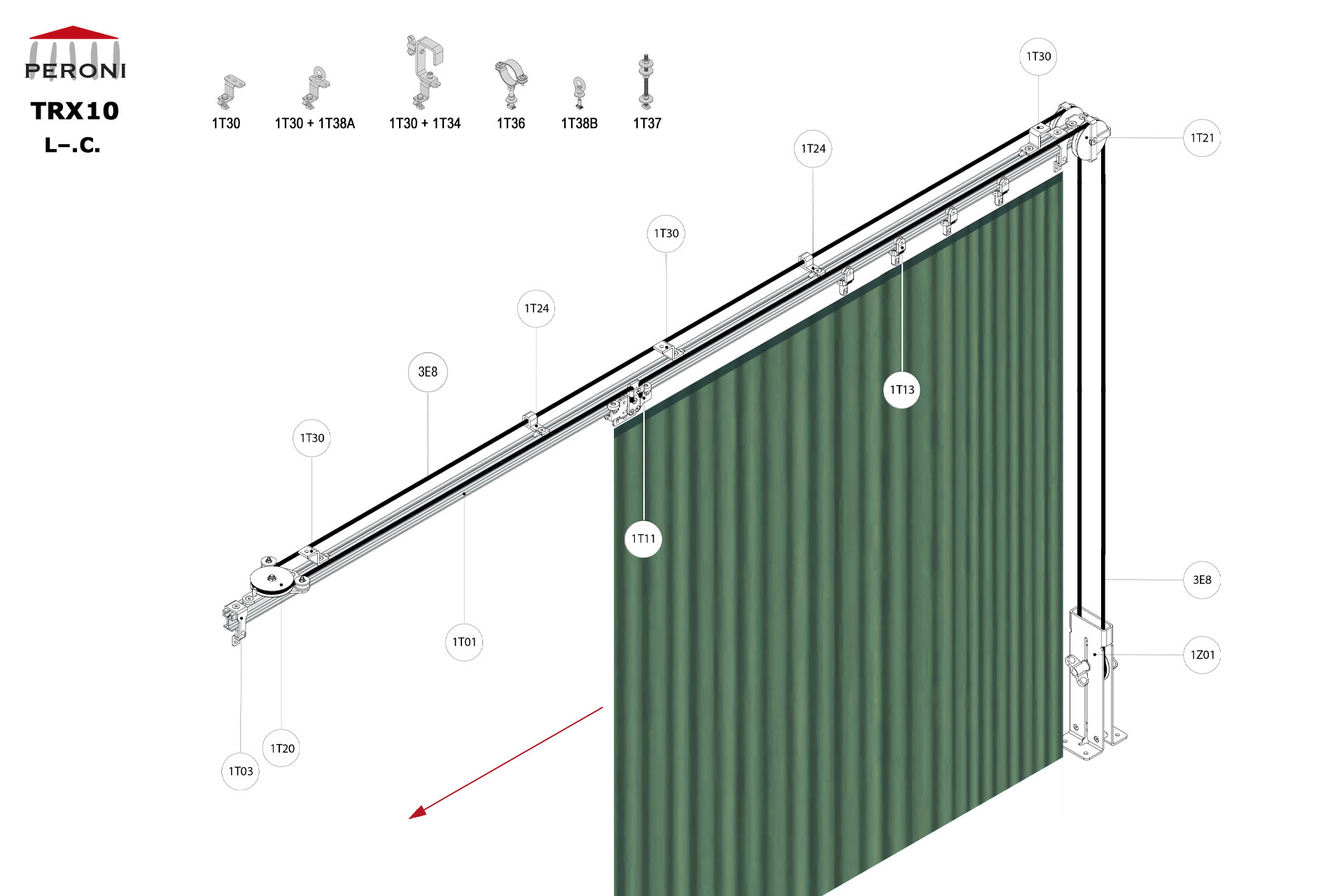

L-.C. configuration track L-. Straight rail side openingC. Corded manualComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T24 - Side cord support1Z01 - See all options3E - Franghie Poly Ø 8 mm

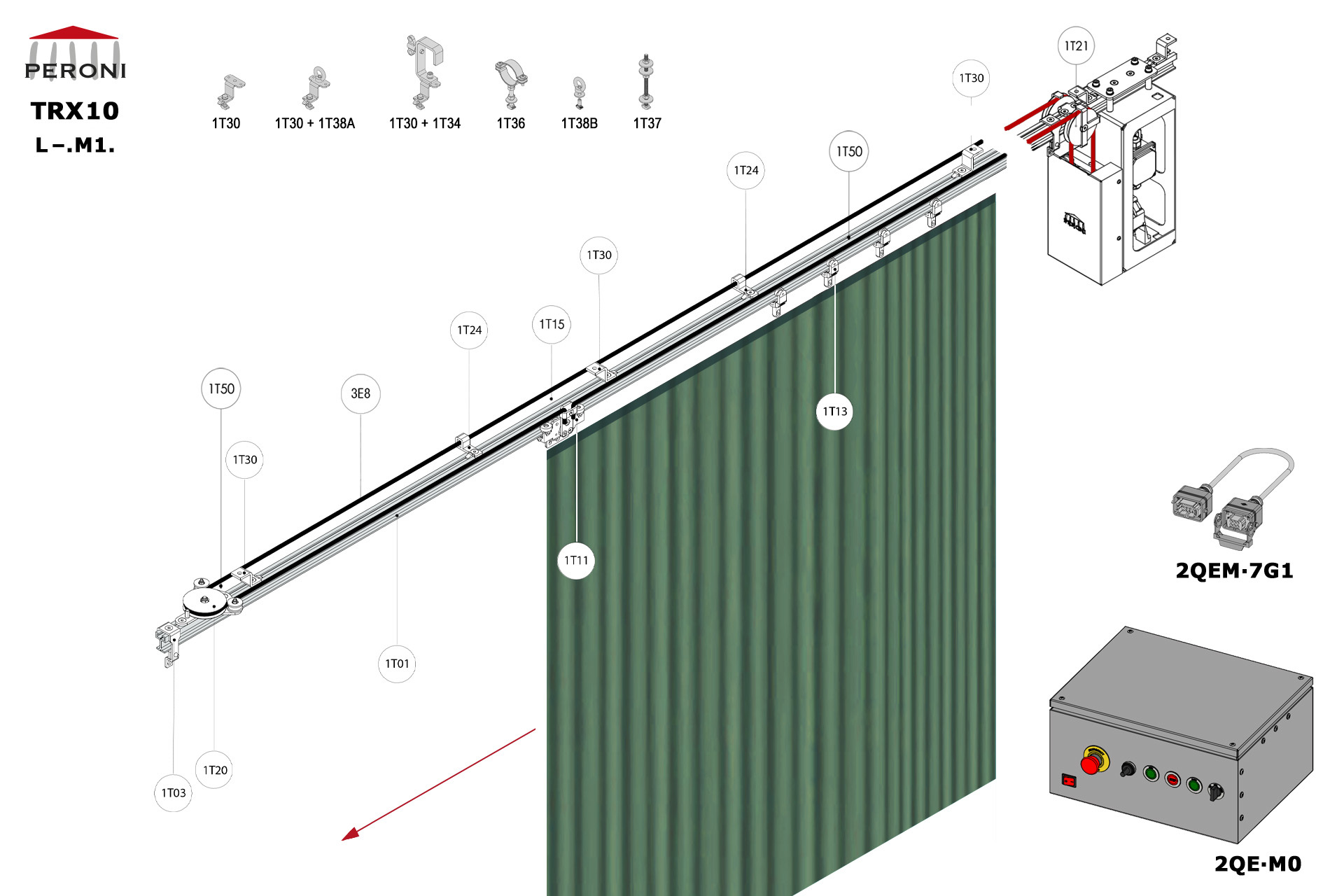

L-.M1. configuration track L-. Straight rail side openingM1. MotorizedComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T24 - Side cord support1T15 - Riscontro finec. per 1T11 + 1T501T50 - Finecorsa per 1T11 + 1T152DR1-RDS2QEM-7G1-152QE∙M0 - Panou de comanda M0 3E - Franghie Poly Ø 8 mm

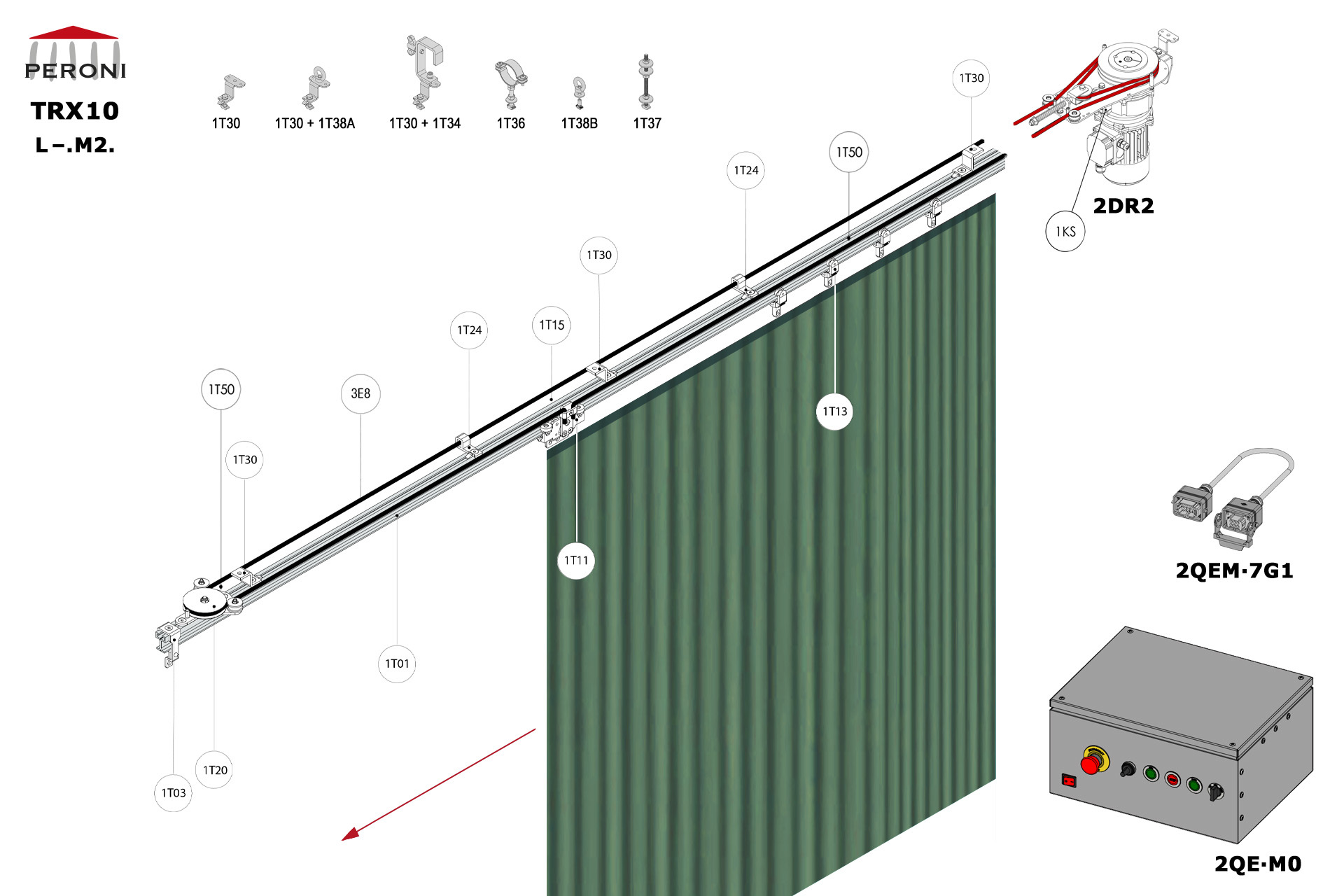

L-.M2. configuration track L-. Straight rail side openingM2. Motorized, up to 125 kg curtainComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1KS - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T24 - Side cord support1T15 - Riscontro finec. per 1T11 + 1T501T50 - Finecorsa per 1T11 + 1T152DR2-RDS2QEM-7G1-152QE∙M0 - Panou de comanda M0 3E - Franghie Poly Ø 8 mm

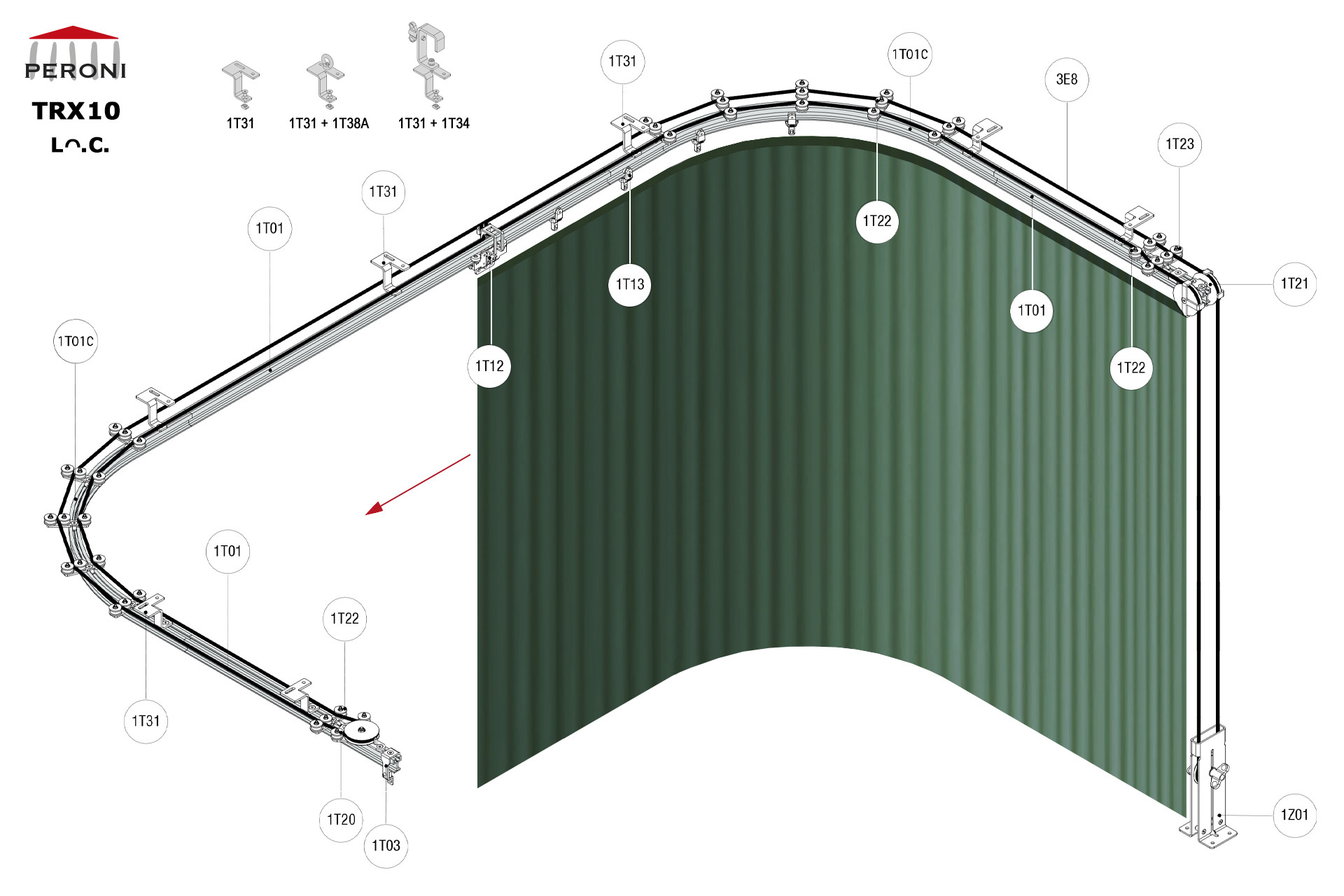

Lᴖ.C. configuration track Lᴖ. Curved rail side openingC. Corded manualComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1Z01 - See all options3E - Franghie Poly Ø 8 mm
Lᴖ.M1. configuration track Lᴖ. Straight double rail central openingM1. Motorized, up to 200 kg curtainComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm for 1T12+1T52+1T531T52 + 1T53 - Limit switch for 1T12+1T162DR1-RDS2QEM-7G1-152QE∙M0 - Panou de comanda M0 3E - Franghie Poly Ø 8 mm

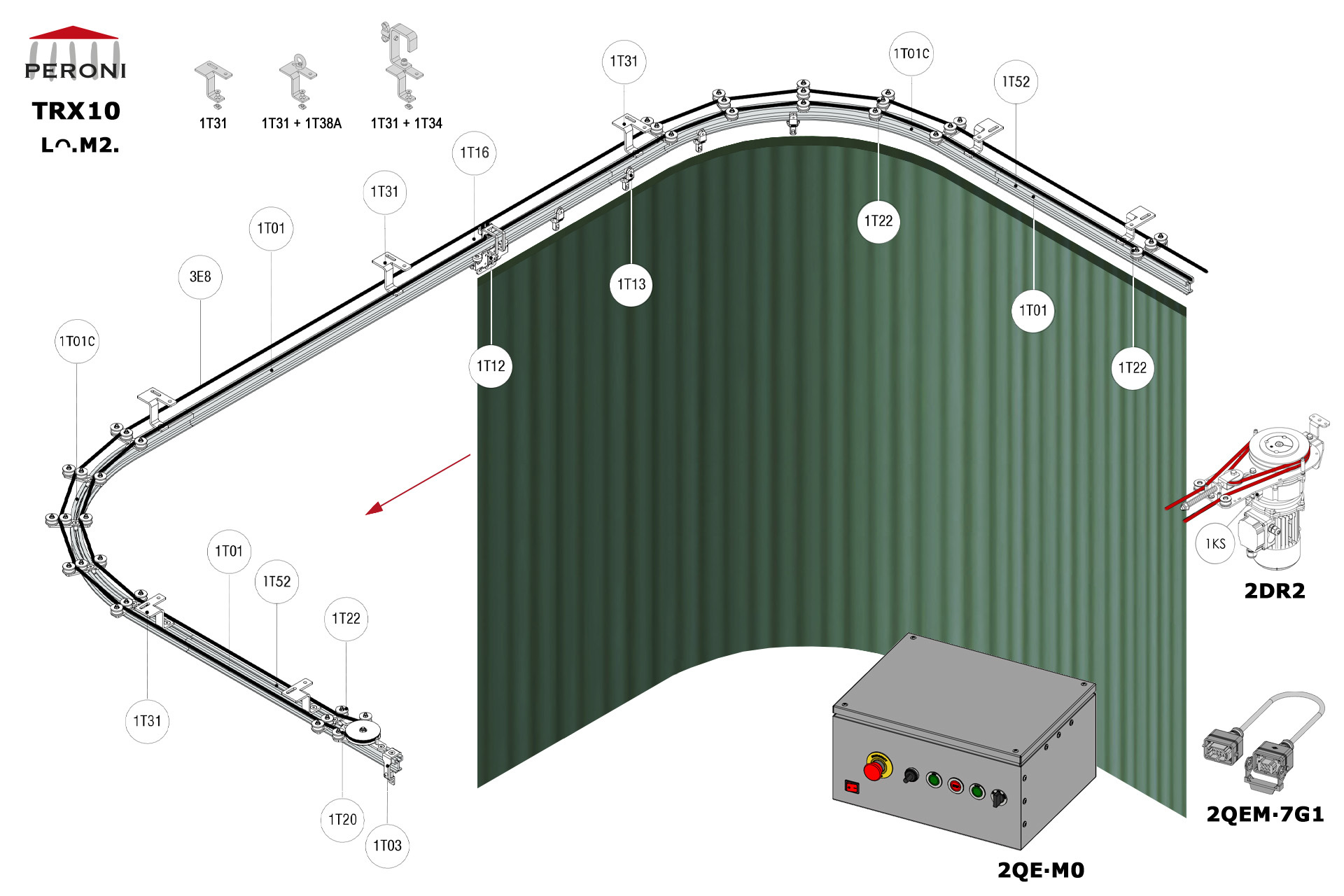

Lᴖ.M2. configuration track Lᴖ. Straight double rail central openingM2. Motorized, up to 100 kg curtainComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1KS - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm for 1T12+1T52+1T531T52 + 1T53 - Limit switch for 1T12+1T162DR2-RDS2QEM-7G1-152QE∙M0 - Panou de comanda M0 3E - Franghie Poly Ø 8 mm
