1T - TRX



TRX - Sisteme de sine Pentru:- cortine de greutate medie și siparii- ciclorame- elemente de scenă ușoare
Vezi toate
Rail and components 1T01 - Straight rail1T02 - Connection set1T02T - Connection set for touring1T03 - End stop1T04 - Overlap bridge1T05 - Offset plate
Carriers 1T10 - Master carrier1T11 - Side cord master carrier1T12 - Top cord master carrier1T13 - 2-wheel runner1T14 - Overlap arms Kit (2 pieces)1T15 - Side cord limit switch arm1T16 - Top cord limit switch arm
Pulleys 1T20 - Return pulley1T21 - Head double pulley1T22 - Top cord guide1T23 - Top cord aligner1T24 - Side cord support
1Z - Hand Line Pulleys 1Z01 - Adjustable floor pulley1Z02 - Weight floor pulley1Z03 - Spring loaded floor pulley1Z04 - Floor pulley with foot stirrup
Suspension parts 1T30 - Suspension bracket1T31 - Central cord suspension bracket1T34 - Hook clamp - Bracket fixing1T35 - Hook clamp - Rail fixing1T36 - Pipe collar Ø 50 mm - Rail fixing1T36A - Pipe collar Ø 50 mm - Bracket fixing1T38A - Eyenut - Bracket fixing1T38B - Eyenut - Rail fixing
Suspension parts 1Z10∙250 - Suportul de perete 250 mm1Z10∙400 - Suportul de perete 400 mm1Z20Mrsatrv1T37 - Studding bar 15 cm - Rail fixing
Cibeles, ''Colgando del Centro'' Example of arrangement as an area for events of the central passage part of a monumental historic building in Madrid.The project uses a TRX track system with manual walk along operation ...
Aplicații
TRX este un sistem modular profesional pentru manipularea orizontală a următoarelor:
- cortine de greutate medie și siparii
- ciclorame
- elemente de scenă ușoare
Soluția perfectă pentru scene, studiouri, târguri, săli de conferință, etc.
Caracteristici
- asamblare rapidă și ușoară, ideală pentru turnee
- robustețe
- funcționare silențioasă
- mare versatilitate
- gamă extinsă de componente
- configurații curbate ușor realizabile
- configurații motorizate ușor realizabile
- testat și foarte fiabille

Rail
- profil de aluminiu extrudat
- finisaj anodizat negru
- greutate de 946 g/m
- lungime maximă a șinei de 600 cm
- lungime maximă de 200 cm între două puncte de - suspendare
- rază minimă de curbare de 50 cm
- canaleta superioară pentru piulițe de canal

Transportatorii
- nylon wheels with ball bearings
- with anti-noise rubber bumpers
Sarcina de incarcare a rolelor
- 1T10 / 11 / 12 - Master Carriers: 30 kg
- 1T13 - 2 Wheel Runner: 10 kg
- 1KC - 4 Wheel Runner: 20 kg

Optiuni de montare
- pe tub / stanga de teatru
- pe ferme din alumini
- pe tavan
- pe perete cu 1Z10 - Suportul de perete
- pe grinzi metalice cu 1Z20 - Beam clamp
- suspendata cu cabluri sau lanturi

Configuratii principale
- S. Deschidere centrala pe o singura sina
- D. Deschidere centrala sina dubla
- L. Deschidere laterala
Comanda mișcării
- H. Prin tragere cu mana
- C. Manuala cu franghiel (1Z - Hand Line Pulleys)
- M. Motorizat (Motor R1 și Motor R2)
Soluții personalizate pot fi dezvoltate pentru a se potrivi nevoilor particulare.

Graficul de culoare

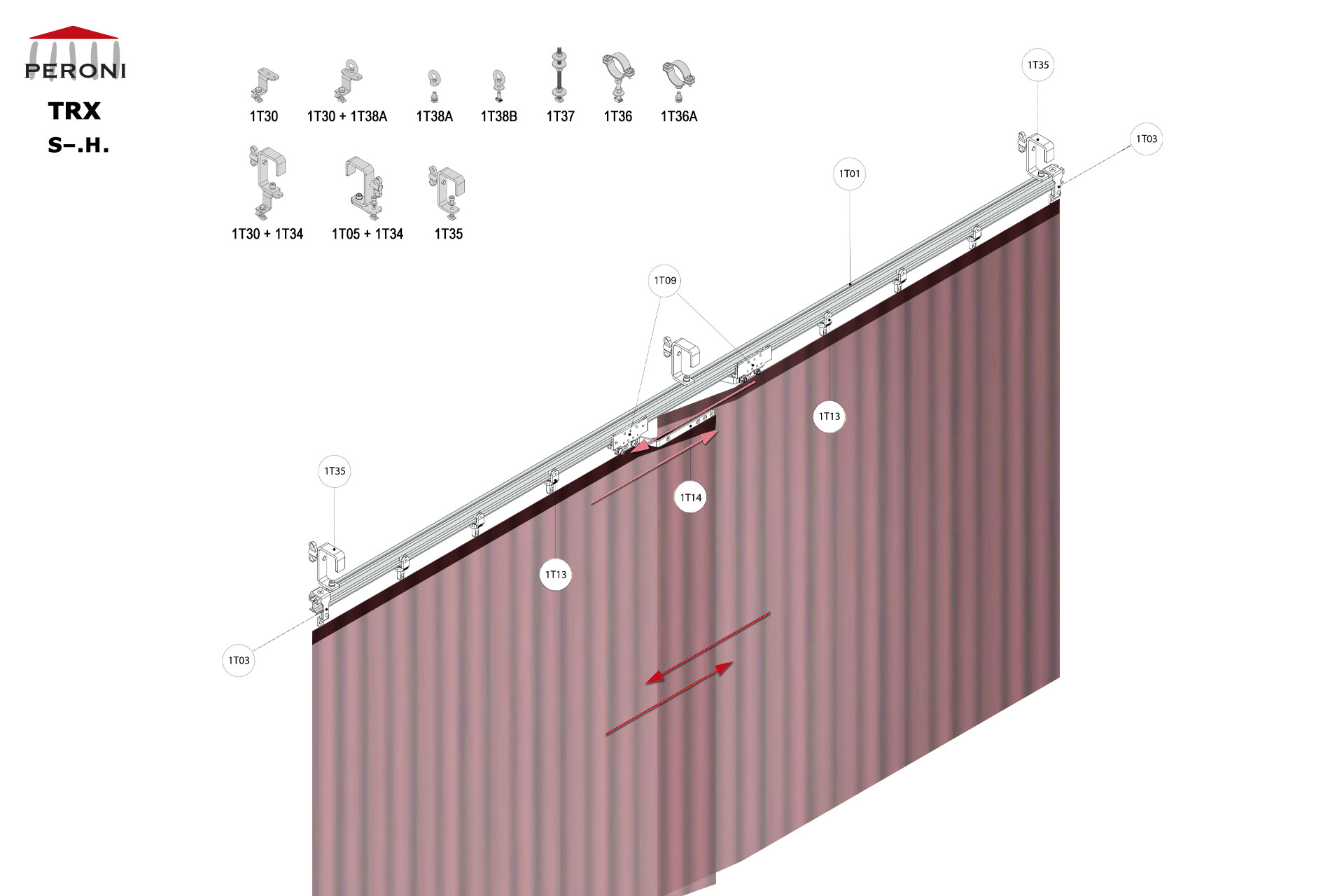

S-.H. configuration track S-. Straight single rail central openingH. Hand pulled uncorded walk-alongup to 50 cm central overlapComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T10 - Master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kit
Track configurație Sᴖ.H.with U shaped curve Sᴖ. Single rail central openingH. Hand pulled uncorded walk-alongfor central overlap up to 50 cmComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T10 - Master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kit
S-.C. configuration track S-. Straight single rail central openingC. Corded manualup to 50 cm central overlapComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T21 - Double pulley1T24 - Side cord support1Z01 - Vedeți toate opțiunile3E - Franghie Poly Ø 8 mm
S–.M1. configuration track S–. Straight single rail central openingM1. Motorized, up to 300 kg curtainup to 50 cm central overlapComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Return pulley1T21 - Head double pulley1T24 - Side cord support1T15 - Side cord limit switch arm1T50 - Side cord limit switch2DR1-RDS2QEM-7G1-152QEW - Panou de comanda W 3E - Franghie Poly Ø 8 mm
S-.M2. configuration track S-. Straight single rail central openingM2. Motorized, up to 125 kg curtainup to 50 cm central overlapComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1KS - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T24 - Side cord support1T15 - Limit switch arm for 1T11 + 1T501T50 - Limit switch for 1T11 + 1T152DR2-RDS2QEM-7G1-152QEW - Panou de comanda W 3E - Franghie Poly Ø 8 mm
Sᴖ.C. configuration track Sᴖ. Curved single rail central openingC. Corded manualup to 50 cm central overlapComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1Z01 - See all options3E - Franghie Poly Ø 8 mm
Sᴖ.M1. configuration track Sᴖ. Curved single rail central openingM1. Motorized, up to 200 kg curtainup to 50 cm central overlapComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm for 1T12+1T52+1T531T52 + 1T53 - Limit switch for 1T12+1T162DR1-RDS2QEM-7G1-152QEW - Panou de comanda W 3E - Franghie Poly Ø 8 mmFixing1T31 - Top cord suspension bracket1T34 - Hook clamp + bolt
Sᴖ.M2. configuration track Sᴖ. Curved single rail central openingM2. Motorized, up to 100 kg curtainup to 50 cm central overlapComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1KS - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm 1T12+1T52+1T531T52 + 1T53 - Limit switch 1T12+1T162DR2-RDS2QEM-7G1-152QEW - Panou de comanda W 3E - Franghie Poly Ø 8 mm

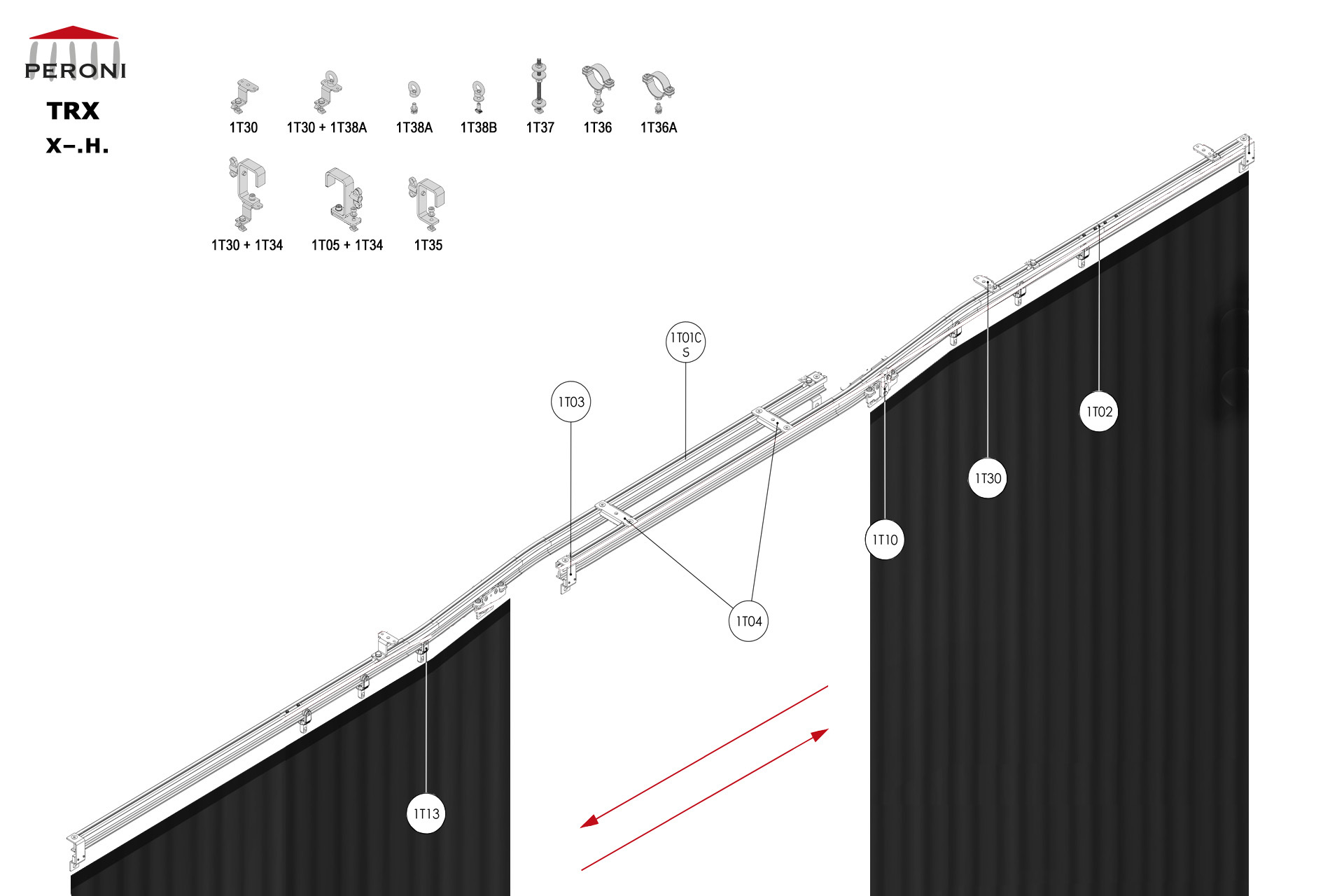

X-.H. configuration track X-. Straight split single rail central op.H. Hand pulled uncorded walk-alongup to 100 cm central overlapComponents1T01 - Straight rail1T01C-S - Curved rail for splitting1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T10 - Master carrier1T13 - 2 Wheel runner
X–.C. configuration track X–. Straight split single rail central op.C. Corded manualup to 100 cm central overlapComponents1T01 - Straight rail1T01C-S - Curved rail for splitting1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Return pulley1T21 - Head double pulley1T24 - Side cord support1Z01 - See all options3E - Franghie Poly Ø 8 mm
X-.M1. configuration track X-. Straight split single rail central op.M1. Motorized, up to 300 kg curtainup to 100 cm central overlapComponents1T01 - Straight rail1T01C-S - Curved rail for splitting1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T24 - Side cord support1T15 - Limit switch arm for 1T11 + 1T501T50 - Limit switch for 1T11 + 1T152DR1-RDS2QEM-7G1-152QEW - Panou de comanda W 3E - Franghie Poly Ø 8 mm
X-.M2. configuration track X-. Straight split single rail central op.M2. Motorized, up to 125 kg curtainup to 100 cm central overlapComponents1T01 - Straight rail1T01C-S - Curved rail for splitting1T02 - Connection set1T03 - End stop1KS - End stop1T04 - Overlap bridge1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T24 - Side cord support1T15 - Limit switch arm for 1T11 + 1T501T50 - Limit switch for 1T11 + 1T152DR2-RDS2QEM-7G1-152QEW - Panou de comanda W 3E - Franghie Poly Ø 8 mm

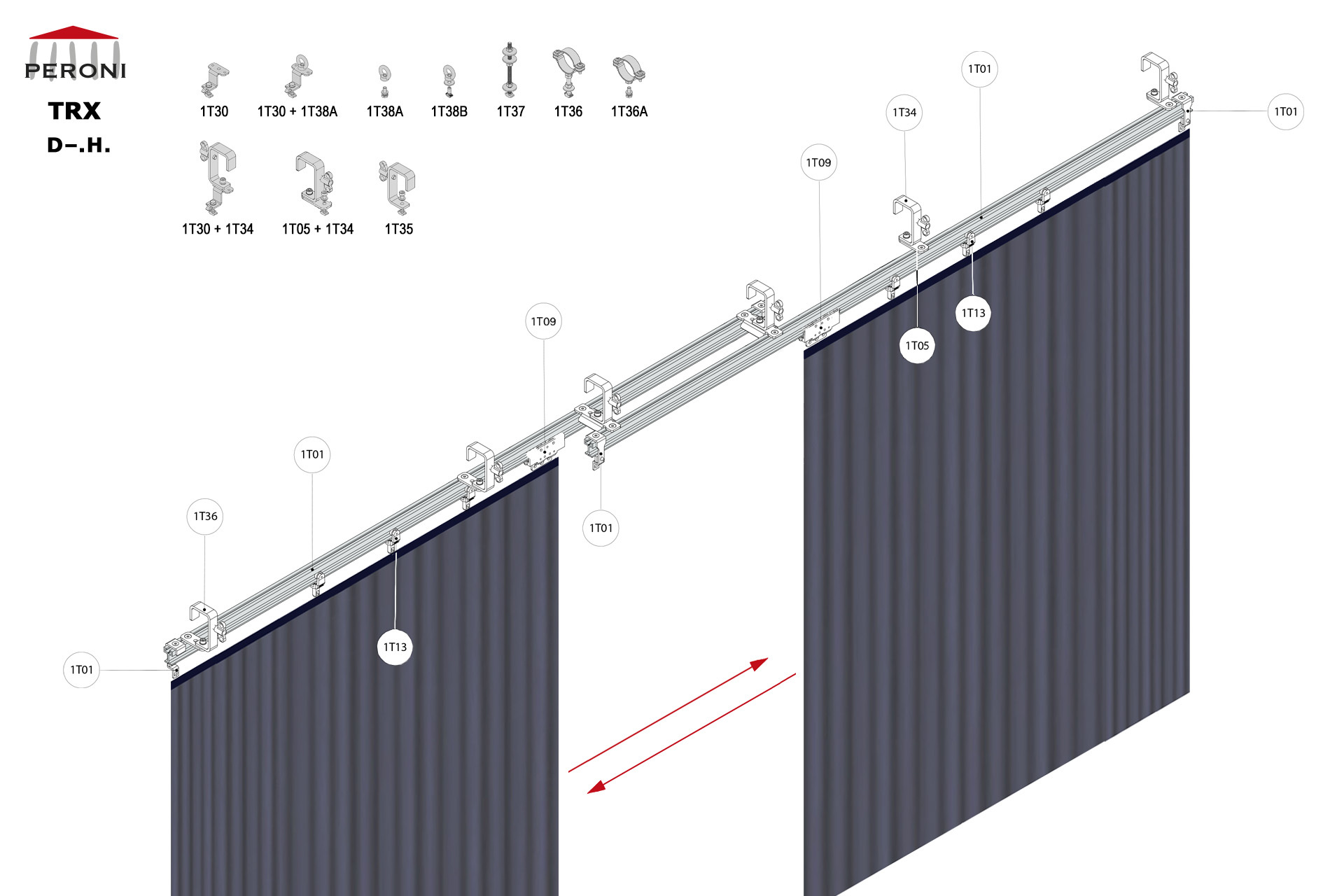

D-.H. configuration track D-. Straight double rail central openingH. Hand pulled uncorded walk-alongcentral overlap exceeding 50 cmComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T10 - Master carrier1T13 - 2 Wheel runner
Dᴖ.H. configuration track Dᴖ. Curved double rail central openingH. Hand pulled uncorded walk-alongcentral overlap exceeding 50 cmComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T10 - Master carrier1T13 - 2 Wheel runner
D-.C. configuration track D-. Straight double rail central openingC. Corded manualcentral overlap exceeding 50 cmComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1Z01 - See all options3E - Franghie Poly Ø 8 mm
D-.M1. configuration track D-. Straight double rail central openingM1. Motorized, up to 300 kg curtaincentral overlap exceeding 50 cmComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Top cord limit switch arm1T52 - Top cord limit switch with pulley1T53 - Top cord limit switch2DR1-RDS2QEM-7G1-152QEW - Panou de comanda W 3E - Franghie Poly Ø 8 mm
D-.M2. configuration track D-. Straight double rail central openingM2. Motorized, up to 125 kg curtaincentral overlap exceeding 50 cmComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1KS - End stop1T04 - Overlap bridge1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm for 1T12+1T52+1T531T52 - Top cord limit switch with pulley1T53 - Top cord limit switch2DR2-RDS2QEM-7G1-152QEW - Panou de comanda W 3E - Franghie Poly Ø 8 mm
Dᴖ.C. configuration track Dᴖ. Curved double rail central openingC. Corded manualcentral overlap exceeding 50 cmComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T04 - Spacer plate1T12 - Top cord master carrier1T13 - 2 wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1Z01 - See all options3E - Franghie Poly Ø 8 mm
Dᴖ.M1. configuration track Dᴖ. Straight double rail central openingM1. Motorized, up to 200 kg curtaincentral overlap exceeding 50 cmComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Top cord limit switch arm1T52 - Top cord limit switch with pulley1T53 - Top cord limit switch2DR1-RDS2QEM-7G1-152QEW - Panou de comanda W 3E - Franghie Poly Ø 8 mm

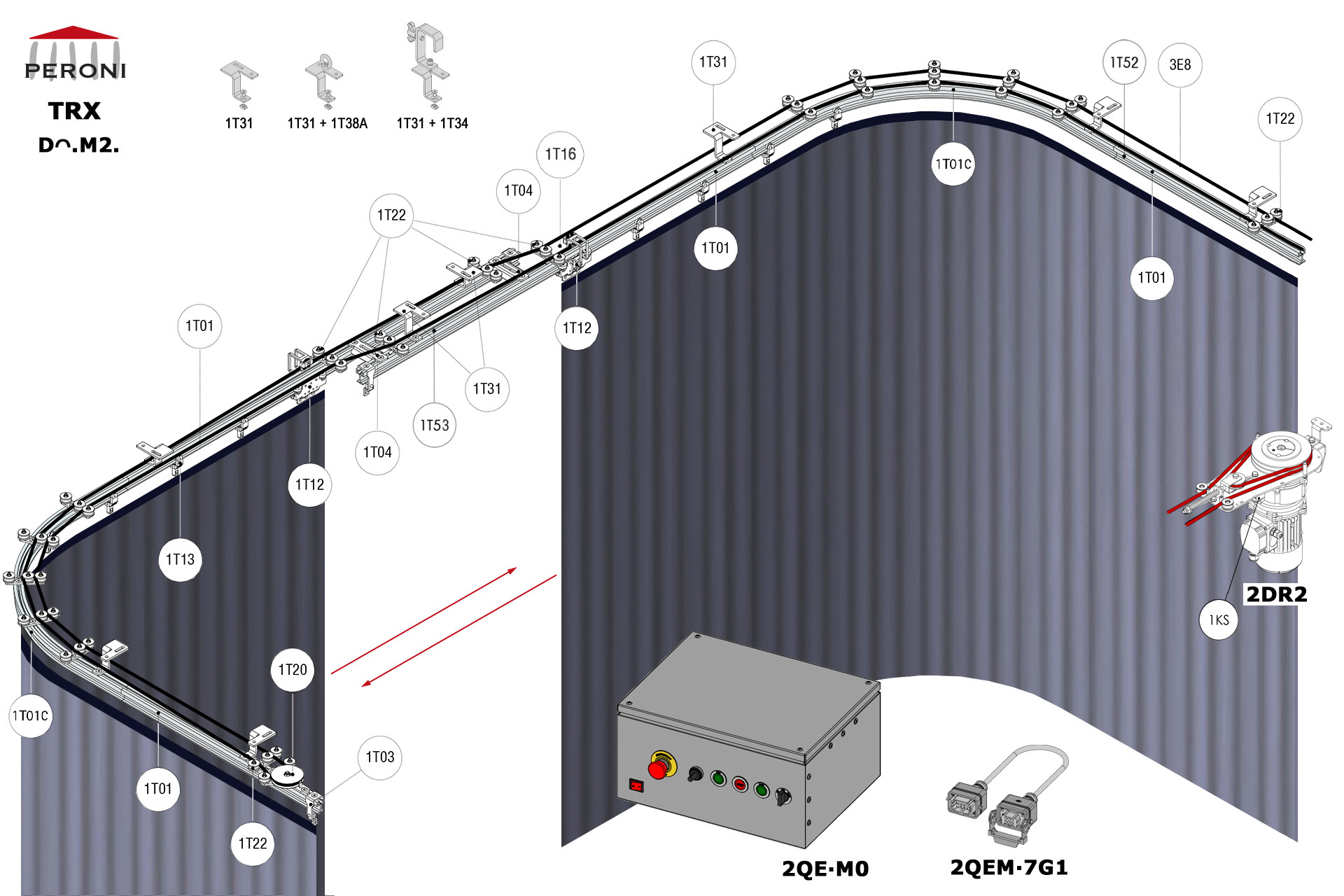

Dᴖ.M2. configuration track Dᴖ. Straight double rail central openingM2. Motorized, up to 100 kg curtaincentral overlap exceeding 50 cmComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1KS - End stop1T04 - Overlap bridge1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Top cord limit switch arm1T52 - Top cord limit switch with pulley1T53 - Top cord limit switch2DR2-RDS2QEM-7G1-152QEW - Panou de comanda W 3E - Franghie Poly Ø 8 mm

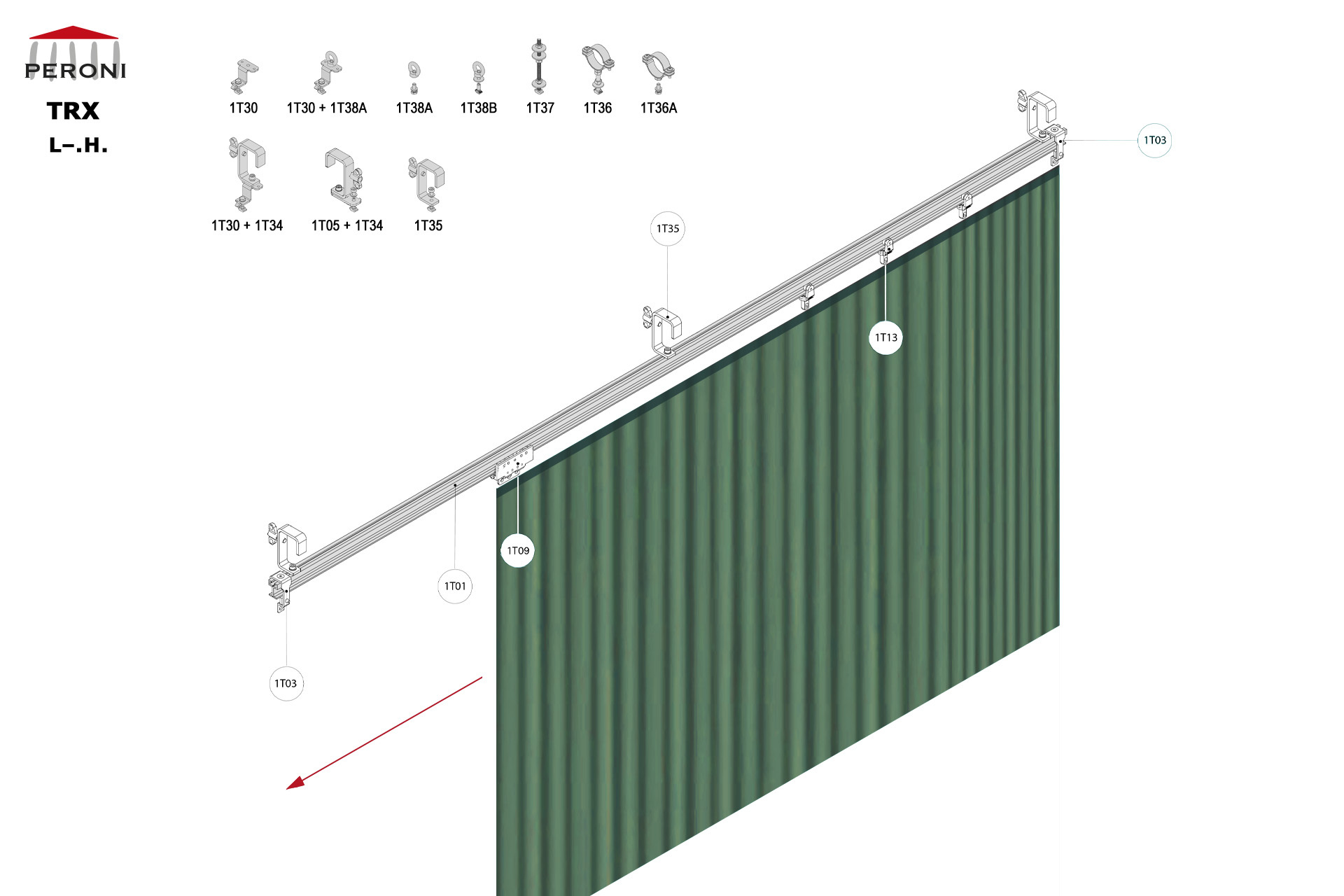

L-.H. configuration track L-. Straight rail side openingH. Hand pulled uncorded walk-alongComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T10 - Master carrier1T13 - 2 Wheel runner
Lᴖ.H. configuration track Lᴖ. Curved rail side openingH. Hand pulled uncorded walk-alongComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T10 - Master carrier1T13 - 2 Wheel runner
L-.C. configuration track L-. Straight rail side openingC. Corded manualComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T24 - Side cord support1Z01 - See all options3E - Franghie Poly Ø 8 mm
L-.M1. configuration track L-. Straight rail side openingM1. MotorizedComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T24 - Side cord support1T15 - Riscontro finec. per 1T11 + 1T501T50 - Finecorsa per 1T11 + 1T152DR1-RDS2QEM-7G1-152QEW - Panou de comanda W 3E - Franghie Poly Ø 8 mm
L-.M2. configuration track L-. Straight rail side openingM2. Motorized, up to 125 kg curtainComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1KS - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T24 - Side cord support1T15 - Riscontro finec. per 1T11 + 1T501T50 - Finecorsa per 1T11 + 1T152DR2-RDS2QEM-7G1-152QEW - Panou de comanda W 3E - Franghie Poly Ø 8 mm
Lᴖ.C. configuration track Lᴖ. Curved rail side openingC. Corded manualComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1Z01 - See all options3E - Franghie Poly Ø 8 mm
Lᴖ.M1. configuration track Lᴖ. Straight double rail central openingM1. Motorized, up to 200 kg curtainComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm for 1T12+1T52+1T531T52 + 1T53 - Limit switch for 1T12+1T162DR1-RDS2QEM-7G1-152QEW - Panou de comanda W 3E - Franghie Poly Ø 8 mm
Lᴖ.M2. configuration track Lᴖ. Straight double rail central openingM2. Motorized, up to 100 kg curtainComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1KS - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm for 1T12+1T52+1T531T52 + 1T53 - Limit switch for 1T12+1T162DR2-RDS2QEM-7G1-152QEW - Panou de comanda W 3E - Franghie Poly Ø 8 mm

Video & Documentare

TRX motorized track test

Motorized traveler curtain test

TRX track test, manual opening with curves

Motorized traveler curtain factory test

57270_4-01_main_components.pdf

57270_3-02_typical_suspending_arrgmts.pdf

57270_4-03_cording_diagrams_.pdf
