BGO - Gobelin

6 point sharkstooth scrim 970 / 1.140 cm

BGO - Gobelin tulle.01. white
View all

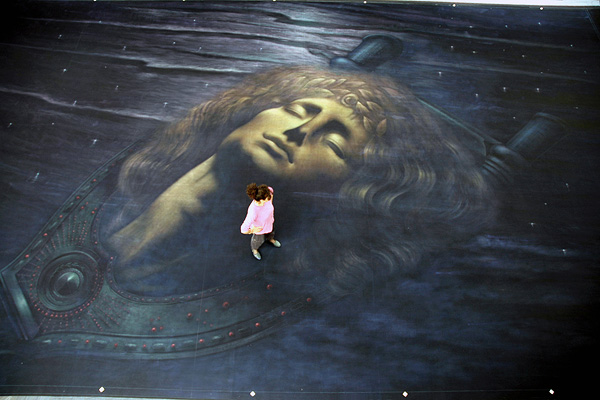

A detail of a realization with tulle BGO - Gobelin digital printing.The new printing technique Ultrawide Ecoprint can reach the width of 10.9 m without seams.
Yerevan Opera Theatre, ''The Last Judgement'' On the left, front projection on a backdrop made of BGO - Gobelin 03. grey tulle, 20 x h 11.3 m, behind which the choir is seen in transparency and backlit.
Teatro alla Scala, ''Madama Butterfly'' The close distance makes visible the mesh of 01. white BGO - Gobelin tulle.

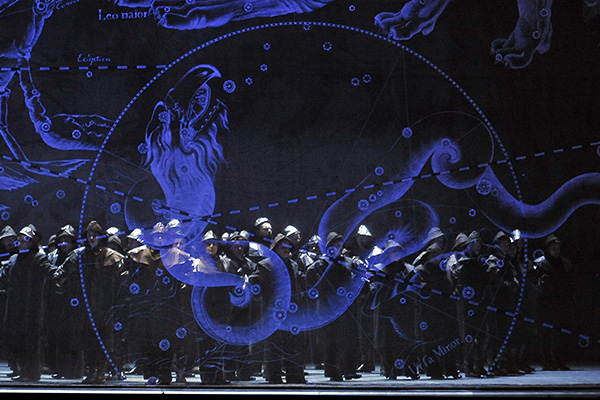

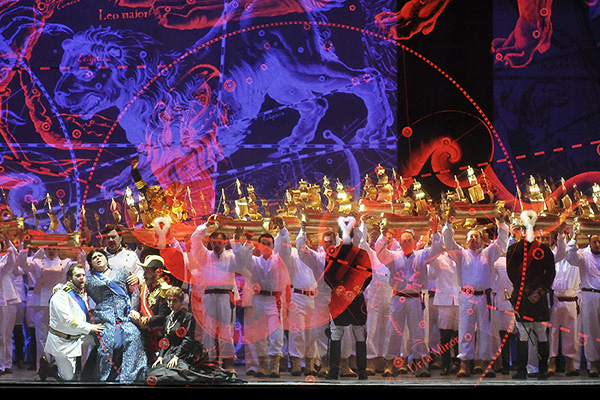

Teatro La Fenice, ''Otello'' The backdrop made of 99. black BGO - Gobelin tulle has a 16,5 x h 11,4 m size.The symbols of the zodiac have been painted by Paolino Libralato.
The BGO - Gobelin backdrop is illuminated here with red light that puts in evidence the painted subjects.Behind the choir, thanks to a blue illumination, the same zodiacal subjects appear painted on a backdrop made of ASC - Sceno muslin.The transparency of the tulle creates a auperimposition of the images that have been painted on the two layers.

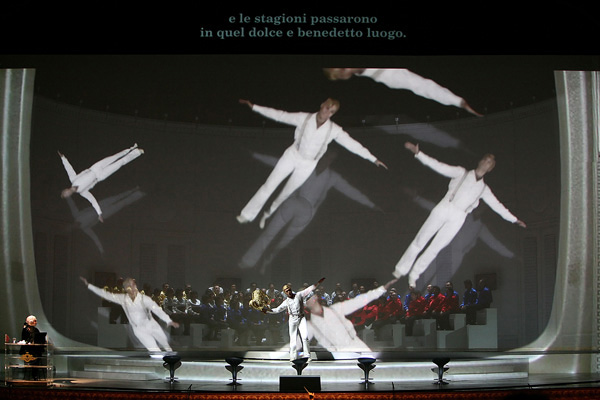

Teatro San Carlo, ''Candide'' The television monitor ''American Fifties'' style is obtained with the projection of its frame on a big backdrop made of 01. white BGO - Gobelin tulle.The figure that circles in air is projected both on the same backdrop and on a second backdrop made of 99. black BGO - Gobelin, installed in a rearward position at a short distance from the first one, of which it strengthens the intensity of the projection duplicating it in a more vanished way with a great stage effect.

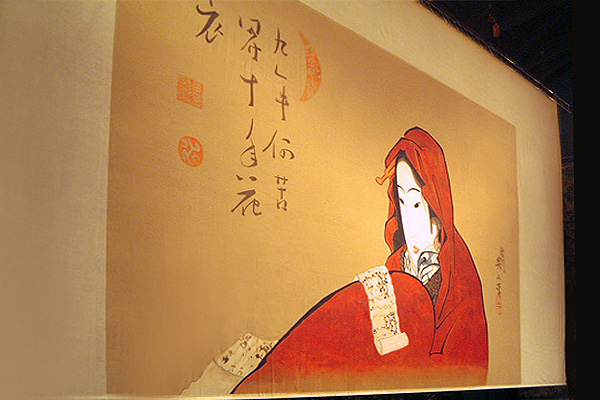

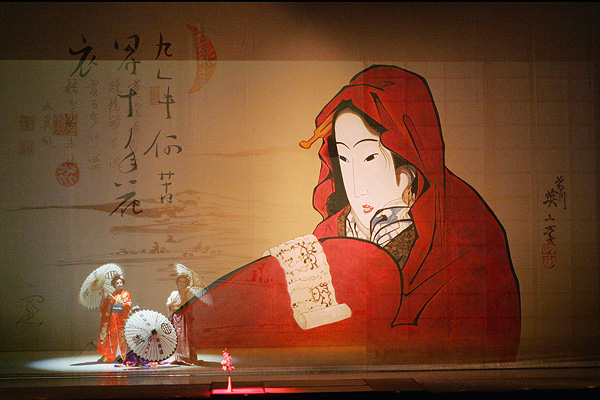

Teatro Verdi of Trieste, ''Madama Butterfly'' The red mantled big female bust and the big ideograms are painted on the beige background of a backdrop made of BGO - Gobelin tulle. The characters of Cio-cio-san and Suzuki, with their parasols are immediately behind, as well as the Japanese separé panels on the right.On the left, it can be seen in trasparency a ASC - Sceno muslin backdrop painted with some smaller ideograms and with a stylized landscape.

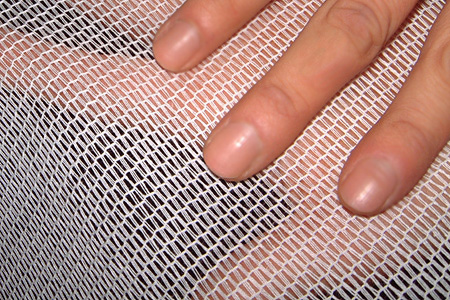

With its 6 point / 3 thread sharktooth woven, BGO - Gobelin is a cotton made Tulle for scenography characterized by an unmistakable trapezoidal and stable mesh that doesn't deform if submitted to light tensions.
It's a highly effective scrim for transparent projection screens, mainly used for bleed through effects.
Its transparency is particularly high thanks to the distribution in single threads of a large part of the weft and its weaving construction provides an ideal surface for painting and printing, giving magnificent results.
It is used for sound transparent coverings and for backdrops and ceilings bound to acoustical optimization.

Short guides about tulle:
Properties of tulle for scenography
Meshes and colours
Flame reaction
FR - flame retardant
FR certification
EN 13501-1 class B s1 d0
EN 13773 class 1
NFP 92-503 class M1
Mesh
trapezoidal ± 4,3 x 1,7 mm
Composition
100% cotton
Weight
100 g / m²
Width
970 cm
1.140 cm
Length
± 55 m
Packing method
folded
Available colours
see colour chart
Custom colours
minimum order quantity ± 55 m

Transparency
against light
Rating 5.0
Wall effect
with frontal lighting
Rating 5.0
Frontal projection
Rating 5.0 white
Rating 4.0 grey
Rating 2.0 black
Rear projection
Rating 5.0 white
Rating 4.0 grey
Rating 2.0 black
Paintability
Rating 5.0

Availabilty
by the metre
in full bolts
in tailor made creations

Colour chart

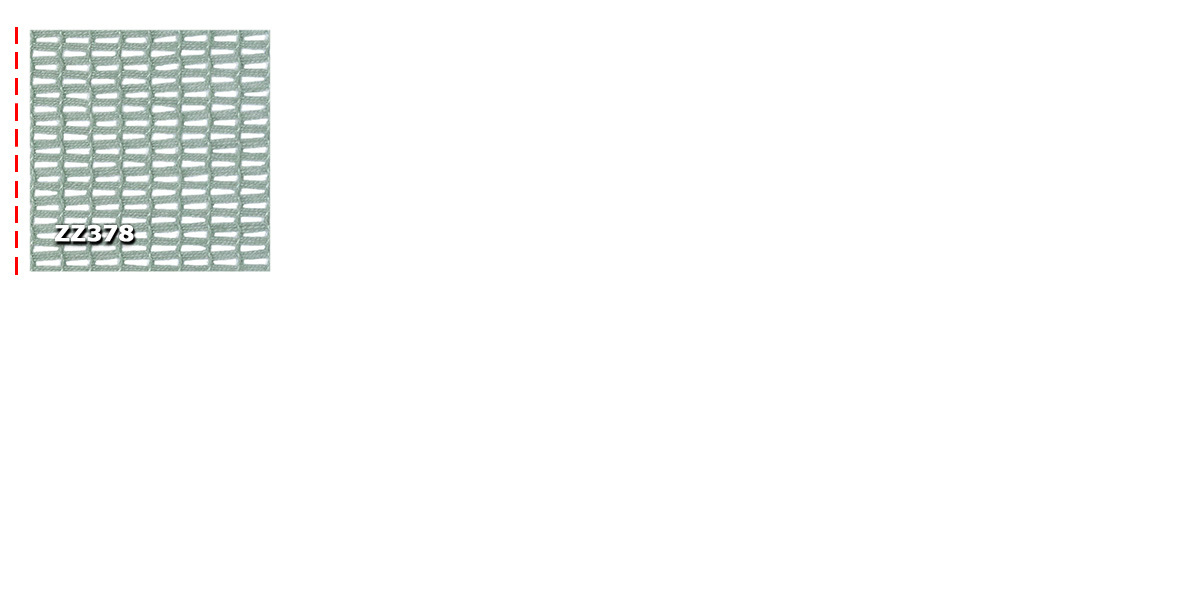

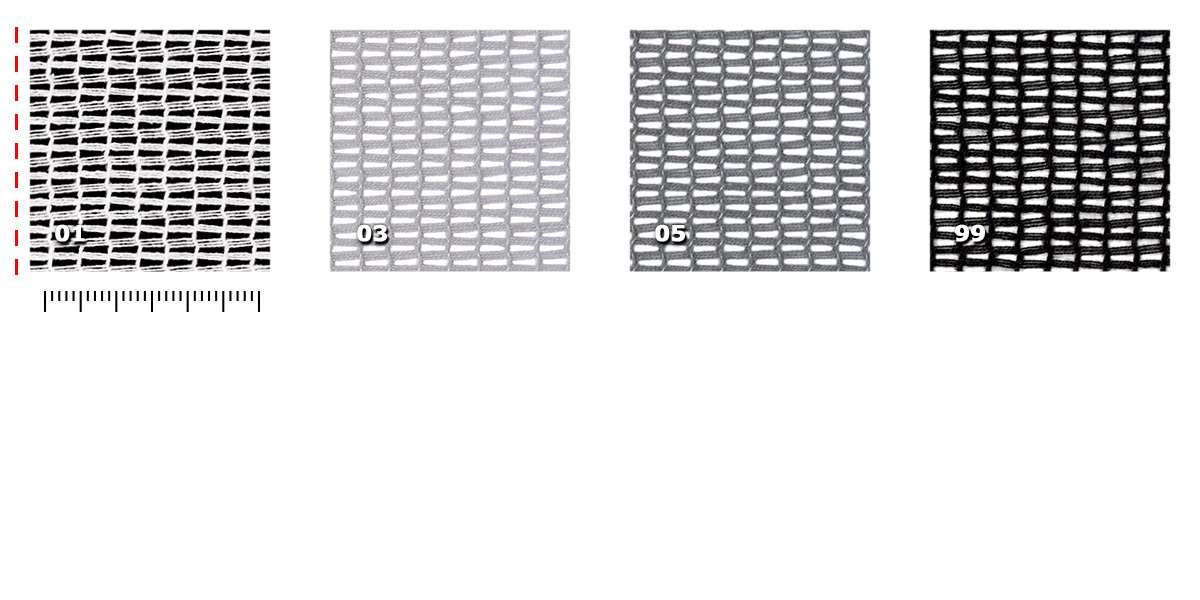

BGO - Gobelin01. white03. grey05. holo grey99. blackThe outlined red line identifies the position of the selvage in comparison with the mesh.

Video & Documentation

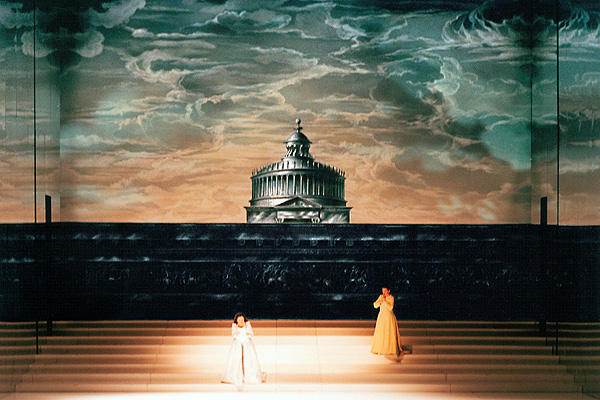

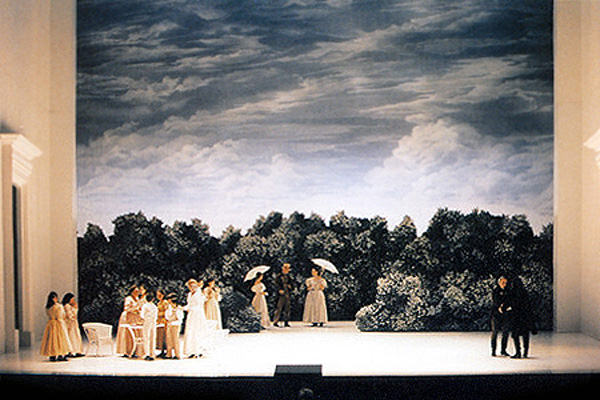

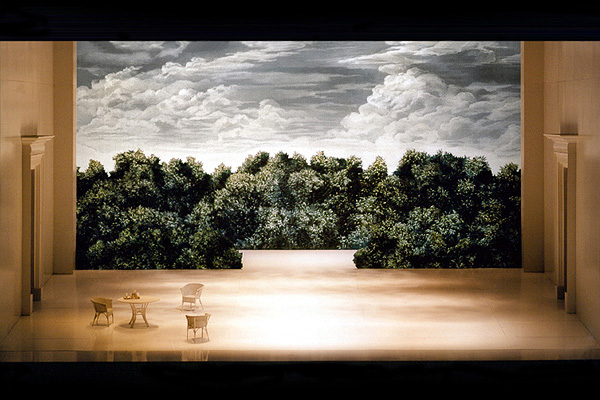

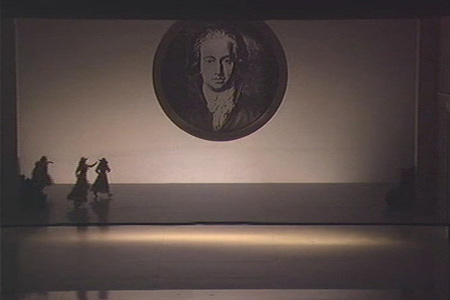

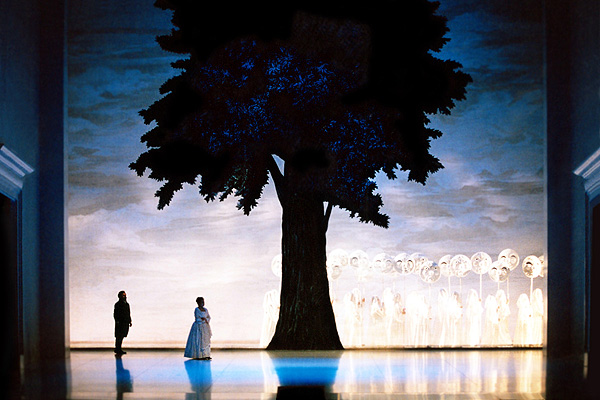

Teatro Carlo Felice of Genoa: ''Werther'' by Beni Montresor

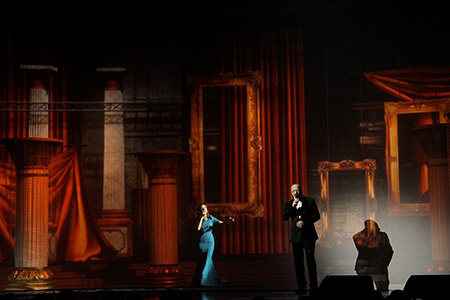

Projections on grey BGO - Tulle Gobelin

Teatro Dante Alighieri, ''Tenebrae''

This material was used for...

Claudio Baglioni, ''Q.P.G.A.''

Concerts

Eros Ramazzotti, ''Calma Apparente''

Concerts

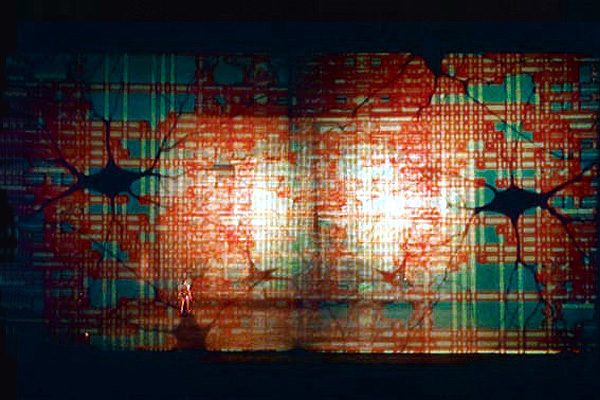

Lighting seminar

Events

Oggimusica, ''Zatoichi-e''

Dance

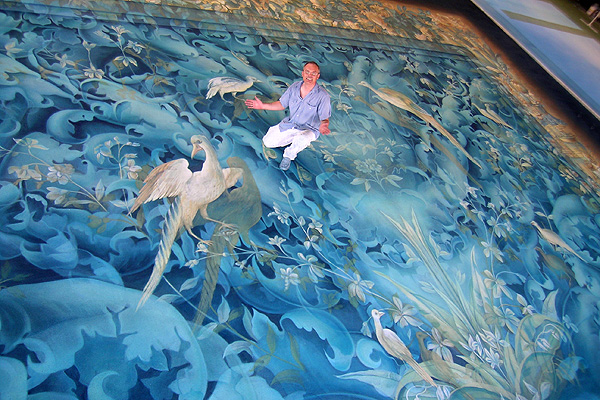

Opernhaus, ''Raymonda''

Dance

Summer concerts

Concerts

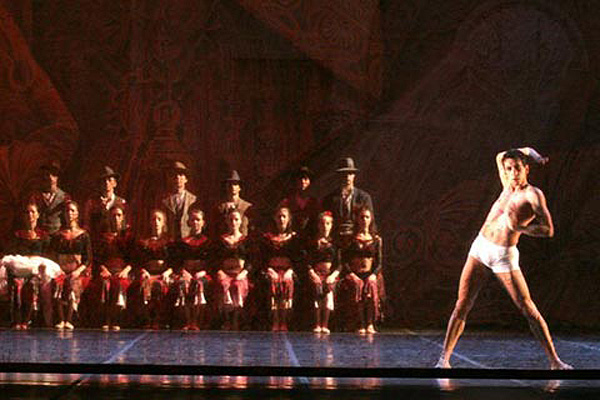

Teatro alla Scala, ''Carmen'', ballet

Dance

Teatro alla Scala, ''Madama Butterfly''

Lyric opera

Teatro alla Scala, ''The Girl of the West''

Lyric opera

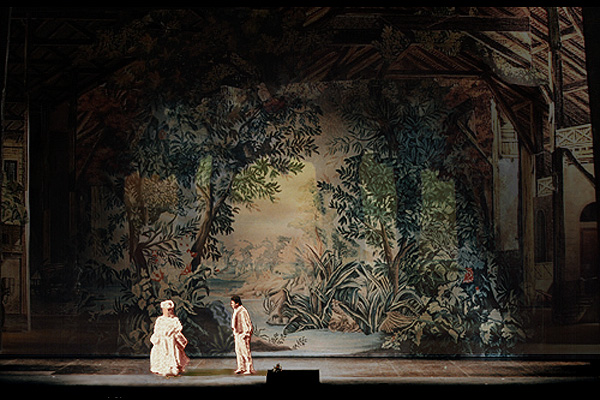

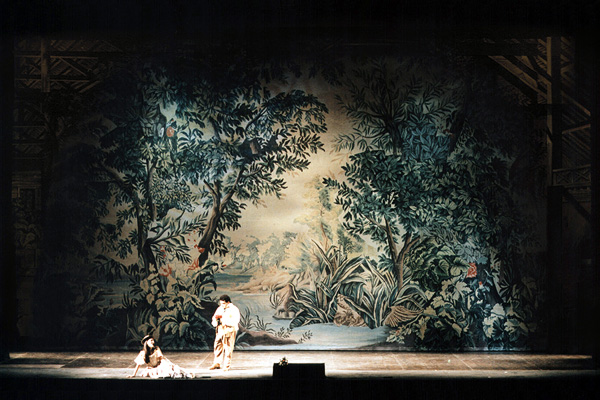

Teatro Carlo Felice, ''The Elixir of Love''

Lyric opera

Teatro Carlo Felice, ''Werther''

Lyric opera

Teatro Dante Alighieri, ''Macbeth''

Lyric opera

Teatro Dante Alighieri, ''Tenebrae''

Lyric opera

Teatro Español, ''Electra''

Prose theatre

Teatro Lirico, ''Carmen''

Lyric opera

Teatro Lirico, ''Die Feen''

Lyric opera

Teatro Regio di Torino, ''The Consul''

Lyric opera

Teatro San Carlo, ''Candide''

Operetta, zarzuela, musical

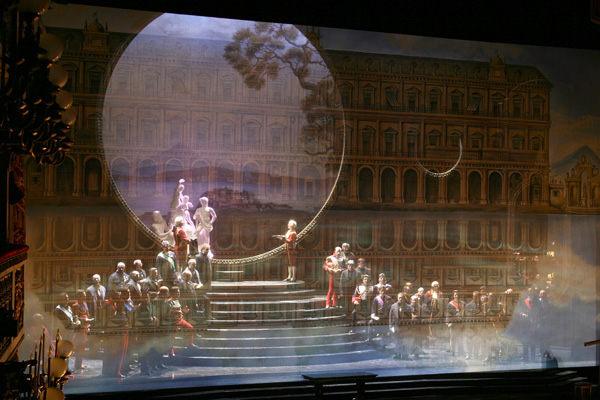

Teatro San Carlo, ''Gustavo III''
