PBL - Blackout

Front projection film

PBL - Blackout - film for frontal projection A - the projection sideB - the back (total light barrier)The back of the film is pigmented in black.The black layer is totally impermeable to the light and prevents any light interference coming from the back of the screen.
View all
Lorenzo Jovanotti, ''Ora'' On a Frontal projection screen, 13,3 x h 6,8 m, realized with the PBL - Blackout film some images and videos created with electronic processing, alternated ...
... to videos shot in real time of what happened during the concert ...
... on stage and in the audience.
SchermoPanoramico360PBL - Blackout 360° Frontal projection screen made of PBL - Blackout film with Self-supporting sectional frame, Ø 9 m (circumference 28,26 m) x h 3,15 m.It will be used as a part of simulator for train airport dispatchers in Pulkovo and it works with a multi-projection edge blending system with 8 projectors.
Teleticino, ''Swiss Venture Club'' Frontal projection screen, 9 x h 4 m, made of PBL - Blackout film and installed in front of a Rear-illuminated backdrop RNV - Nevada that has a scenographical function.Antonio Silvestro, manager of Eventmore:«Since it was a television broadcast ...»
«... with high luminosity shooting needs, we managed the video projection with a Barco SLM H25 Full HD projector, with a native resolution of 2,048 x 1,080 pixels and a power of 27,000 ANSI Lumens.For handling all signals, as there were different video formats shot with various cameras, old footage, IT contributions ...»
«... we used hardware and software means capable of managing up to 12 dynamic windows using the entire screen.To ensure that the use of so much technology was not wasted, the quality of the screen was essential.The realization in PBL - Blackout ...»
PBL - Blackout is a film for Front projection that could be considered simply a blackout version of PBO - Bianco Ottico film.
Actually, the black back coating slightly increases its gain compared to PBO - Bianco Ottico and gives it its own character.
With respect to PBO - Bianco Ottico, PBL - Blackout is also slightly heavier and more resistant.
It is used to manufacture high-performance front projection screens, particularly effective in low ambient light conditions.
Flame reaction
IFR - inherently flame retardant
FR certification
EN 13501-1 class B s1 d0
UNI 9177 class 1
Composition
100% PVC
Weight
560 g / m²
Thickness
0,40 mm
Width
210 cm
Length
100 m
Packing method
rolled-up
Colours
white embossed projection side
black 100% opaque back side
Peak gain
1.10 β
Front projection
Rating 5.0 brightness
Rating 4.0 contrast
Rating 5.0 color fidelity
Rating 5.0 cone of vision
Rating 2.0 anti parasitic light (interference environmental light)
Printability
Rating 5.0 See: PBL - Blackout digital printing
Weldability
Rating 5.0 Welding without superposition
Availabilty
by the metre (folded or rolled, max. 25 m rolls)
in full rolls
in tailor made creations
See
Finishings for vinyl backdrops
Custom frame screens
Custom cinema screens
Motorized roll-up screens

Colour chart

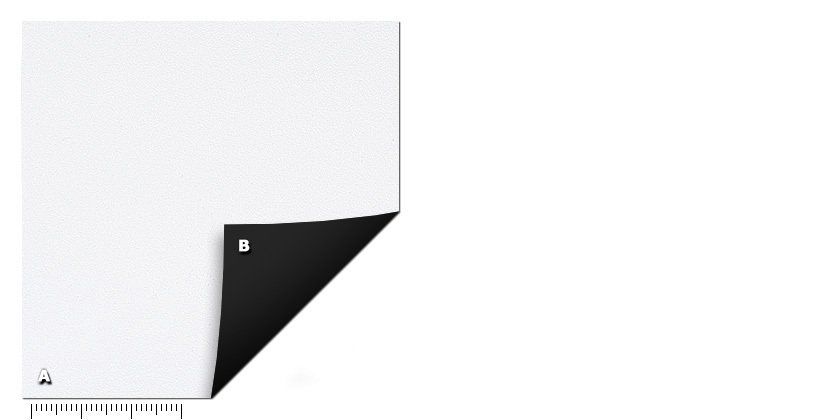

PBL - Blackout A. white (projection side)B. black (back)
