PBL - Blackout

Front projection film

PBL - Blackout - film for frontal projectionA - the projection sideB - the back (total light barrier)
View all
PBL - Blackout - film for frontal projectionThe back of the film is pigmented in black.The black layer is totally impermeable to the light and prevents any light interference coming from the back of the screen.
360° Frontal projection screen a 360° with a Self-standing sectional frame: Height - 3,15 m Radius - 4,5 m Circle - 28,26 m The screen was manufactured with the film PBL - Blackout and a masking of PNE - Nerissimo film and it's endowed with a door.It will be used as a part of simulator for train airport dispatchers in Pulkovo and it works with a multi-projection edge blending system with 8 projectors. SchermoPanoramico360PBL - Blackout
Frontal projection screen 13,30 m wide and 6,80 m high realized with the PBL - Blackout film. Lorenzo Jovanotti, ''Ora''
Projections on the screen PBL - Blackout. Lorenzo Jovanotti, ''Ora''
Projections of live videos on the screen PBL - Blackout. Lorenzo Jovanotti, ''Ora''
Projections of live videos on the screen PBL - Blackout. Lorenzo Jovanotti, ''Ora''
Frontal projection screen made of the film PBL - Blackout.The screen is 9 m side and 4 m high, and is installed in front of a Rear-illuminated backdrop RNV - Nevada that has a scenographical function. Tele Ticino, ''Swiss Venture Club''
Flame reaction
IFR - inherently flame retardant
FR certification
EN 13501-1 class B s1 d0
DIN 4102 class B1
NFP 92-503 class M1
NFPA 701 pass
Composition
100% PVC
Weight
605 g/m²
Thickness
0,42 mm
Width
210 cm
Length
100 m
Packing method
rolled-up
Colours
white embossed optical projection side
100% opaque black back light

Front projection
Rating 5.0
Rating 5.0 brightness
Rating 4.0 contrast
Rating 5.0 color fidelity
Rating 5.0 cone of vision
Rating 2.0 anti parasitic light (interference environmental light)

Availabilty
by the metre
in full bolts/rolls
in custom realizations

Colour chart

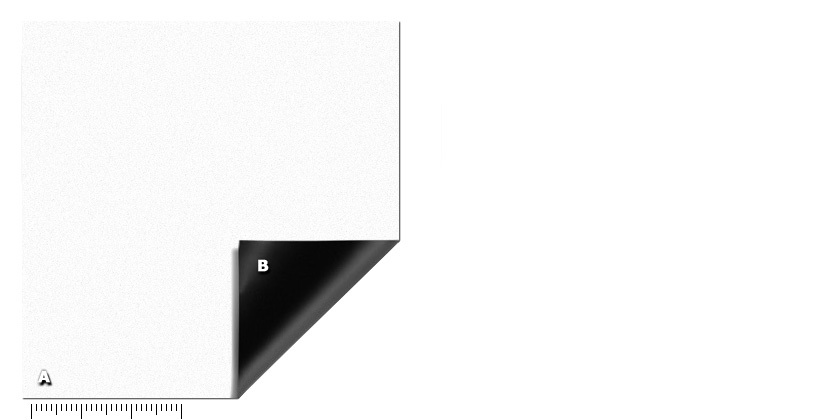

PBL - BlackoutA. white (projection side)B. black (back)
