LWE - Windel

Stretch fabric

LWE200P - Windel width 200 cm8. yellow (special color)
View all
LWE200P - Windel width 200 cm8. yellow (special color)
LWE - Windel 3. grey.The difference among the front (A), slightly more reflecting, and the back (B) of the fabric.
Two backdrops made with Tubular making with 1. white LWE300P - Windel width 300 cm, illuminated here with red light. Convention
Elastic backdrop (15 m width and 10 m height) made of 3. grey LWE - Windel .The backdrop is here rear-illuminated with blue light ...
... while here the rear-illumination has switched to red.The elastic backdrop made of LWE - Windel has a curved Tube for scenography at its bottom.The Tube for scenography is used to lift the bottom edge of the backdrop creating an arch ...
... and to lower it, stretching the fabric to the floor of the stage and closing the arched opening. María Pagés, ''Utopia''
Kabuki curtain made of 1. white LWE300P - Windel width 300 cm. Teatro Español, ''Armengol''
LWE - Windel is a two-way stretch fabric quite heavy made with knitted weave and stretch yarn.
One side of the fabric is matte, the other is slightly reflective.
It is strong and resistant and it interacts very well with light, the white and grey colours, in particular, can be illuminated and backlit with excellent results.
It is used to make elastic backdrops of all kinds, even large ones, and for props to be covered with an elastic fabric with a well stretched look.
When ordering, it's needed to specify whether the matte or the reflective side must be used as the front side.

Flame reaction
IFR - inherently flame retardant
FR certification
EN 13501-1 class B s1 d0
DIN 4102 class B1
NFP 92-503 class M1
Composition
85% polyester, 15% elastam
Weight
260 g / m²
Width
200 cm
300 cm
Length
± 50 m
Packing method
rolled-up
Available colours
see colour chart
Custom colours
minimum order quantity ± 500 m

Elongation
± 40% in length
± 20% in width

Frontal projection
Rating 3.5 (white/grey)
Rear projection
Rating 3.0 (white/grey)
Paintability
Rating 1.5
Printability
Rating 2.0

Availabilty
by the metre
in full rolls
in tailor made creations

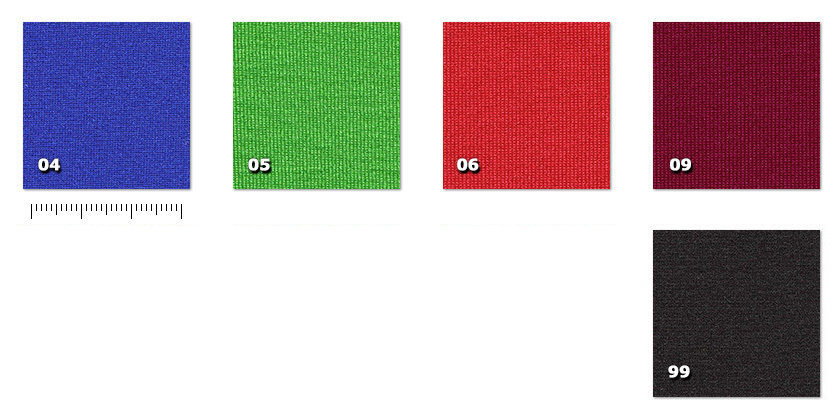

Colour chart

LWE200P - Windel width 200 cm01. white03. grey04. chroma key blue05. chroma key green06. red09. burgundy99. black
LWE200P - Windel width 200 cm b>Special colours available at this time:07. light blue08. yellow
LWE300P - Windel width 300 cm01. white
