BSV - Sprinkle

VdS certified monoelastic gauze 500 < 550 cm

BSV - Sprinkle01. white
View all
BSV - Sprinkle01. white
BSV - Sprinkle - Requirements for use with sprinkler fire prevention systems BSV - Sprinkle tulle has a honeycomb mesh due to which it tends to shrink in the direction of the weft (from selvedge to selvedge), a sense in which, during installation, the 25 holes per 10 cm must not be exceeded.The fabric must be tensioned first in the transverse direction (from selvedge to selvedge) reaching the number of 25 holes per 10 cm and only after that in the longitudinal direction where there must be 18 holes per 10 cm.For the correct functioning of the sprinkler fire prevention systems, the mesh of the tulle must have, with uniform distribution, the dimensions indicated in the image (4.87 mm in the longitudinal direction and 3.16 mm in the transverse direction).The installation tension must be sufficient to avoid loosening of the fabric.The fabric must be installed horizontally and in a single layer only.The distance between the nozzles of the sprinkler systems and the surface of the fabric must not exceed 50 cm at any point.The maximum installation surface, free from beams and studs of any type, must not exceed 30 m².Installation options: 1. - Nailed or stapled on a wooden frame2. - With WCP - Strap + WOC - Eyelets every 25 / 30 cm3. - On aluminum frame

Crèche of Chiarisacco 2011 / 2012 The installation was realized through the wrapping with white BSV - Sprinkle ...
... of a metallic structure ...
... that stylizes the Holy Family.
It is a 2-way stretch knitted woven fabric with a mesh that simulates that of a bobbinet tulle, with which BSV - Sprinkle shares, albeit in a rather approximate way, the aesthetic characteristics.
The sturdiness, the very open mesh when installed with the correct tension and the German VdS certification make it suitable for horizontal covering of exhibition stands, when these are housed in pavilions equipped with fire prevention sprinkler systems.
Flame reaction
IFR - inherently flame retardant
FR certification
UNI 9177 class 1
DIN 4102 class B1
VdS certificate
Mesh
hexagonal 4,9 x 3,2 mm
Composition
100% trevira CS
Weight
120 g/m²
Width
500 cm
Length
± 50 m
Packing method
folded
Available colours
see colour chart
Custom colours
not available

Transparency
against light
Rating 5.0
Wall effect
whith frontal lighting
Rating 2.0
Frontal projection
Rating 2.0
Rear projection
Rating 2.0
Paintability
Rating 2.0 with paintings for polyester fabrics
Printability
Rating 1.0 with inks for polyester fabrics

Availabilty
by the metre
in full bolts
in tailor made creations

Colour chart

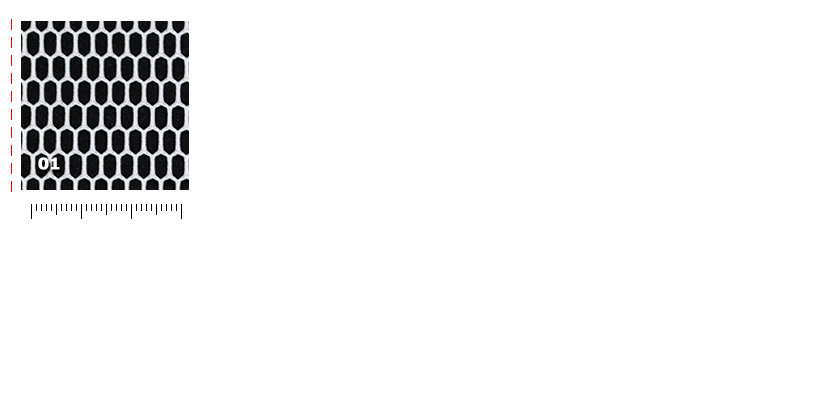

BSV - Sprinkle01. whiteThe outlined red line identifies the position of the selvage in comparison with the mesh.

This material was used for...

Crèche of Chiarisacco 2011 / 2012
