HSH - Shelter Plus

Blackout satin

HSH - Shelter Plus 96. dark grey
HSH - Shelter Plus is a blackout fabric with a soft consistency which, in black, produces a total barrier to light (blackout), only light colours have an almost imperceptible degree of transparency (dimout).
It has two faces of identical appearance woven with satin weave, to which a third black textile layer is interposed which has the purpose of decreasing transparency.
Being a fabric that has above all the latter purpose, combined with decorative features, it has limited photo-absorbing properties.
It is mainly used for curtains, backdrops and draperies that must produce a dimout effect, that is drastically limit the passage of light, which have the task of decorating and, thanks to its excellent acoustic properties, improve the reverberation.
HSS - Shelter is a lighter, cheaper and less performing version of this fabric.
Flame reaction
IFR - inherently flame retardant
FR certification
EN 13773 class 1
UNI 9177 class 1
NF M1
DIN 4102 class B1
BS 5867 Type B
NFPA 701 pass
IMO certificate
Composition
100% polyester FR
Weight
430 g / m²
Width
150 cm
Length
± 50 m
Packing method
rolled-up
Available colours
see colour chart
Custom colours
minimum order quantity ± 400 m

Light barrier
Rating 5.0
Light absorption
Rating 2.5

Acoustic absorption
Rating 4.5
Mounting
Type G-100
100% fullness
ISO 11654 rating
Weighted sound absorption coefficient: αw = 0.90 (MH)
Sound absorption class: A

ASTM C423 rating
Noise Reduction Coefficient: NRC = 0.80
Sound Absorption Average: SAA = 0.83

Availabilty
in full rolls
in tailor made creations

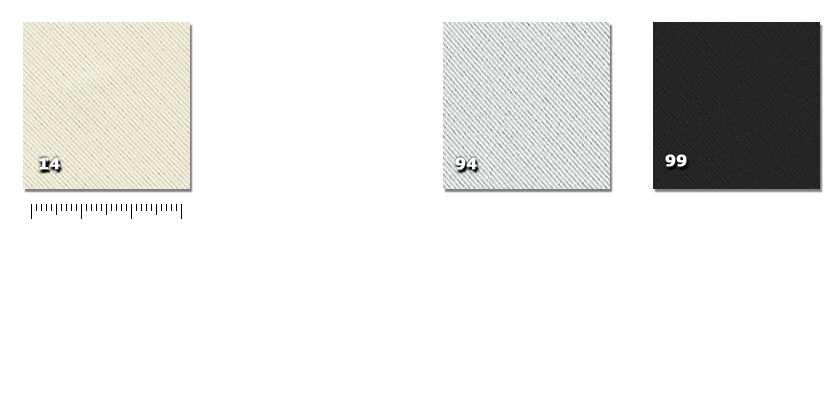

Colour chart

HSH - Shelter Plus 14. light beige15. beige81. hazel85. brown
HSH - Shelter Plus 93. very light grey94. light grey95. grey96. dark grey99. black
