Atlas is a high-performance stagecraft track, i.e. a professional modular mechanical system designed to easily and safely handle the movement of Traveller curtains, of Cycloramas and of suspended Scenery elements having considerable weight and size.
The vast and complete range of components makes it extremely versatile, it can in fact be modulated in all the main configurations, manual or motorized, and is easily adaptable to situations with particular needs.
The high quality of its components gives it maximum reliability.
It finds its ideal use in a wide range of contexts, including stages, television studios, exhibitions, conference halls, and more.

Applications

They include:
- large and heavy Traveller curtains
- Cycloramas
- heavy scenic elements

Key features

- extremely robust, reliable, and quiet

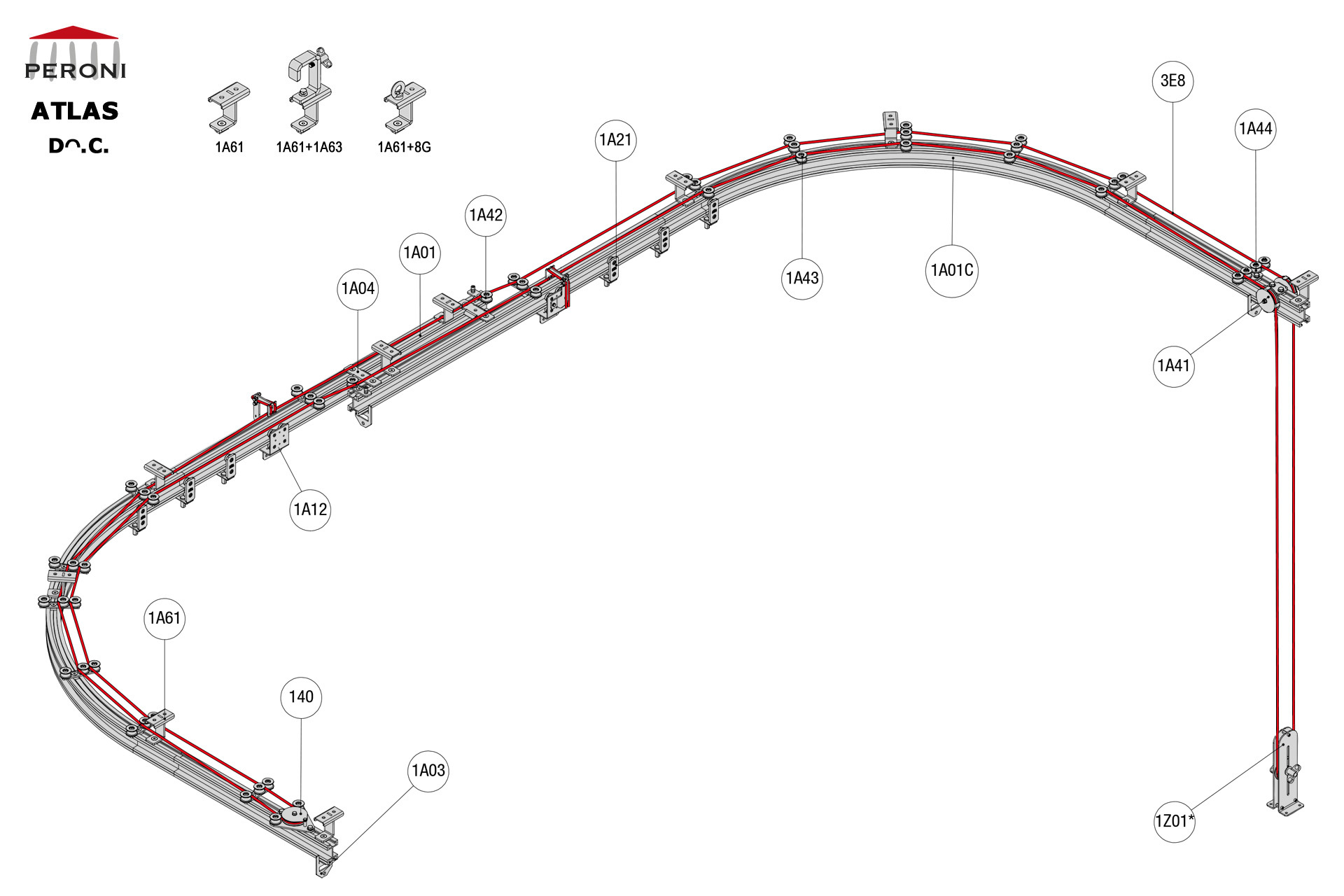

- for straight, curved, and mixed configurations
- bendable from a 100 cm radius
- simple and fast assembly
- a wide range of components
- high-load carriers
- 0.37 kW or 0.75 kW R1 Rope Drive System motorization

Track

- extruded aluminum profile
- black anodized finish
- weight of 3.12 kg/m
- maximum bar length of 600 cm
- maximum support span of 300 cm
- minimum bending radius of 100 cm

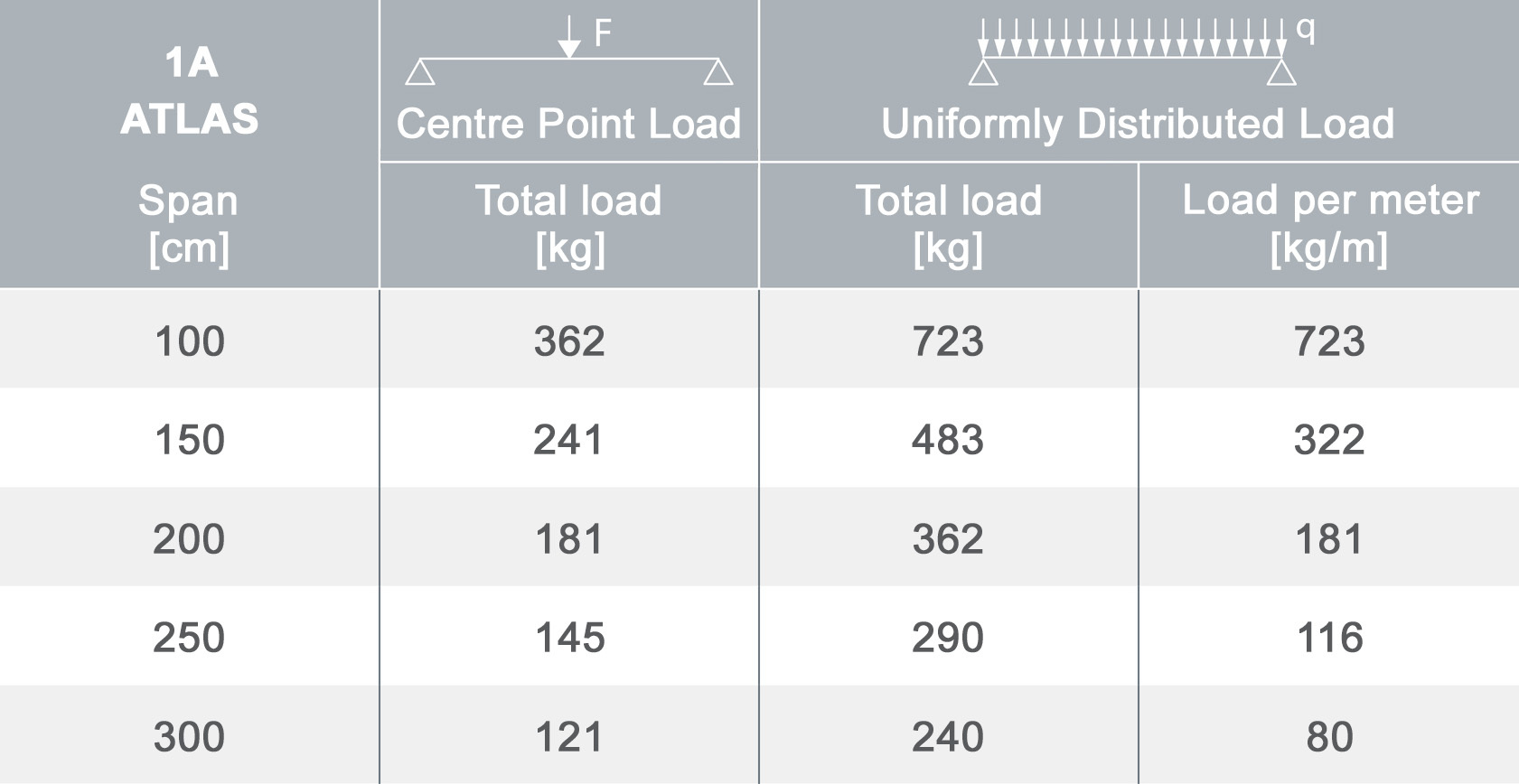

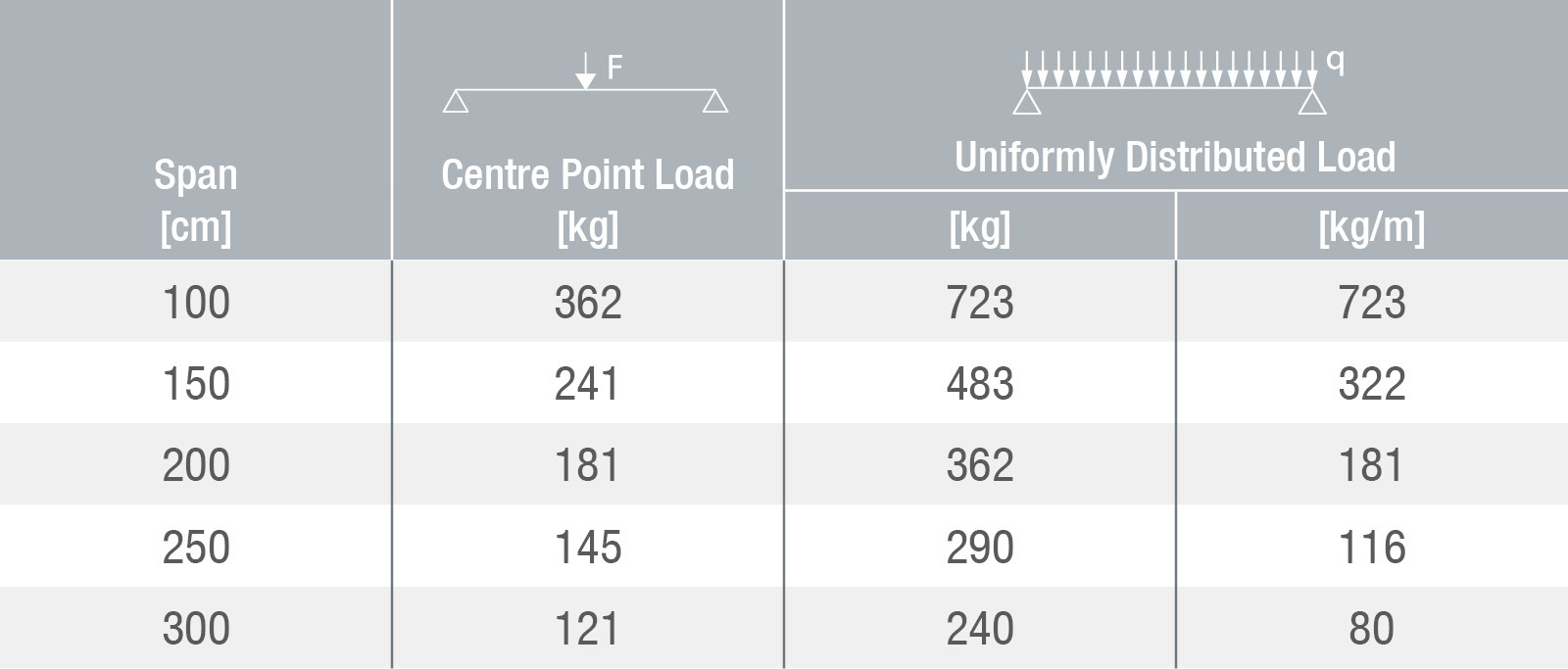

The table shows the maximum loads applicable to the rail only.
It is essential to consider the load capacity of each component of the system.
The load limit of the system is determined by the weakest component.

Master carriers 1A10 to 1A14

- made of black powder-coated steel
- 8 wheels with ball bearings
- can be equipped with various accessory arms
- 50 kg load capacity

Runners 1A20, 1A21

- made of black powder-coated steel
- 360° swivel attachment
- 2 or 4 wheels with ball bearings
- rubber damper blocks
- 25 kg load capacity

High load carrier 1A24

- high-load cart made of black powder-coated steel
- 8 wheels with ball bearings
- fall protection device
- can be equipped with various accessory arms
- 150 kg load capacity

Operating rope

- black
- 8 mm diameter
- 100% high tenacity polyester rope

Fixing options

- batten mounting (tube/truss)
- ceiling mounting
- wall mounting with 1Z10 - Wall bracket
- girder / beam fixing with 1Z20 - Beam clamp
- ropes / wires suspension

Main configurations

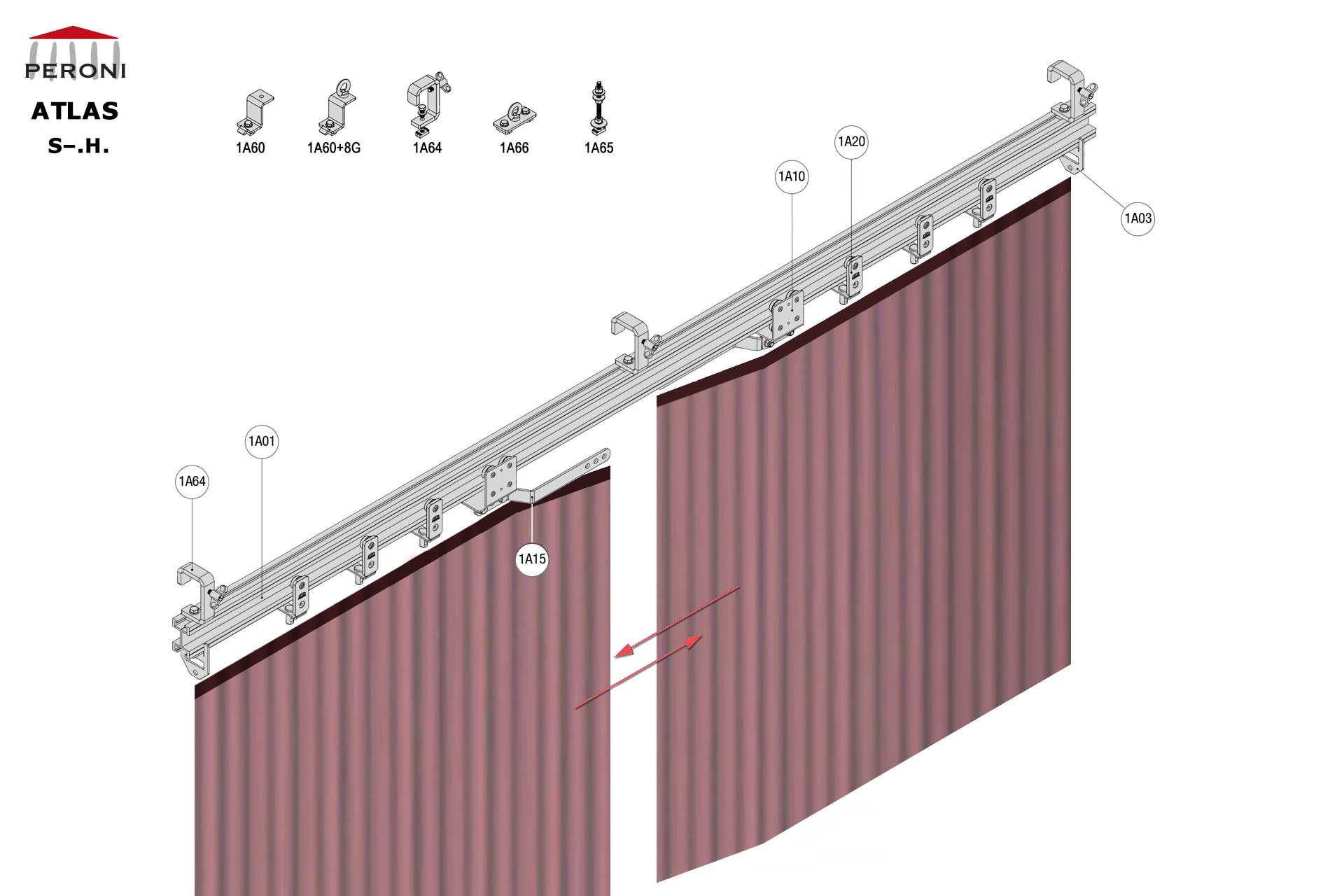

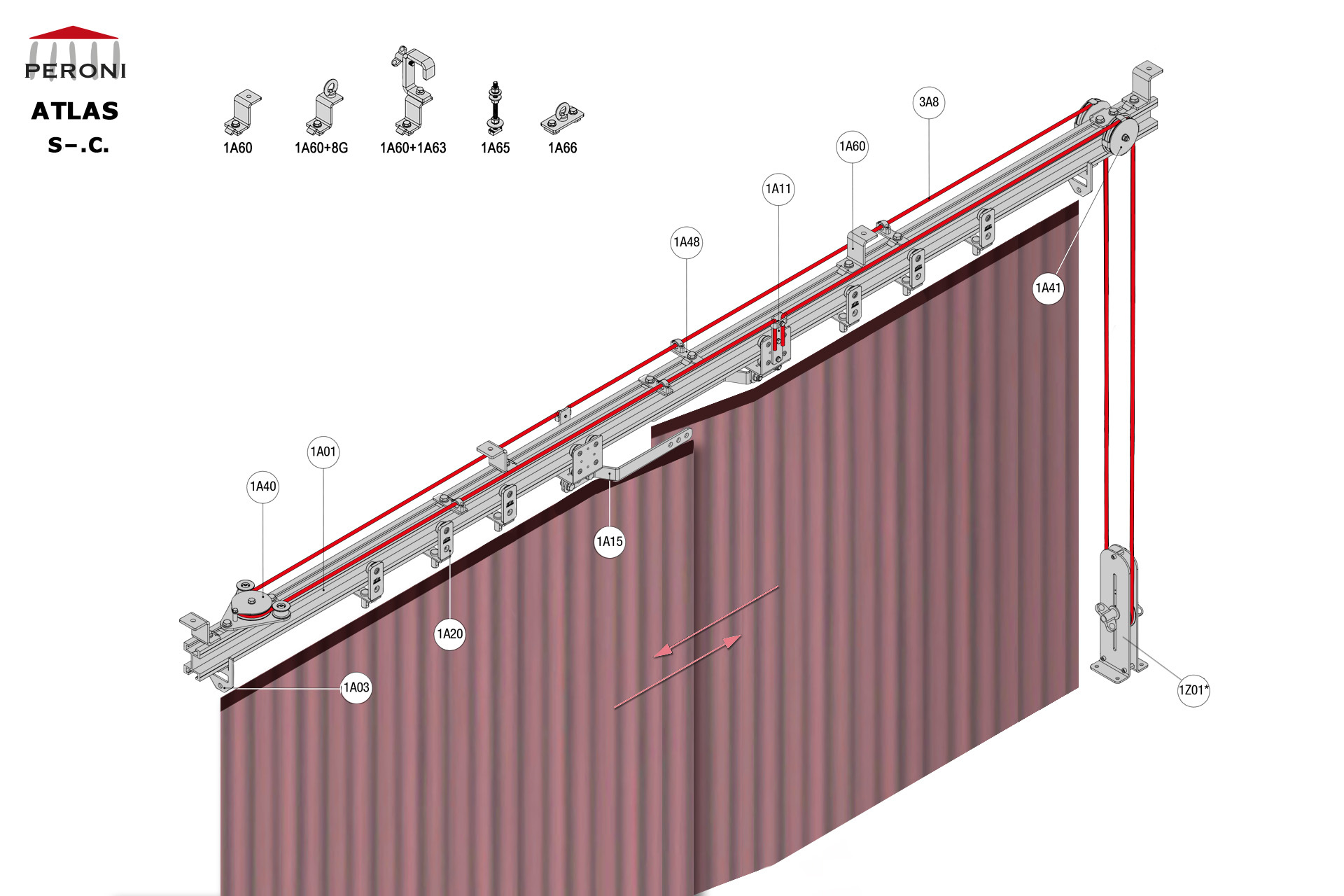

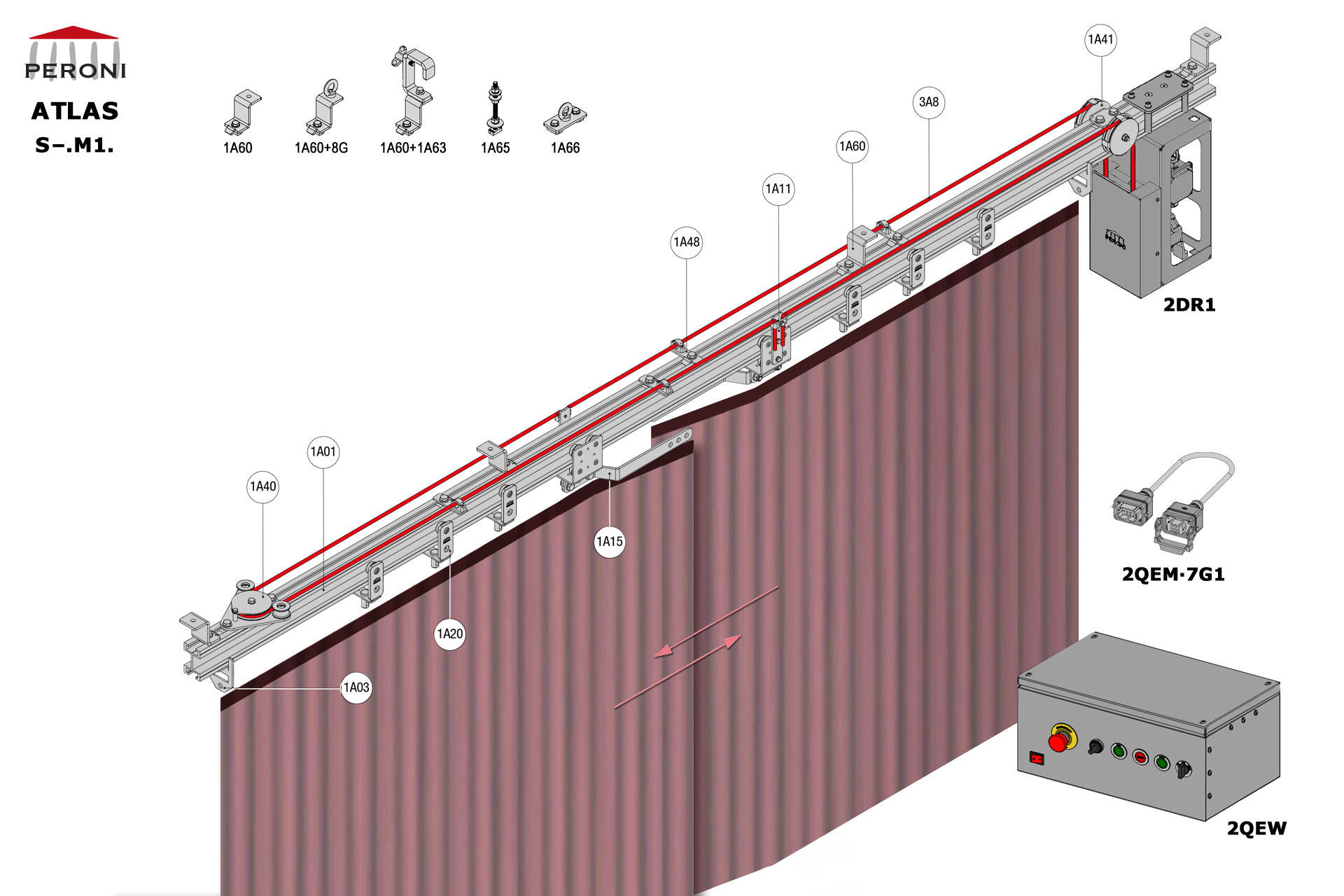

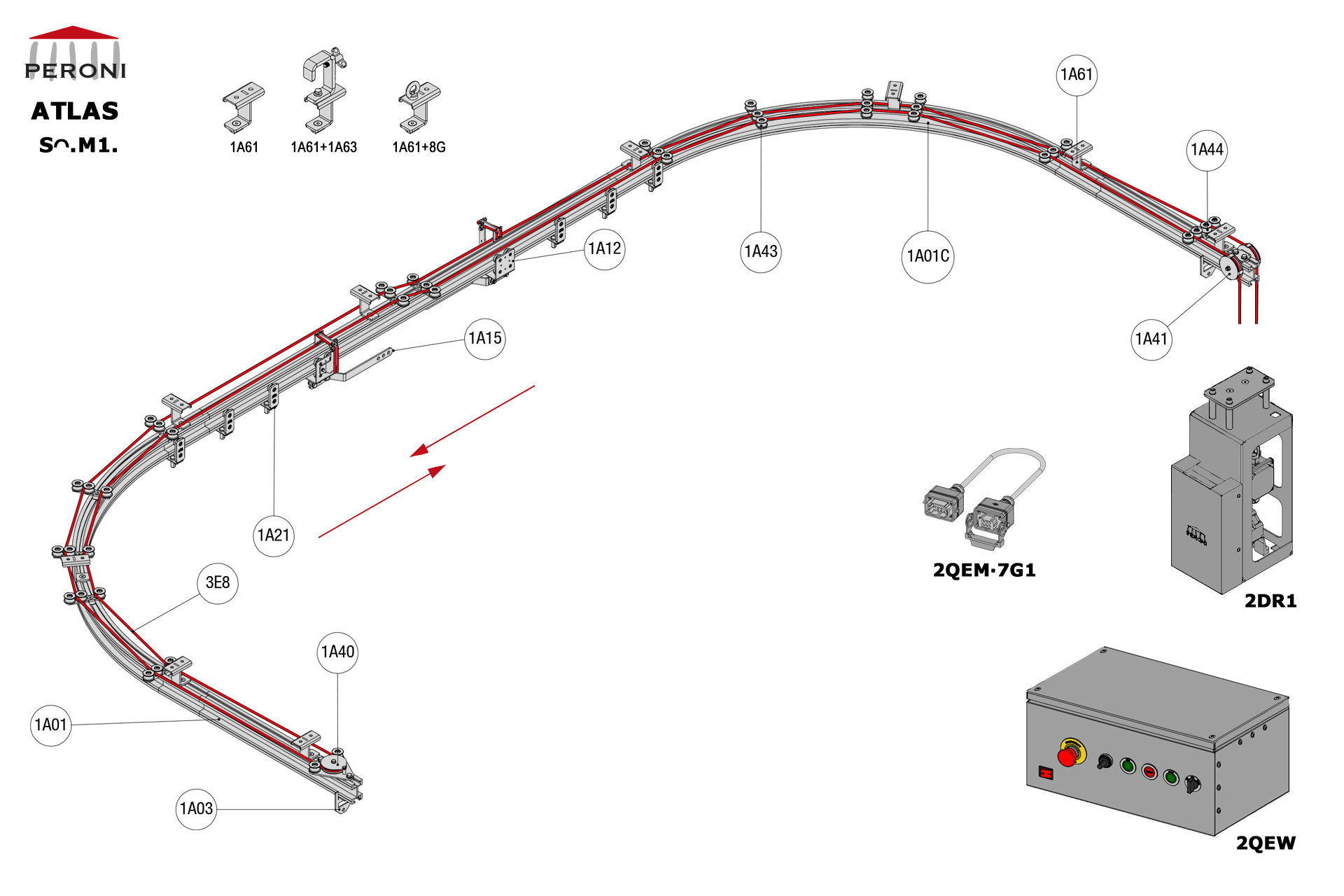

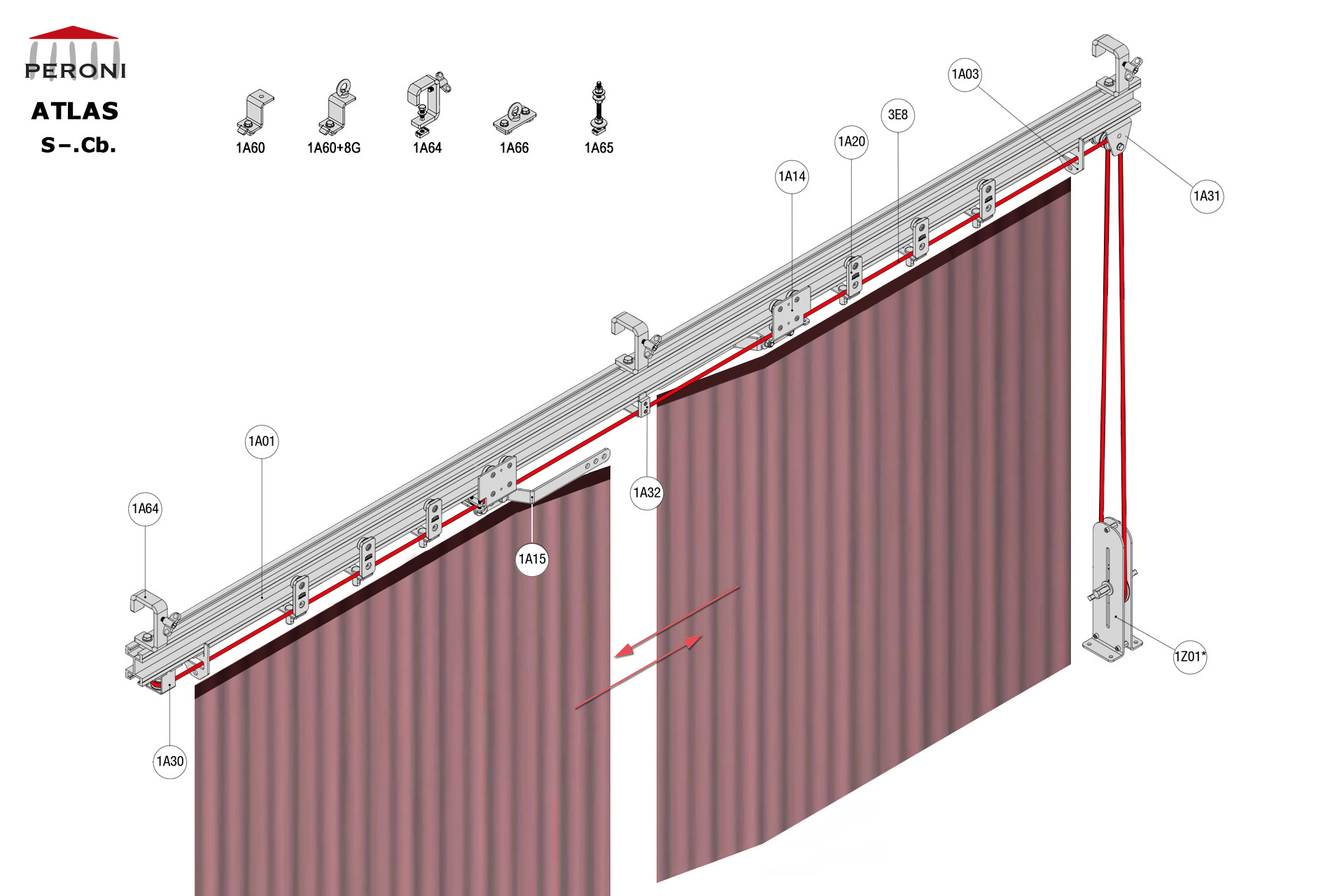

- S. Single rail central opening

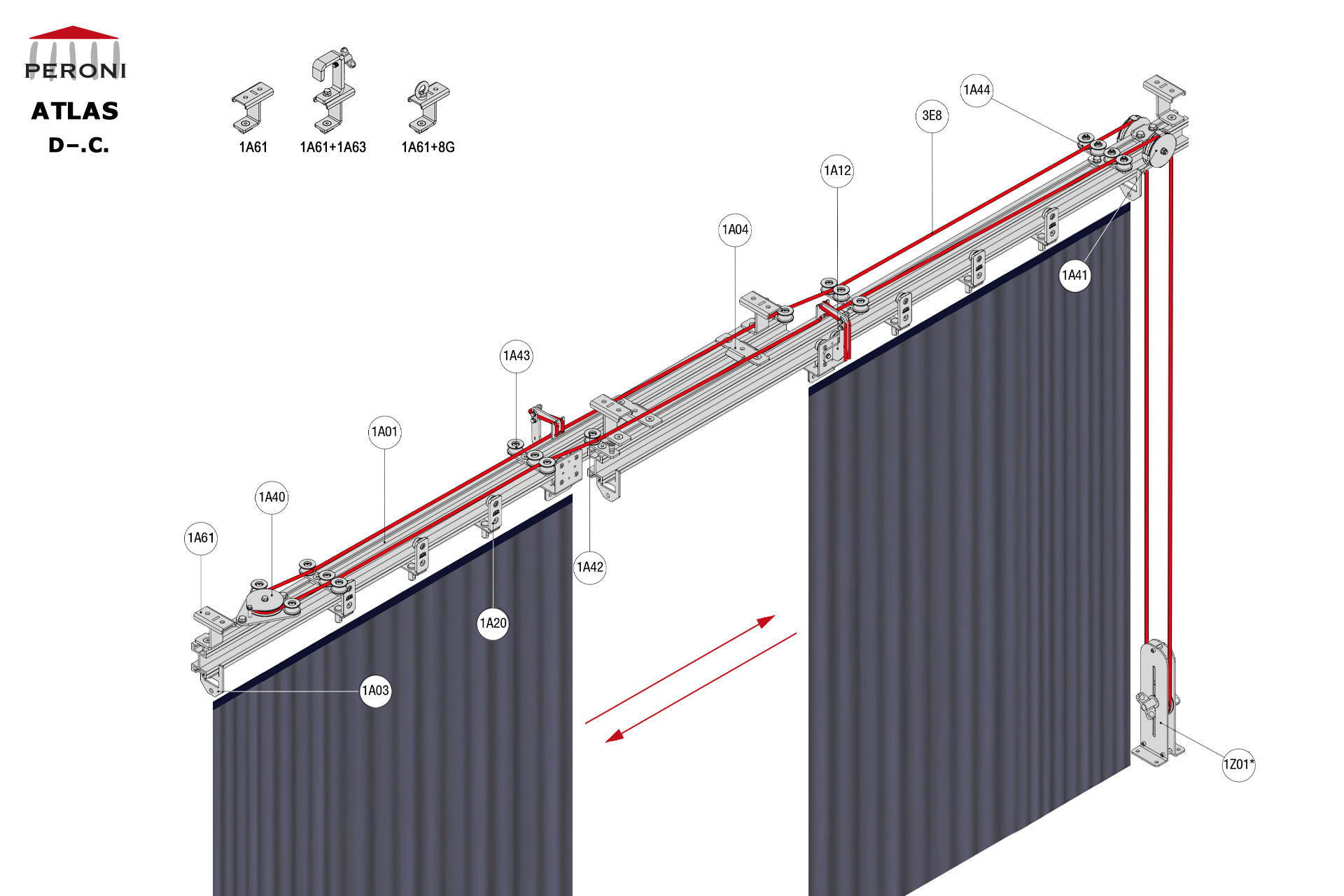

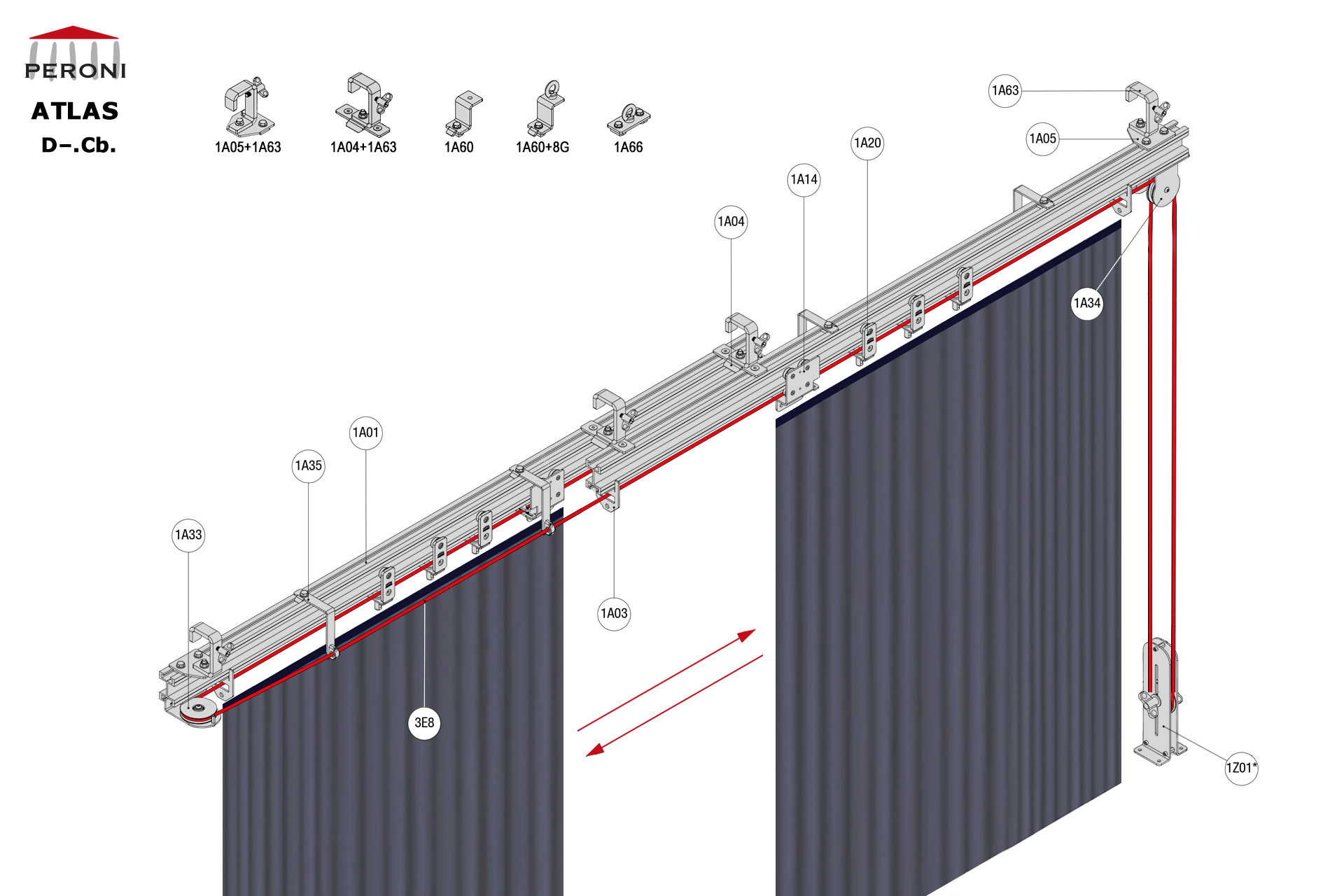

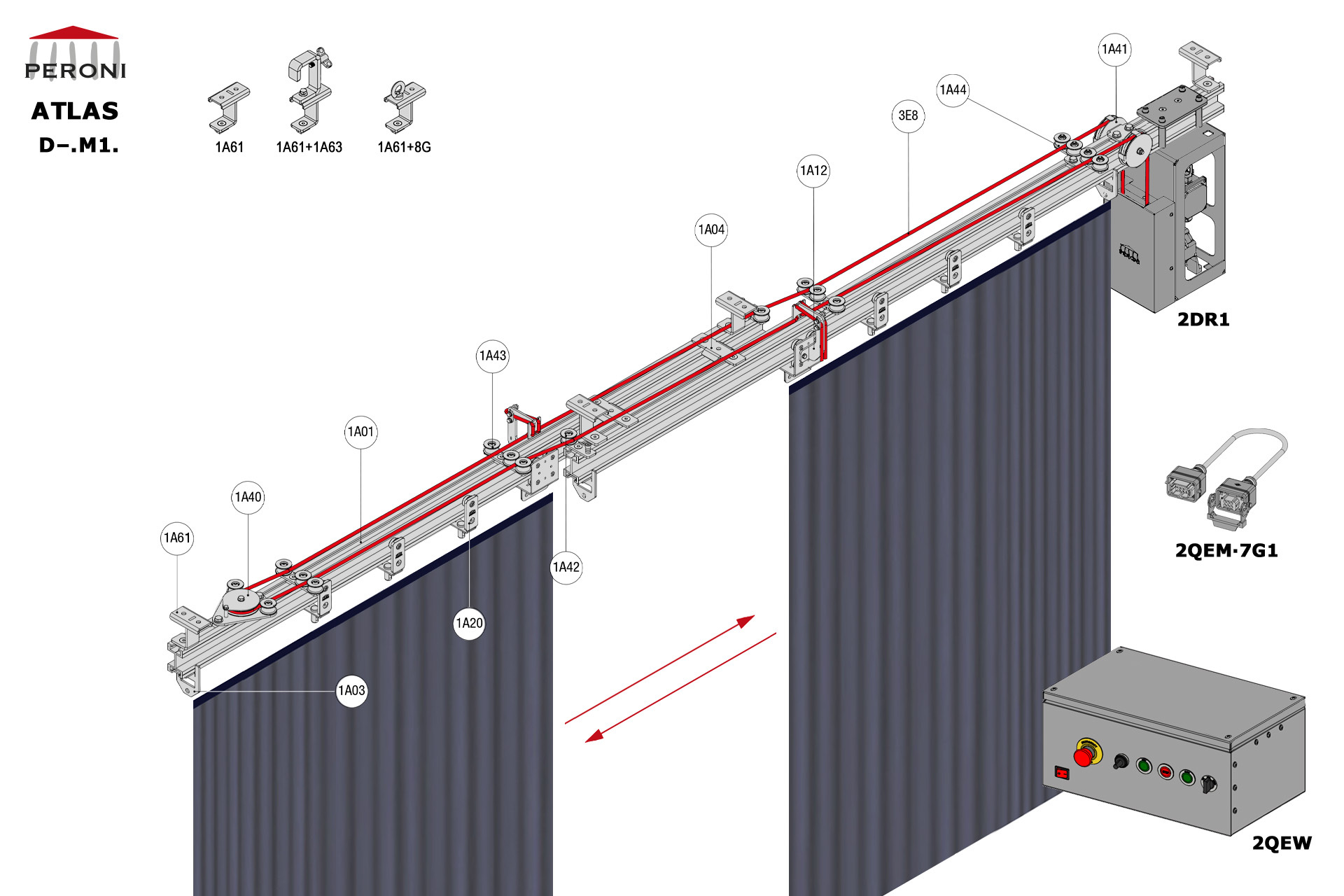

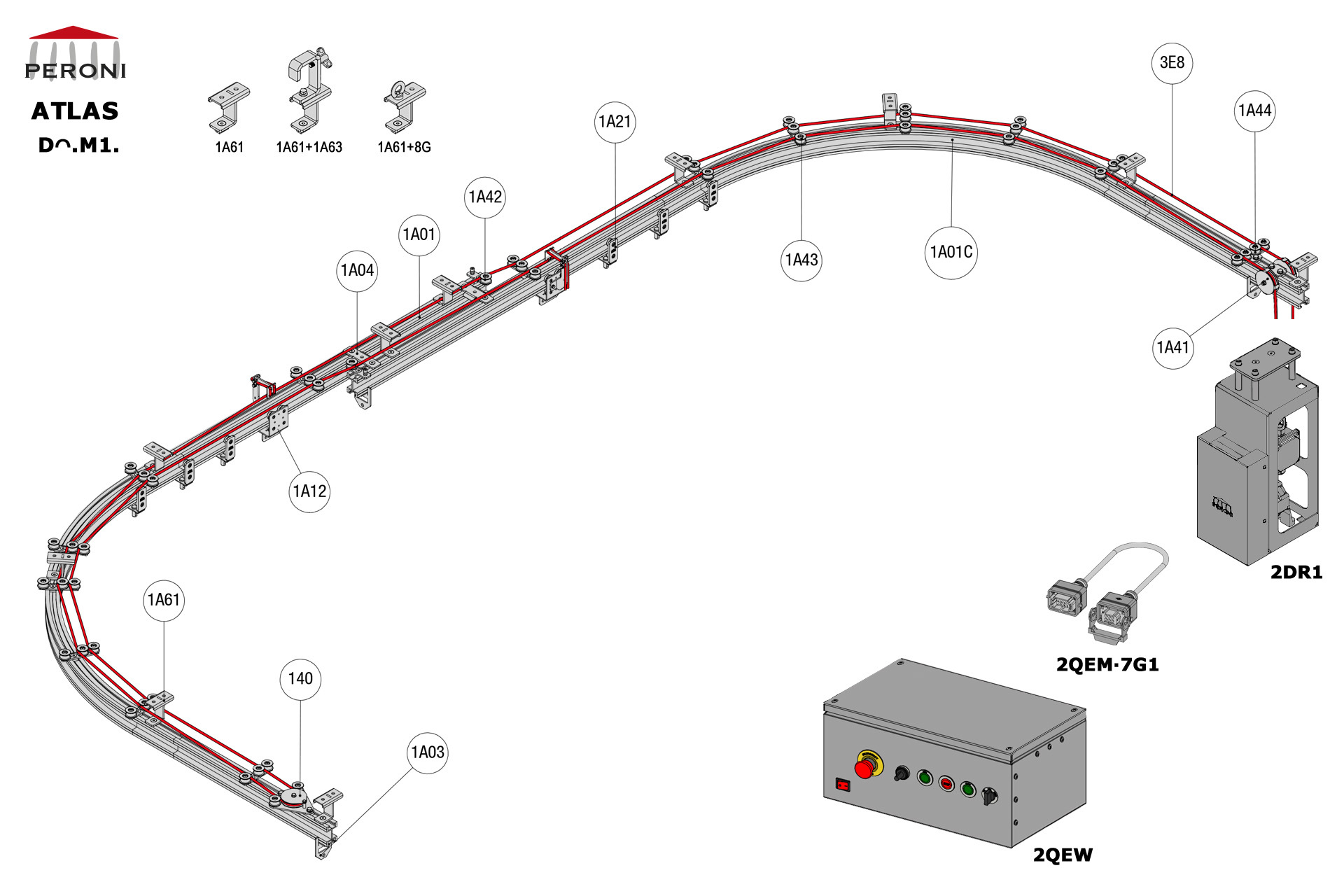

- D. Double rail central opening
- L. Wipe side opening

Drive system

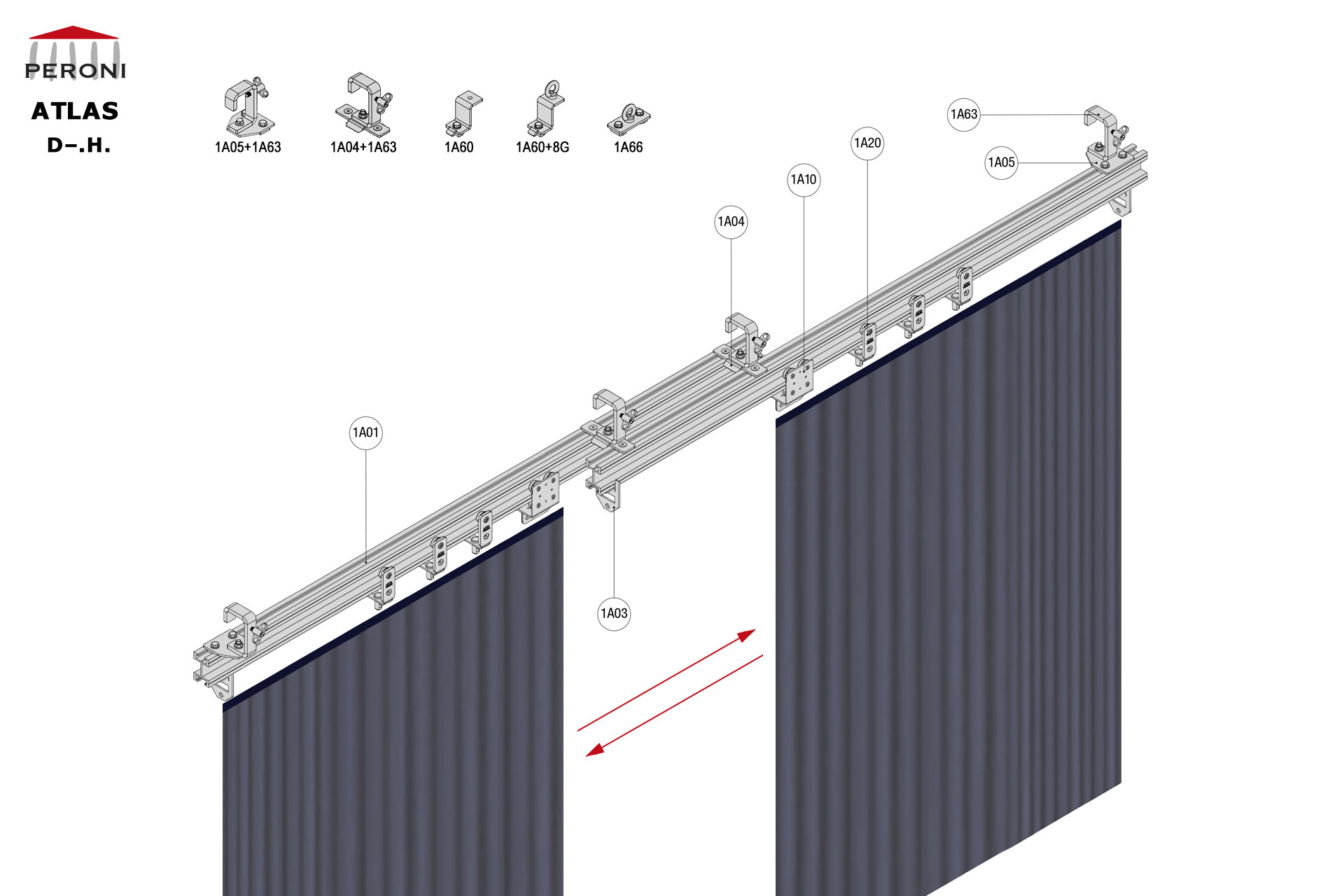

- H. Hand pulled uncorded walk-along

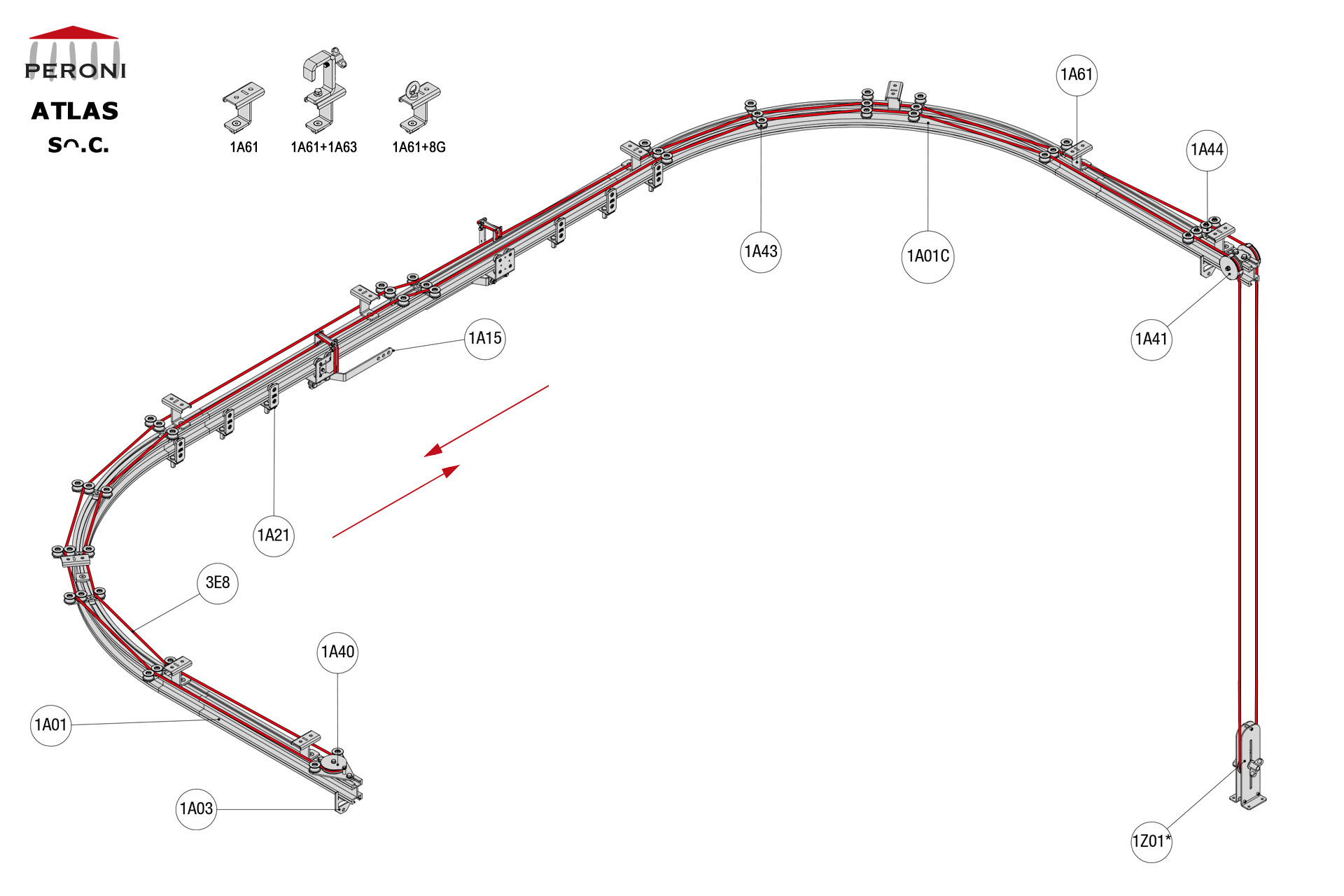

- C. Corded manual (1Z - Hand Line Pulleys)

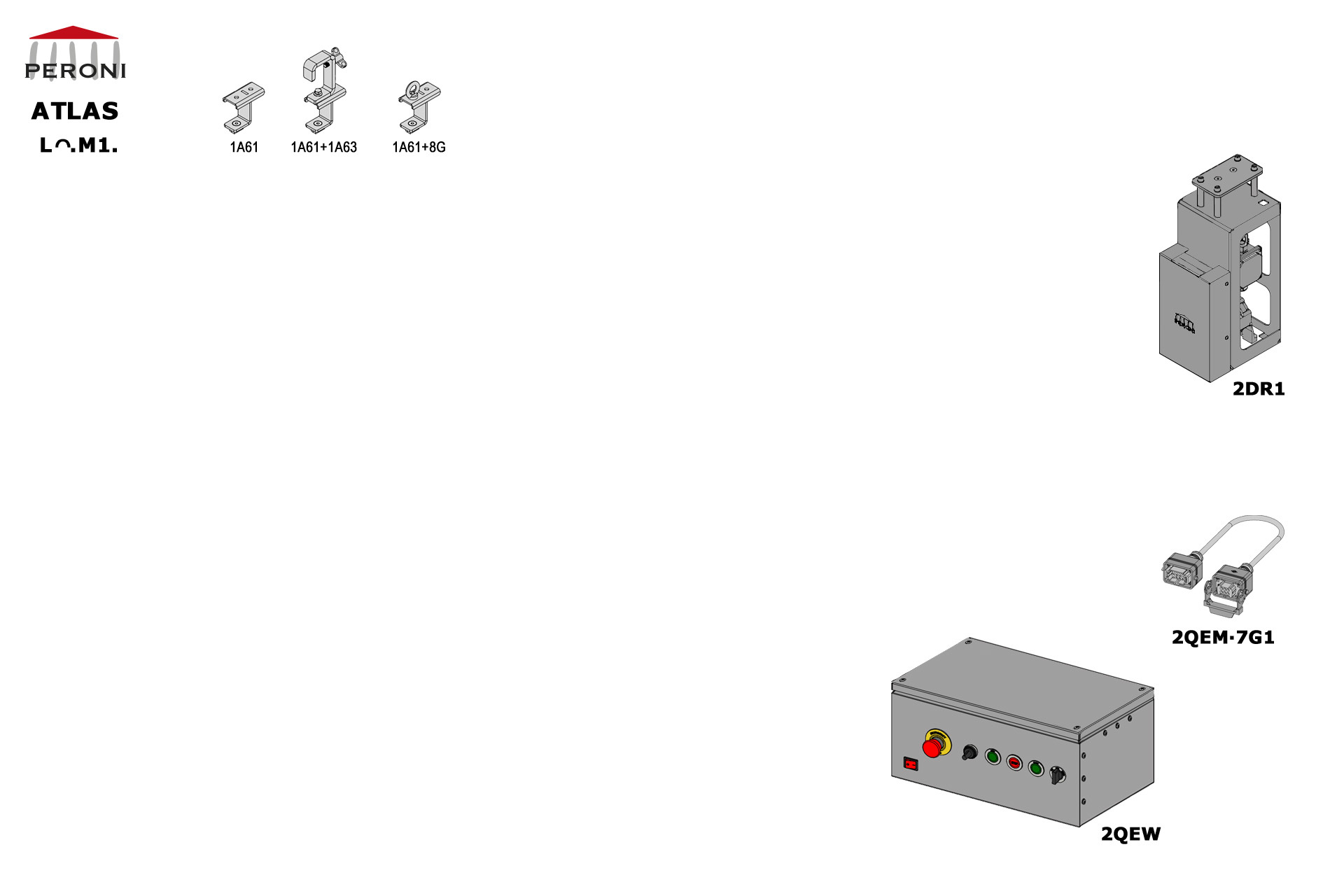

- M. Motorized with R1 Rope Drive System

Customized solutions can be developed to suit particular needs.
