Data sheet

PMI - Bianco Ottico Perforato

Front projection film

PMI - Bianco Ottico Perforato - film for frontal projection
View all
PMI - Bianco Ottico Perforato - film for frontal projectionDetail of the microperforation and the embossing.
The final stages of the installation of a Frontal projection screen with a projection area of 23,5 x 10 m and made of PMI - Bianco Ottico Perforato film. Sotto le stelle del cinema
The Sotto le stelle del cinema and the Il cinema ritrovato festival use a Frontal projection screen made of PMI - Bianco Ottico Perforato with a 23,5 x 10 m projection area, that is the 2,35:1 aspect ratio of anamorphic 35 mm. Sotto le stelle del cinema
A classic case in which the PMI - Bianco Ottico Perforato film is used is that in which the screen is installed outdoor and it has to reduce the resistance to the wind thanks to the perforation. Milano Film Festival 2011
The testing of a 5P - Polycinal motorized screen just completed in Peroni's testing theatre in Gallarate (Italy).The screen is realized with the film PMI - Bianco Ottico Perforato.
Screen made of PMI - Bianco Ottico Perforato, size 4 x 9,40 m, a format that allows 16:9 projections with a screen area for the subtitles. Milano Film Festival 2011
Another classical case in which the PMI - Bianco Ottico Perforato film is used is that in which the screen has to be installed in front of a sound source. Auditorium RAI
Flame reaction
IFR - inherently flame retardant
FR certification
EN 13501-1 class B s1 d0
UNI 977 class 1
DIN 4102 class B1
NFP 92-507 class M1
NFPA 701 pass
Composition
100% PVC
Weight
500 g/m²
Thickness
0,40 mm
Width
240 cm
Length
100 m
Packing method
rolled-up
Colours
optical white
visual side embossed and matte
Perforation
⌀ 1.2 mm - 36.000 holes / m²
Peak gain
0.97
Front projection
Rating 5.0 brightness
Rating 4.0 contrast
Rating 5.0 color fidelity
Rating 5.0 cone of vision
Rating 2.0 anti parasitic light (interference environmental light)
Rear-projection
Rating 1.0 the microperforation makes it semitransparent when back-lighted
Printability
Rating 5.0
Weldability
Rating 5.0 Welding without superposition
The alignment of the perforation along thea seams is not possible
Availabilty
by the metre
in full rolls
in tailor made creations
Watch
Finishings for vinyl backdrops
Frame screens custom
Custom cinema screens
Motorized roll-up screens

Colour chart

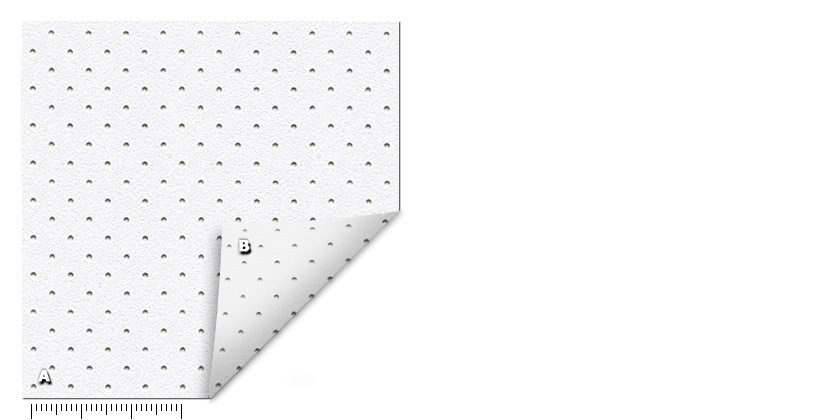

PMI - Bianco Ottico PerforatoA. embossed matte white (vision side)B. smooth shiny white (back)
