PMI - Bianco Ottico Microforato

Front projection film

PMI - Bianco Ottico Microforato - film for frontal projection
View all
PMI - Bianco Ottico Microforato - film for frontal projectionDetail of the microperforation and the embossing.
The testing of a 5P - Polycinal motorized screen just completed in Peroni's testing theatre in Gallarate (Italy).The screen is realized with the film PMI - Bianco Ottico Microforato.
A normal case in which the PMI - Bianco Ottico Microforato film is normally used is that in which the screen is installed outdoor and it has to reduce the resistance to the wind thanks to the micro perforation. Milano Film Festival 2011
The size of the screen made of PMI - Bianco Ottico Microforato is of 14 x 9,40 m a format that allows 16:9 projections with a screen area for the subtitles. Milano Film Festival 2011
Milano Film Festival 2011
Another classical case in which the PMI - Bianco Ottico Microforato film is used is that in which the screen has to be installed in front of a sound source. Auditorium RAI
The 5P - Polycinal motorized screen with a width of 10,80 m was installed to the ceiling of an auditorium in front of a big organ for concerts. Auditorium RAI
Flame reaction
IFR - inherently flame retardant
FR certification
EN 13501-1 class B s1 d0
DIN 4102 class B1
NFP 92-503 class M1
NFPA 701 pass
Composition
100% PVC
Weight
500 g/m²
Thickness
0,41 mm
Width
240 cm
Length
100 m
Packing method
rolled-up
Colours
optical white
visual side embossed and opaque
Drilling
⌀ 1.2 mm - 36.000 holes / m²

Front projection
Rating 5.0
Rating 5.0 brightness
Rating 4.0 contrast
Rating 5.0 color fidelity
Rating 5.0 cone of vision
Rating 2.0 anti parasitic light (interference environmental light)
Rear-projection
Rating 1.0 the microperforation makes it semitransparent when back-lighted
Printability
Rating 5.0
Weldability
Rating 5.0 Welding without superposition
The alignment of the perforation along thea seams is not possible

Availabilty
by the metre
in full bolts/rolls
in custom realizations

Colour chart

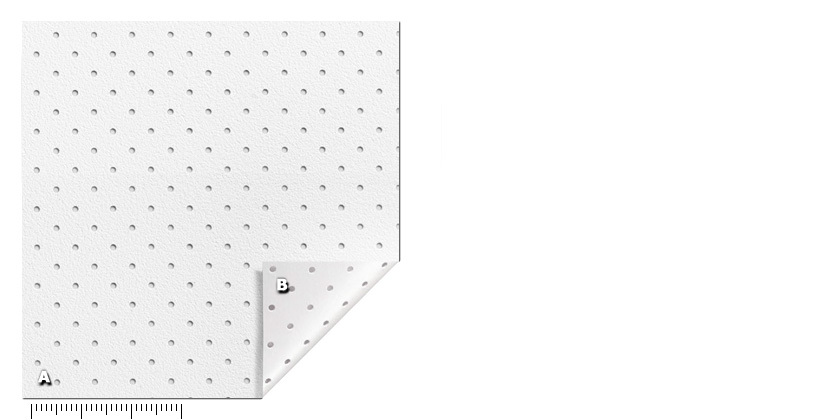

PMI - Bianco Ottico MicroforatoA. embossed matte white (vision side)B. smooth shiny white (back)
