Cibeles, ''Colgando del Centro'' Example of arrangement as an area for events of the central passage part of a monumental historic building in Madrid.The project used a TRX10 track system with manual walk along operation ...

... and a Traveller curtain with side opening.The curtain was manufactured in modules with a double-faced vertical fullness.It also performs the functions of Acoustic curtain and Sound barrier curtain.

Application

TRX10 is a professional modular system for the horizontal handling of:
- medium-weight Wipe and Traveller curtains
- cycloramas
- light-weight scenery elements

The perfect solution for stages, studios, trade fairs, conference hall, etc.

Key features

- quick and easy assembly, ideal for tours
- straight, curved and mixed configurations
- silent operation
- great versatility
- extensive range of components
- two motorized options 0,18 kW o 0,37 kW
- tested and highly reliable

Rail

- extruded aluminium profile
- black anodized finishing
- 946 g/m weight
- 600 cm max bar length

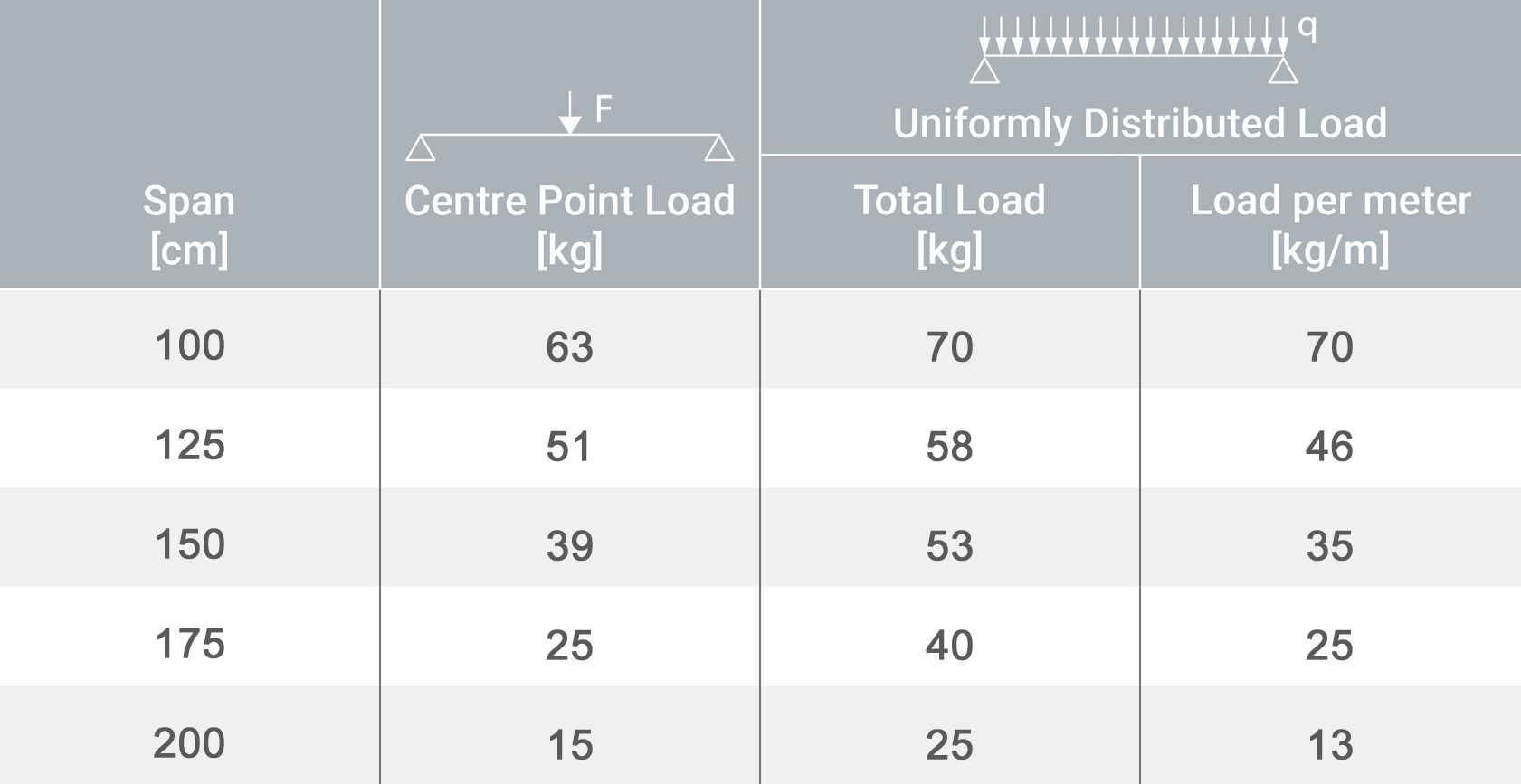

- 200 cm max span
- 50 cm min curve radius
- top groove for channel nuts

1T10 Master Carrier

- made of black powder coated steel
- 8 ball bearing plastic wheels
- equipaggiabile con diversi bracci accessori
- 30 kg load capacity

1T13 Carrier

- made of high resistance nylon
- 360° swivel attachment
- 2 ball bearing plastic wheels
- rubber damper blocks
- 10 kg load capacity

1KC Carrier

- made of black anodized aluminum
- 4 ball bearing plastic wheels
- 20 kg load capacity

Fixing options

- batten mounting (tube/truss)
- ceiling mounting
- wall mounting with 1Z10 - Wall bracket
- girder / beam fixing with 1Z20 - Beam clamp
- ropes / wires suspension

Main configurations

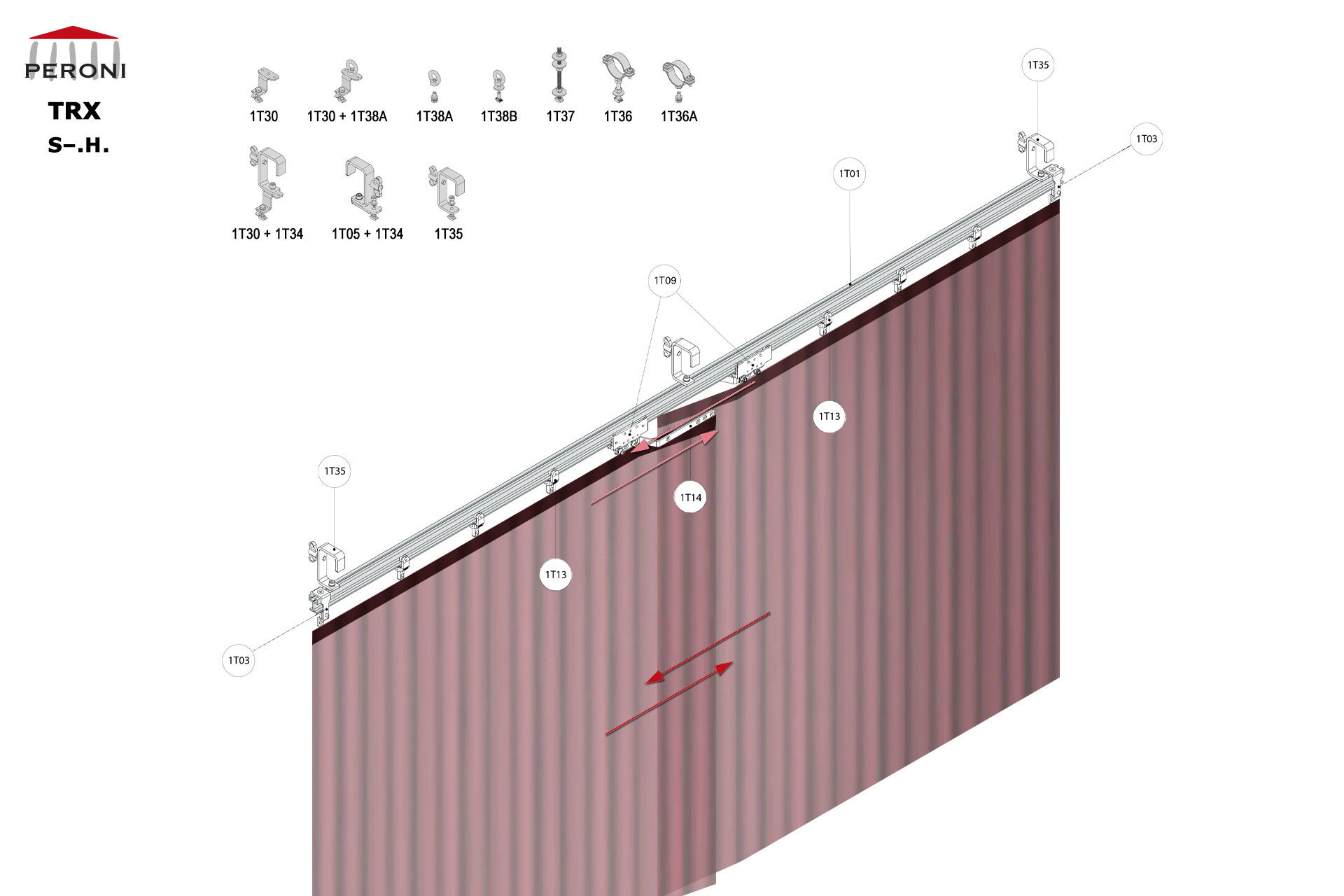

- S. Single rail central opening

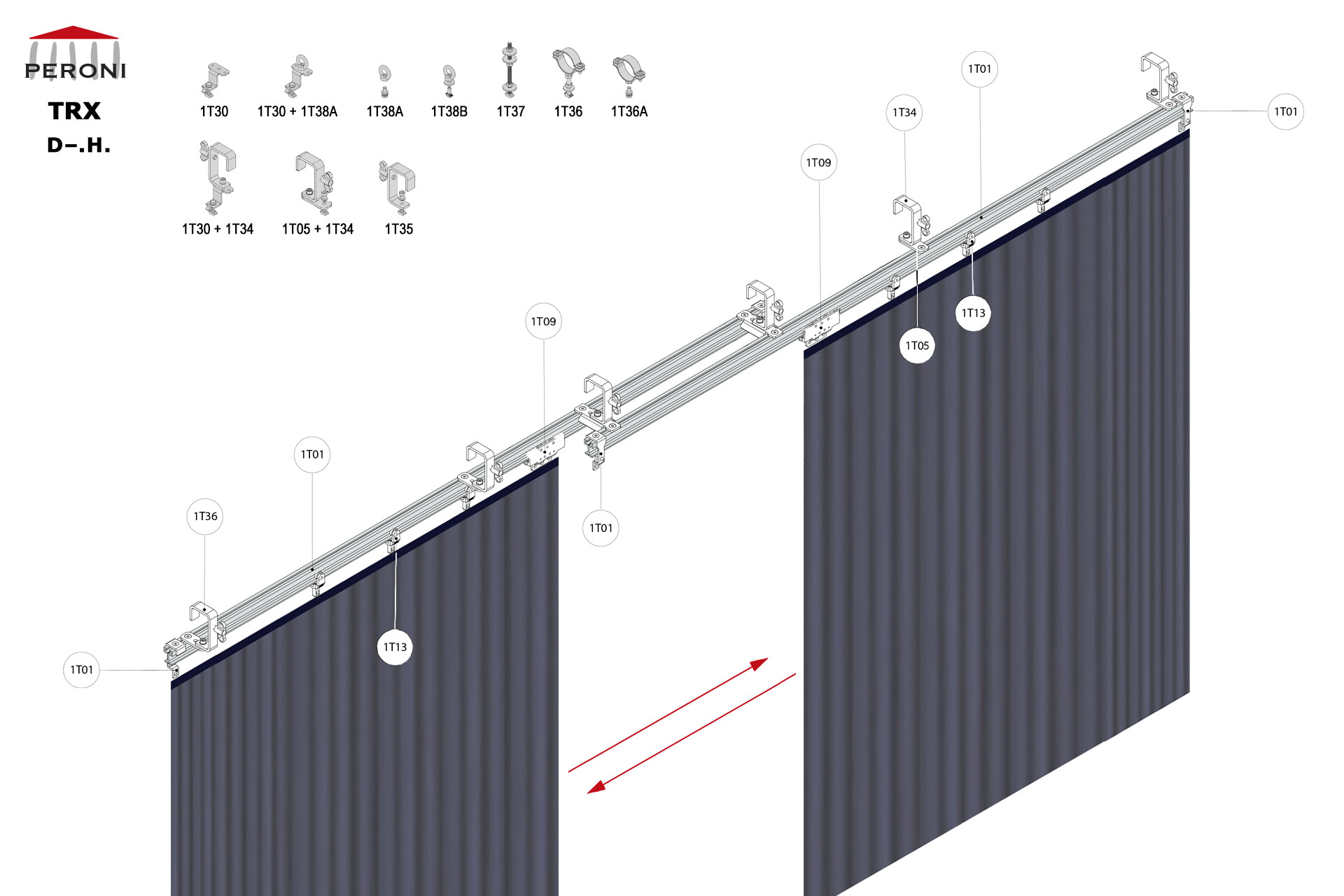

- D. Double rail central opening

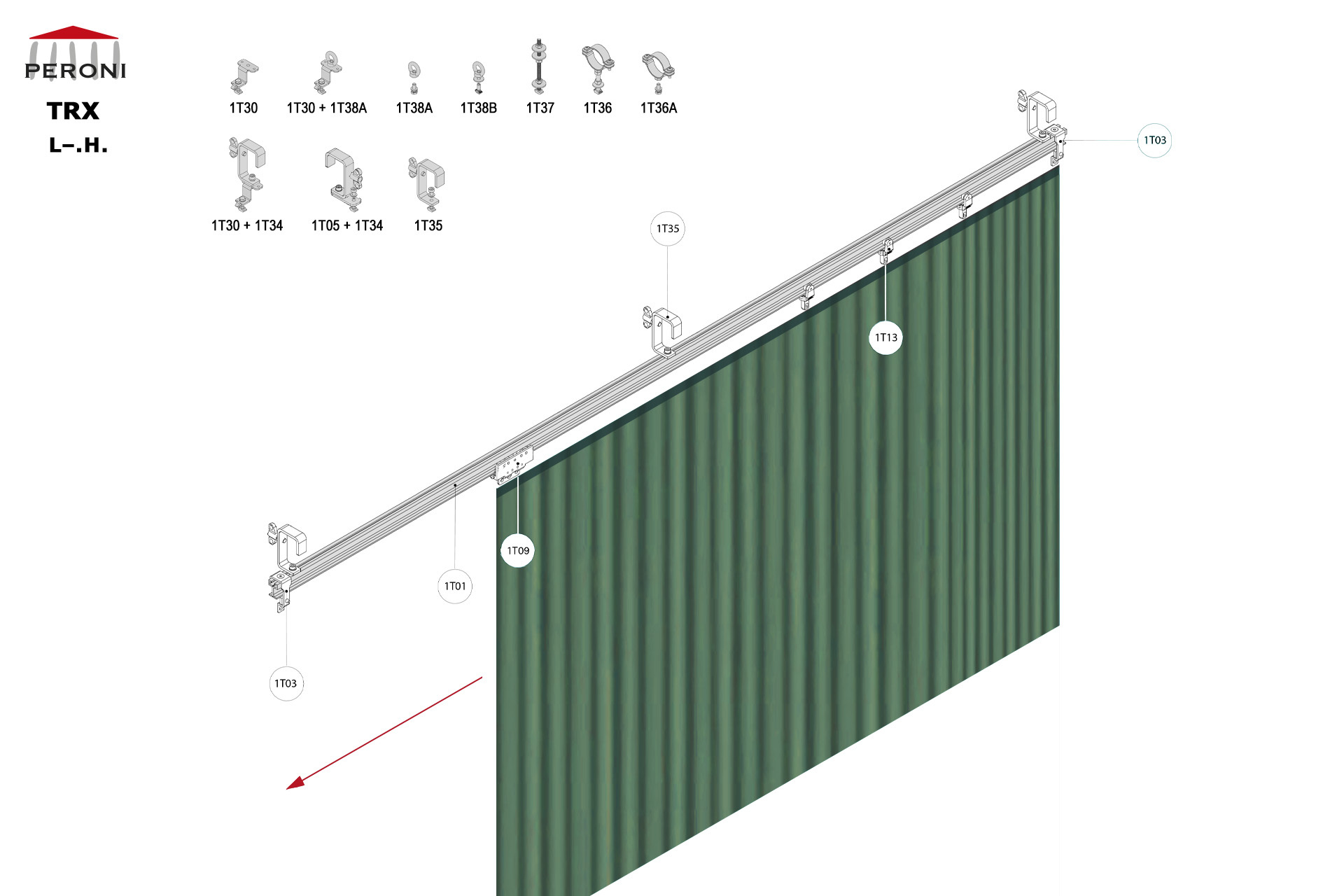

- L. Wipe side opening

Drive system

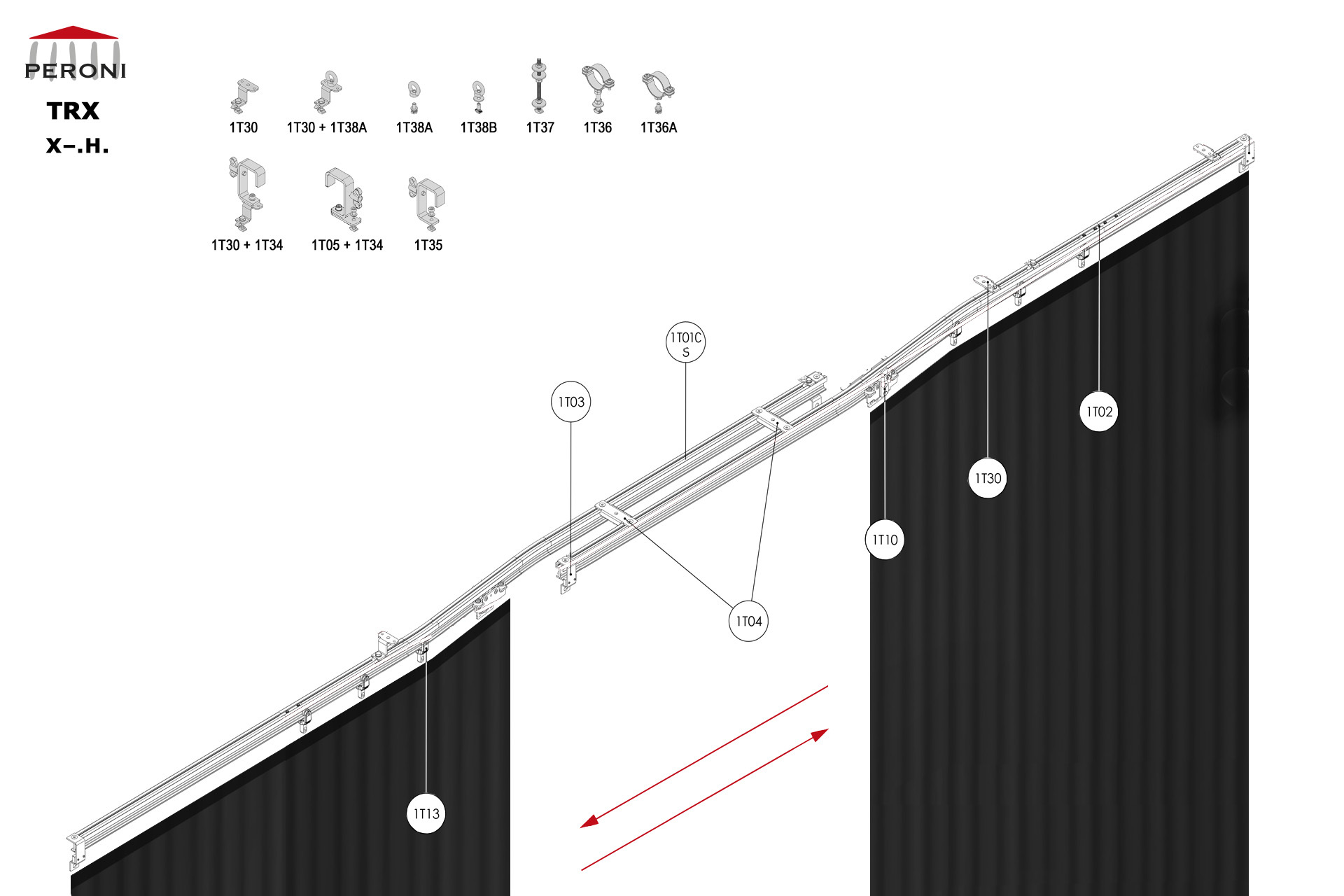

- H. Hand pulled uncorded walk-along
- C. Corded manual*
- M. Motorized* (2DR1 and 2DR2 engines)

Customized solutions can be developed to suit particular needs.
