TRX10



TRX10 - Track system 1T01 - TRX10 Rail profile made of matt black anodized aluminium600 cm bars
View all
Rail and components 1T01 - Straight rail1T02 - Connection set1T02T - Connection set for touring1T03 - End Stop1T04 - Overlap Bridge1T05 - Offset Plate
Carriers 1T10 - Master Carrier1T11 - Master Carrier for side cord operation1T12 - Master Carrier for top cord operation1T13 - Slave Carrier1T14 - Overlap Arms Kit (2 pieces)1T15 - Limit Switch Arm for side cord operation1T16 - Limit Switch Arm for top cord operation
Pulleys 1T20 - Return pulley1T21 - Head double pulley1T22 - Cord guide1T23 - Cord aligner1T24 - Side cord support1Z01 - Adjustable floor pulley
Suspension parts 1T30 - Suspension bracket1T31 - Suspension bracket1T34 - Hook clamp1T35 - Hook clamp for direct track fixing1T36 - Pipe collar1T37 - Studding bar1T38A - Eyenut1T38B - Eyenut + T-slider
Cibeles, ''Colgando del Centro'' Example of arrangement as an area for events of the central passage part of a monumental historic building in Madrid.The project used a TRX10 track system with manual walk along operation ...
... and a Traveler curtain with side opening.The curtain was manufactured in modules with a double-faced vertical fullness.It also performs the functions of Acoustic curtain and Sound barrier curtain.
Teatro Biondo, ''A Personal Fairy Tale'' TRX10 track with semi-ellipse development.The opening is central with double rail and 100 cm overlap, movement with rope and floor pulley.The Traveler curtain was made up with EVT - Light Sceno Poly and 100% vertical fullness.
Application
TRX10 is a professional modular system for the horizontal handling of:
- medium-weight Wipe and Traveler curtains
- cycloramas
- light-weight scenery elements

The perfect solution for stages, studios, trade fairs, conference hall, etc.
Key features
- quick and easy assembly, ideal for tours
- straight, curved and mixed configurations
- silent operation
- great versatility
- extensive range of components
- two motorized options 0,18 kW o 0,37 kW
- tested and highly reliable

Track
- extruded aluminium profile, black anodized finishing
- 946 g/m weight
- 600 cm max bar length
- 200 cm max span
- 50 cm min curve radius

Master Carrier 1T10
- made of black powder coated steel
- 8 ball bearing plastic wheels
- equipaggiabile con diversi bracci accessori
- 30 kg load capacity
Carrier 1T13
- made of high resistance nylon
- 360 swivel attachment
- 2 ball bearing plastic wheels
- rubber damper blocks
- 10 kg load capacity
Carrello 1KC
- made of black anodized aluminum
- 4 ball bearing plastic wheels
- 20 kg load capacity

Fixing options
- batten mounting (tube/truss)
- ceiling mounting
- wall mounting
- girder/beam fixing
- ropes / wires suspension

Main configurations
- S. Single rail central opening
- D. Double rail central opening
- L. Wipe side opening
Drive system
- H. Hand pulled uncorded walk-along
- C. Corded manual*
- M. Motorized* (2DR1 and 2DR2 engines)
Customized solutions can be developed to suit particular needs.

Colour chart

S.H. configuration track S. Straight single rail central openingH. Hand pulled uncorded walk-alongup to 50 cm central overlapComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T10 - Master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitFixing1T30 - Suspension bracket1T35 - Hook clamp + channel nut1T36 - Collar  50 mm + channel nut
Sᴖ.H. configuration track Sᴖ. Curved single rail central openingH. Hand pulled uncorded walk-alongup to 50 cm central overlapComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T10 - Master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitFixing1T30 - Suspension bracket1T35 - Hook clamp + channel nut1T36 - Collar  50 mm + channel nut
S.C. configuration track S. Straight single rail central openingC. Corded manualup to 50 cm central overlapComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T21 - Double pulley1T24 - Side cord support1Z01 - Adjustable floor pulley3E - Poly rope  8 mmFixing1T30 - Suspension bracket1T34 - Hook clamp + bolt1T36 - Collar  50 mm + channel nut
S.M1. configuration track S. Straight single rail central openingM1. Motorized, up to 300 kg curtainup to 50 cm central overlapComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T21 - Double pulley1T24 - Side cord support1T15 - Limit switch arm for 1T11 + 1T501T50 - Limit switch for 1T11 + 1T152DR1-RDS2QEM-7G1-152QE∙M0 - M0 panel board 3E - Poly rope  8 mmFixing1T30 - Suspension bracket1T34 - Hook clamp + bolt1T36 - Collar  50 mm + channel nut
S.M2. configuration track S. Straight single rail central openingM2. Motorized, up to 125 kg curtainup to 50 cm central overlapComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1KS - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T24 - Side cord support1T15 - Limit switch arm for 1T11 + 1T501T50 - Limit switch for 1T11 + 1T152DR2-RDS2QEM-7G1-152QE∙M0 - M0 panel board 3E - Poly rope  8 mmFixing1T30 - Suspension bracket1T34 - Hook clamp + bolt1T36 - Collar  50 mm + channel nut
Sᴖ.C. configuration track Sᴖ. Curved single rail central openingC. Corded manualup to 50 cm central overlapComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1Z01 - Floor pulley3E - Poly rope  8 mmFixing1T31 - Top cord suspension bracket1T34 - Hook clamp + bolt
Sᴖ.M1. configuration track Sᴖ. Curved single rail central openingM1. Motorized, up to 200 kg curtainup to 50 cm central overlapComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm for 1T12+1T52+1T531T52 + 1T53 - Limit switch for 1T12+1T162DR1-RDS2QEM-7G1-152QE∙M0 - M0 panel board 3E - Poly rope  8 mmFixing1T31 - Top cord suspension bracket1T34 - Hook clamp + bolt
Sᴖ.M2. configuration track Sᴖ. Curved single rail central openingM2. Motorized, up to 100 kg curtainup to 50 cm central overlapComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1KS - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runner1T14 - Overlap arms kitMotion control1T20 - Horizontal pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm 1T12+1T52+1T531T52 + 1T53 - Limit switch 1T12+1T162DR2-RDS2QEM-7G1-152QE∙M0 - M0 panel board 3E - Poly rope  8 mmFixing1T31 - Top cord suspension bracket1T34 - Hook clamp + bolt
X.H. configuration track X. Straight split single rail central op.H. Hand pulled uncorded walk-alongup to 100 cm central overlapComponents1T01 - Straight rail1T01C-S - Curved rail for splitting1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T10 - Master carrier1T13 - 2 Wheel runnerFixing1T30 - Suspension bracket1T35 - Hook clamp + channel nut1T36 - Collar  50 mm + channel nut
X.C. configuration track X. Straight split single rail central op.C. Corded manualup to 100 cm central overlapComponents1T01 - Straight rail1T01C-S - Curved rail for splitting1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T24 - Side cord support1Z01 - Floor pulley3E - Poly rope  8 mmFixing1T30 - Suspension bracket1T35 - Hook clamp + channel nut1T36 - Collar  50 mm + channel nut
X.M1. configuration track X. Straight split single rail central op.M1. Motorized, up to 300 kg curtainup to 100 cm central overlapComponents1T01 - Straight rail1T01C-S - Curved rail for splitting1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T24 - Side cord support1T15 - Limit switch arm for 1T11 + 1T501T50 - Limit switch for 1T11 + 1T152DR1-RDS2QEM-7G1-152QE∙M0 - M0 panel board 3E - Poly rope  8 mmFixing1T30 - Suspension bracket1T34 - Hook clamp + bolt1T36 - Collar  50 mm + channel nut
X.M2. configuration track X. Straight split single rail central op.M2. Motorized, up to 125 kg curtainup to 100 cm central overlapComponents1T01 - Straight rail1T01C-S - Curved rail for splitting1T02 - Connection set1T03 - End stop1KS - End stop1T04 - Overlap bridge1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T24 - Side cord support1T15 - Limit switch arm for 1T11 + 1T501T50 - Limit switch for 1T11 + 1T152DR1-RDS2QEM-7G1-152QE∙M0 - M0 panel board 3E - Poly rope  8 mmFixing1T30 - Suspension bracket1T34 - Hook clamp + bolt1T36 - Collar  50 mm + channel nut

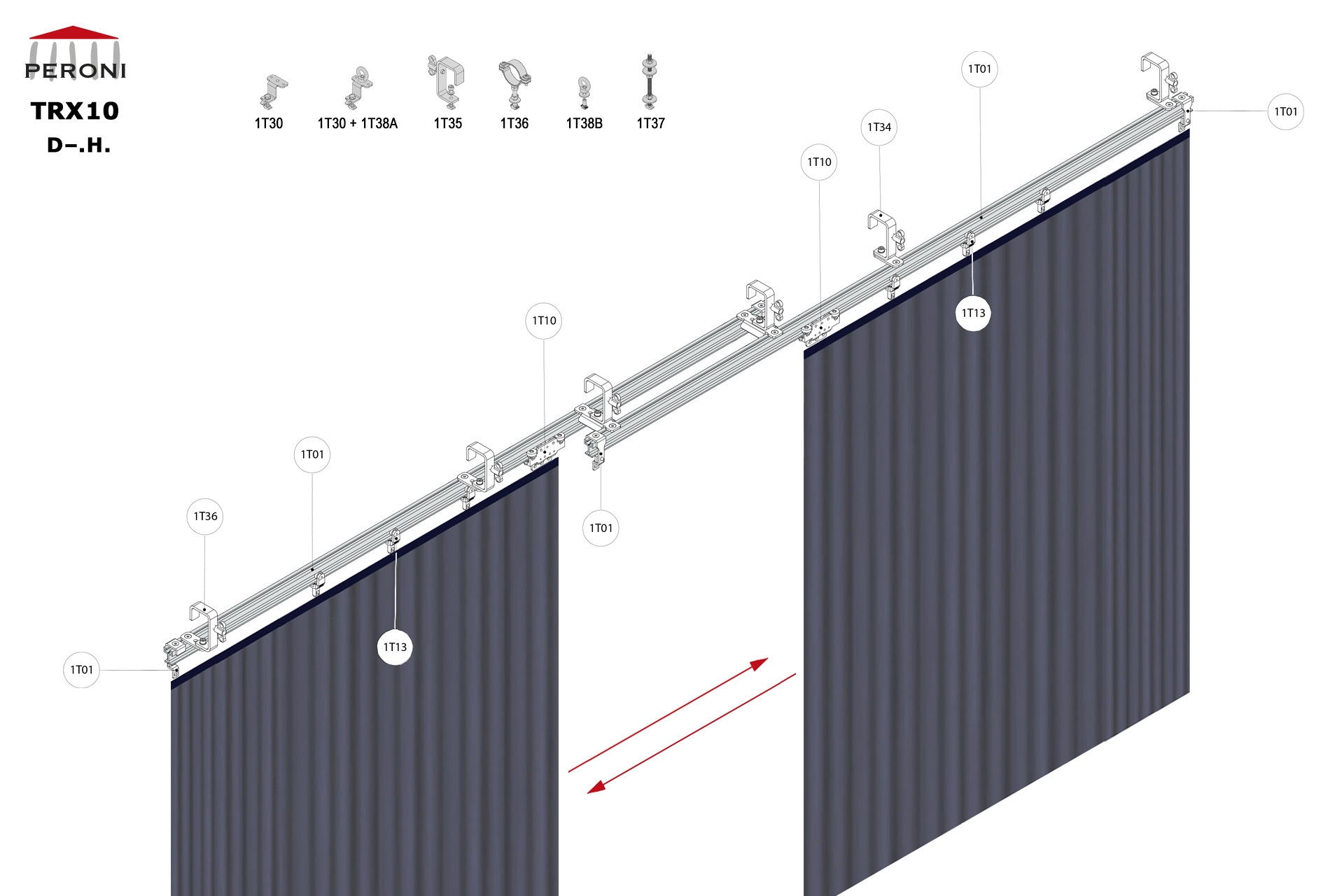

D.H. configuration track D. Straight double rail central openingH. Hand pulled uncorded walk-alongcentral overlap exceeding 50 cmComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T10 - Master carrier1T13 - 2 Wheel runnerFixing1T30 - Suspension bracket1T34 - Hook clamp + bolt + 1T05 - Offset plate 1T34

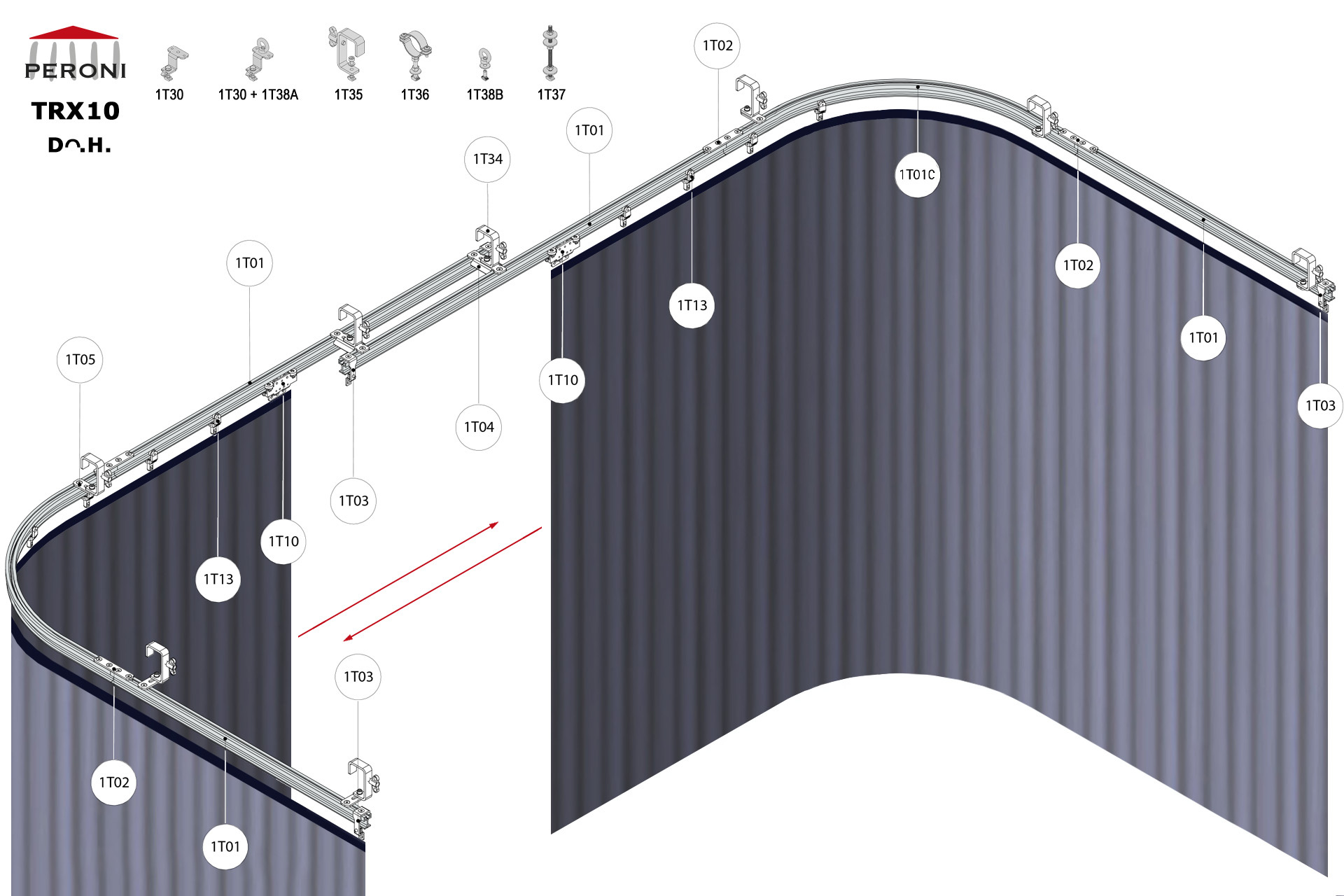

Dᴖ.H. configuration track Dᴖ. Curved double rail central openingH. Hand pulled uncorded walk-alongcentral overlap exceeding 50 cmComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T10 - Master carrier1T13 - 2 Wheel runnerFixing1T30 - Suspension bracket1T34 - Hook clamp + bolt + 1T05 - Offset plate for 1T34
D.C. configuration track D. Straight double rail central openingC. Corded manualcentral overlap exceeding 50 cmComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1Z01 - Floor pulley3E - Poly rope  8 mmFixing1T31 - Top cord suspension bracket1T34 - Hook clamp + bolt
D.M1. configuration track D. Straight double rail central openingM1. Motorized, up to 300 kg curtaincentral overlap exceeding 50 cmComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm for 1T12+1T52+1T531T52 + 1T53 - Limit switch for 1T12+1T162DR1-RDS2QEM-7G1-152QE∙M0 - M0 panel board 3E - Poly rope  8 mmFixing1T31 - Top cord suspension bracket1T34 - Hook clamp + bolt
D.M2. configuration track D. Straight double rail central openingM2. Motorized, up to 125 kg curtaincentral overlap exceeding 50 cmComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1KS - End stop1T04 - Overlap bridge1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm for 1T12+1T52+1T531T52 + 1T53 - Limit switch for 1T12+1T162DR2-RDS2QEM-7G1-152QE∙M0 - M0 panel board 3E - Poly rope  8 mmFixing1T31 - Top cord suspension bracket1T34 - Hook clamp + bolt
Dᴖ.C. configuration track Dᴖ. Curved double rail central openingC. Corded manualcentral overlap exceeding 50 cmComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T04 - Spacer plate1T12 - Top cord master carrier1T13 - 2 wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1Z01 - Floor pulley3E - Poly rope  8 mmFixing1T31 - Top cord suspension bracket1T34 - Hook clamp + bolt
Dᴖ.M1. configuration track Dᴖ. Straight double rail central openingM1. Motorized, up to 200 kg curtaincentral overlap exceeding 50 cmComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T04 - Overlap bridge1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm for 1T12+1T52+1T531T52 + 1T53 - Limit switch for 1T12+1T162DR1-RDS2QEM-7G1-152QE∙M0 - M0 panel board 3E - Poly rope  8 mmFixing1T31 - Top cord suspension bracket1T34 - Hook clamp + bolt
Dᴖ.M2. configuration track Dᴖ. Straight double rail central openingM2. Motorized, up to 100 kg curtaincentral overlap exceeding 50 cmComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1KS - End stop1T04 - Overlap bridge1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm for 1T12+1T52+1T531T52 + 1T53 - Limit switch for 1T12+1T162DR2-RDS2QEM-7G1-152QE∙M0 - M0 panel board 3E - Poly rope  8 mmFixing1T31 - Top cord suspension bracket1T34 - Hook clamp + bolt
L.H. configuration track L. Straight rail side openingH. Hand pulled uncorded walk-alongComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T10 - Master carrier1T13 - 2 Wheel runnerFixing1T30 - Suspension bracket1T35 - Hook clamp + channel nut1T36 - Collar  50 mm + channel nut
Lᴖ.H. configuration track Lᴖ. Curved rail side openingH. Hand pulled uncorded walk-alongComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T10 - Master carrier1T13 - 2 Wheel runnerFixing1T30 - Suspension bracket1T35 - Hook clamp + channel nut1T36 - Collar  50 mm + channel nut
L.C. configuration track L. Straight rail side openingC. Corded manualComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T24 - Side cord support1Z01 - Floor pulley3E - Poly rope  8 mmFixing1T30 - Suspension bracket1T34 - Hook clamp + bolt1T36 - Collar  50 mm + channel nut
L.M1. configuration track L. Straight rail side openingM1. MotorizedComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T24 - Side cord support1T15 - Riscontro finec. per 1T11 + 1T501T50 - Finecorsa per 1T11 + 1T152DR1-RDS2QEM-7G1-152QE∙M0 - M0 panel board 3E - Poly rope  8 mmFixing1T30 - Suspension bracket1T34 - Hook clamp + bolt1T36 - Collar  50 mm + channel nut
L.M2. configuration track L. Straight rail side openingM2. Motorized, up to 125 kg curtainComponents1T01 - Straight rail1T02 - Connection set1T03 - End stop1KS - End stop1T11 - Side cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T24 - Side cord support1T15 - Riscontro finec. per 1T11 + 1T501T50 - Finecorsa per 1T11 + 1T152DR2-RDS2QEM-7G1-152QE∙M0 - M0 panel board 3E - Poly rope  8 mmFixing1T30 - Suspension bracket1T34 - Hook clamp + bolt1T36 - Collar  50 mm + channel nut

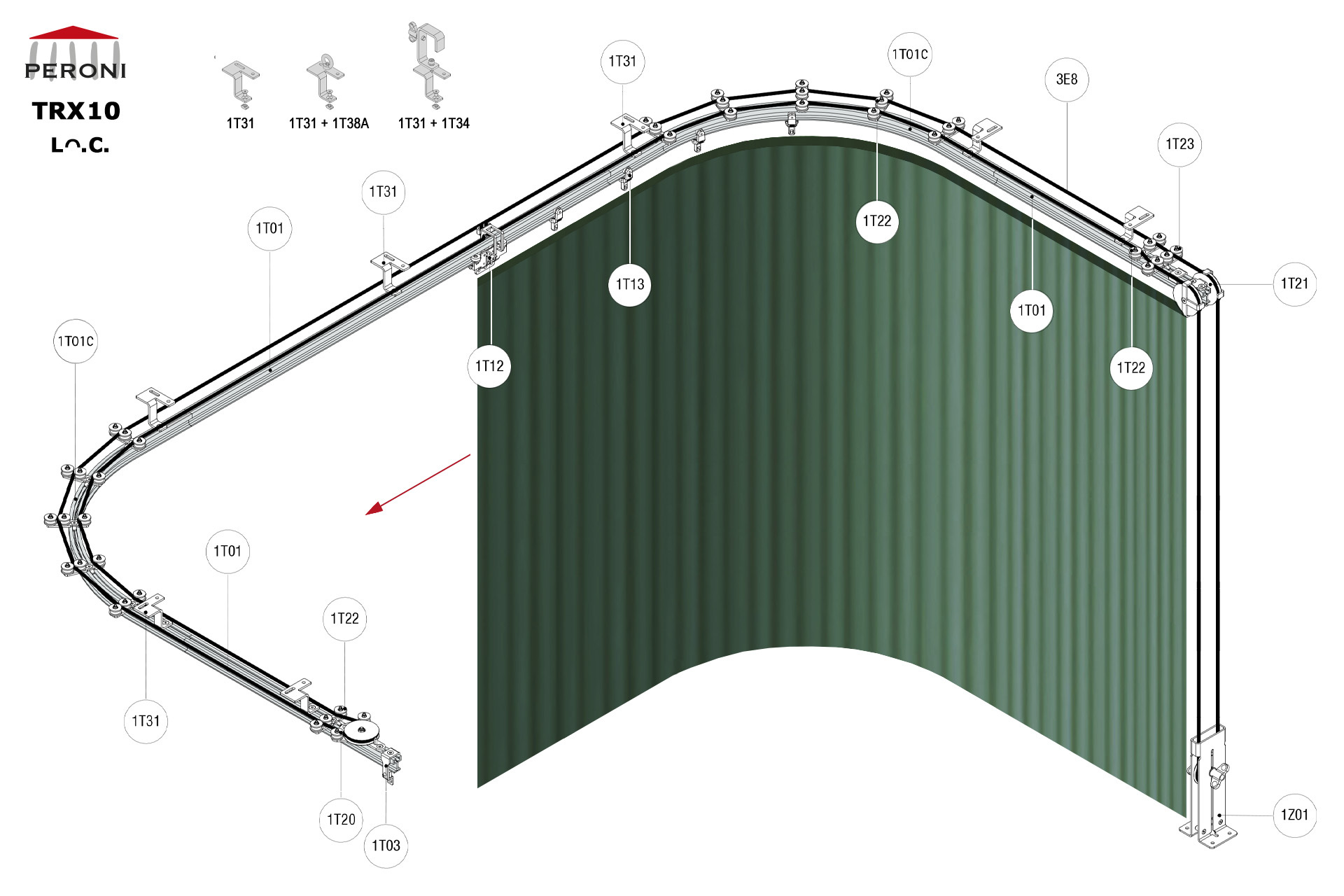

Lᴖ.C. configuration track Lᴖ. Curved rail side openingC. Corded manualComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1Z01 - Floor pulley3E - Poly rope  8 mmFixing1T31 - Top cord suspension bracket1T34 - Hook clamp + bolt
Lᴖ.M1. configuration track Lᴖ. Straight double rail central openingM1. Motorized, up to 200 kg curtainComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T21 - Double pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm for 1T12+1T52+1T531T52 + 1T53 - Limit switch for 1T12+1T162DR1-RDS2QEM-7G1-152QE∙M0 - M0 panel board 3E - Poly rope  8 mmFixing1T31 - Top cord suspension bracket1T34 - Hook clamp + bolt
Lᴖ.M2. configuration track Lᴖ. Straight double rail central openingM2. Motorized, up to 100 kg curtainComponents1T01 - Straight rail1T01C - Curved rail1T02 - Connection set1T03 - End stop1KS - End stop1T12 - Top cord master carrier1T13 - 2 Wheel runnerMotion control1T20 - Horizontal pulley1T22 - Top cord guide1T23 - Double pulley cord aligner1T16 - Limit switch arm for 1T12+1T52+1T531T52 + 1T53 - Limit switch for 1T12+1T162DR2-RDS2QEM-7G1-152QE∙M0 - M0 panel board 3E - Poly rope  8 mmFixing1T31 - Top cord suspension bracket1T34 - Hook clamp + bolt

Video & Documentation

TRX10 motorized track test

Motorized traveler curtain test

TRX10 track test, manual opening with curves

Motorized traveler curtain factory test

57270_4-01_main_components.pdf

57270_3-02_typical_suspending_arrgmts.pdf

57270_4-03_cording_diagrams_.pdf
